25574 - Lawn-Boy 30" Rear-Engine Riding Mower (SN: 400000001 - 499999999) (1974) Part List 1 2 Parts Diagram

30" Rear-Engine Riding Mower

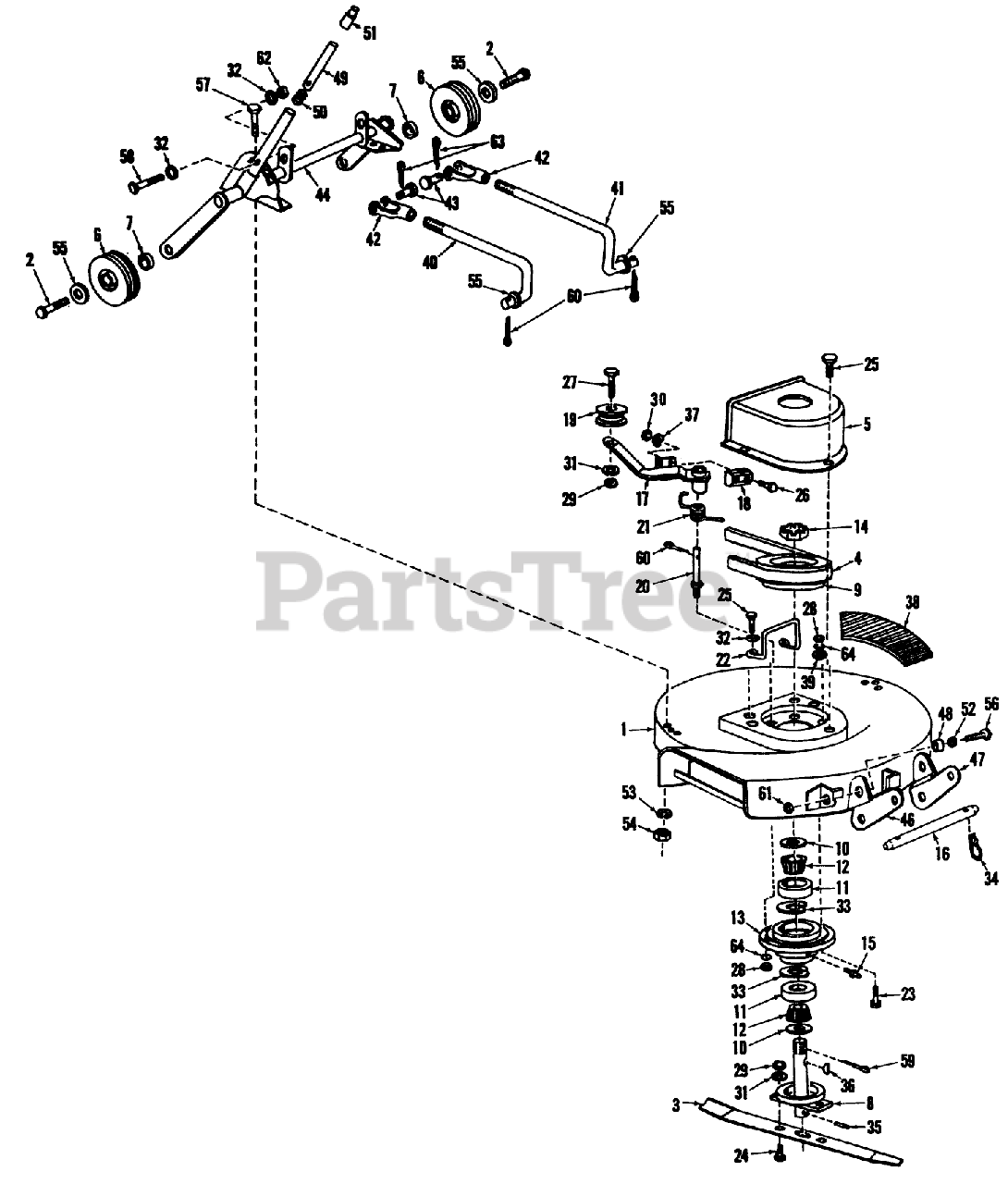

Part List 1 2 Parts Diagram

  • Title

1

Lawn-Boy M25837

Cutter Housing Assembly

$

$

Currently unavailable

2

Lawn-Boy M13435

Wheel Bolt

$

$

Currently unavailable

3

Lawn-Boy M7860

Blade

$

$

Currently unavailable

4

Lawn-Boy M14365

V-Belt-Blade Drive

$

$

Currently unavailable

5

Lawn-Boy M16670

Belt Housing

$

$

Currently unavailable

6

Lawn-Boy M13438

Wheel

$

$

Currently unavailable

7

Lawn-Boy M10934

Wheel Spacer

$

$

Currently unavailable

8

Lawn-Boy M13440

Spindle Assembly

$

$

Currently unavailable

9

Lawn-Boy M13442

Pulley-Blade Spindle

$

$

Currently unavailable

10

Lawn-Boy M7867

Nilos Seal

$

$

Currently unavailable

11

Lawn-Boy M1044

Bearing Cups

$

$

Currently unavailable

12

Lawn-Boy M1140

Bearing Cones

$

$

Currently unavailable

13

Lawn-Boy M13443

Spindle Housing

$

$

Currently unavailable

14

Lawn-Boy M10933

Nut

$

$

Currently unavailable

15

Lawn-Boy M1031

Grease Fitting

$

$

Currently unavailable

16

Lawn-Boy M13444

Hanger Pin

$

$

Currently unavailable

17

Lawn-Boy M13445

Brake Arm Assembly

$

$

Currently unavailable

18

Lawn-Boy M13448

Brake Shoe

$

$

Currently unavailable

19

Lawn-Boy M9114

Idler

$

$

Currently unavailable

20

Lawn-Boy M13449

Brake Mounting Stud

$

$

Currently unavailable

21

Lawn-Boy M23103

Torque Spring

$

$

Currently unavailable

22

Lawn-Boy M13451

Belt Finger

$

$

Currently unavailable

23

5/16-18 x 7/8 Hex Hd. Capscrew

Note: Common Hardware. Purchase locally.

$

$

Not available

24

3/8-16 x 1 Hex Hd. Capscrew-H.T.

Note: Common Hardware. Purchase locally.

$

$

Not available

25

1/4-20 x 1/2 Hex Hd. Capscrew-Pl.

Note: Common Hardware. Purchase locally.

$

$

Not available

26

No. 10-24 x 5/8 Socket Hd. Capscrew

Note: Common Hardware. Purchase locally.

$

$

Not available

27

3/8-16 x 1 3/4 Hex Hd. Capscrew

Note: Common Hardware. Purchase locally.

$

$

Not available

28

5/16-18 Hex Lock Nut

Note: Common Hardware. Purchase locally.

$

$

Not available

29

3/8-16 Hex Nut

Note: Common Hardware. Purchase locally.

$

$

Not available

30

No. 10-24 Hex Nut

Note: Common Hardware. Purchase locally.

$

$

Not available

31

3/8 Lockwashers

Note: Common Hardware. Purchase locally.

$

$

Not available

32

1/4 Flat Washer

Note: Common Hardware. Purchase locally.

$

$

Not available

33

Lawn-Boy M4637

Retaining Rings

$

$

Currently unavailable

34

Lawn-Boy M9678

Spring Clip

$

$

Currently unavailable

35

5/32 x 1 1/2 Roll Pin

Note: Common Hardware. Purchase locally.

$

$

Not available

36

3/16 x 3/4 Woodruff Key

$

$

Not available

37

No. 10 External Shakeproof Lockwashers

Note: Common Hardware. Purchase locally.

$

$

Not available

38

Lawn-Boy M13651

Foot Pad

$

$

Currently unavailable

39

5/16 Flat Washers

Note: Common Hardware. Purchase locally.

$

$

Not available

40

Lawn-Boy M13510

Hanger Rod-R.H.

$

$

Currently unavailable

41

Lawn-Boy M13509

Hanger Rod-L.H.

$

$

Currently unavailable

42

Lawn-Boy M11779

Clevis

$

$

Currently unavailable

43

Lawn-Boy M11780

Clevis Pins

$

$

Currently unavailable

44

Lawn-Boy M26251

Wheel Support Assembly

$

$

Currently unavailable

46

Lawn-Boy M13503

Bellcrank-R.H.

$

$

Currently unavailable

47

Lawn-Boy M13504

Bellcrank-L.H.

$

$

Currently unavailable

48

Lawn-Boy M13559

Sleeve

$

$

Currently unavailable

49

Lawn-Boy M13514

Rod

$

$

Currently unavailable

50

Lawn-Boy M13555

Spring

$

$

Currently unavailable

51

Lawn-Boy M13556

Rubber Tip

$

$

Currently unavailable

52

5/16 Flat Washer

Note: Common Hardware. Purchase locally.

$

$

Not available

53

5/16 Lockwasher

Note: Common Hardware. Purchase locally.

$

$

Not available

54

5/16-18 Hex Nut

Note: Common Hardware. Purchase locally.

$

$

Not available

55

1/2 SAE Flat Washer-Pl.

Note: Common Hardware. Purchase locally.

$

$

Not available

56

3/8-16 x 7/8 Hex Hd. Capscrew

Note: Common Hardware. Purchase locally.

$

$

Not available

57

5/16-18 x 3/4 Hex. Hd. Capscrew

Note: Common Hardware. Purchase locally.

$

$

Not available

58

Lawn-Boy M23629

1/4-20 x 2 Hex Hd. Capscrew-Pl.

$

$

Currently unavailable

59

1/8 x 1 1/2 Cotter Pin-Pl.

Note: Common Hardware. Purchase locally.

$

$

Not available

60

1/8 x 3/4 Cotter Pin-Pl.

Note: Common Hardware. Purchase locally.

$

$

Not available

61

3/8-16 Hex Locknut-Pl.

Note: Common Hardware. Purchase locally.

$

$

Not available

62

1/4-20 Hex Locknut-Pl.

Note: Common Hardware. Purchase locally.

$

$

Not available

63

1/8 x 1 Cotter Pin-Pl.

Note: Common Hardware. Purchase locally.

$

$

Not available

64

1/4 Lockwasher-Pl.

Note: Common Hardware. Purchase locally.

$

$

Not available
