25574 - Lawn-Boy 30" Rear-Engine Riding Mower (SN: 400000001 - 499999999) (1974) Part List 1 Parts Diagram

30" Rear-Engine Riding Mower

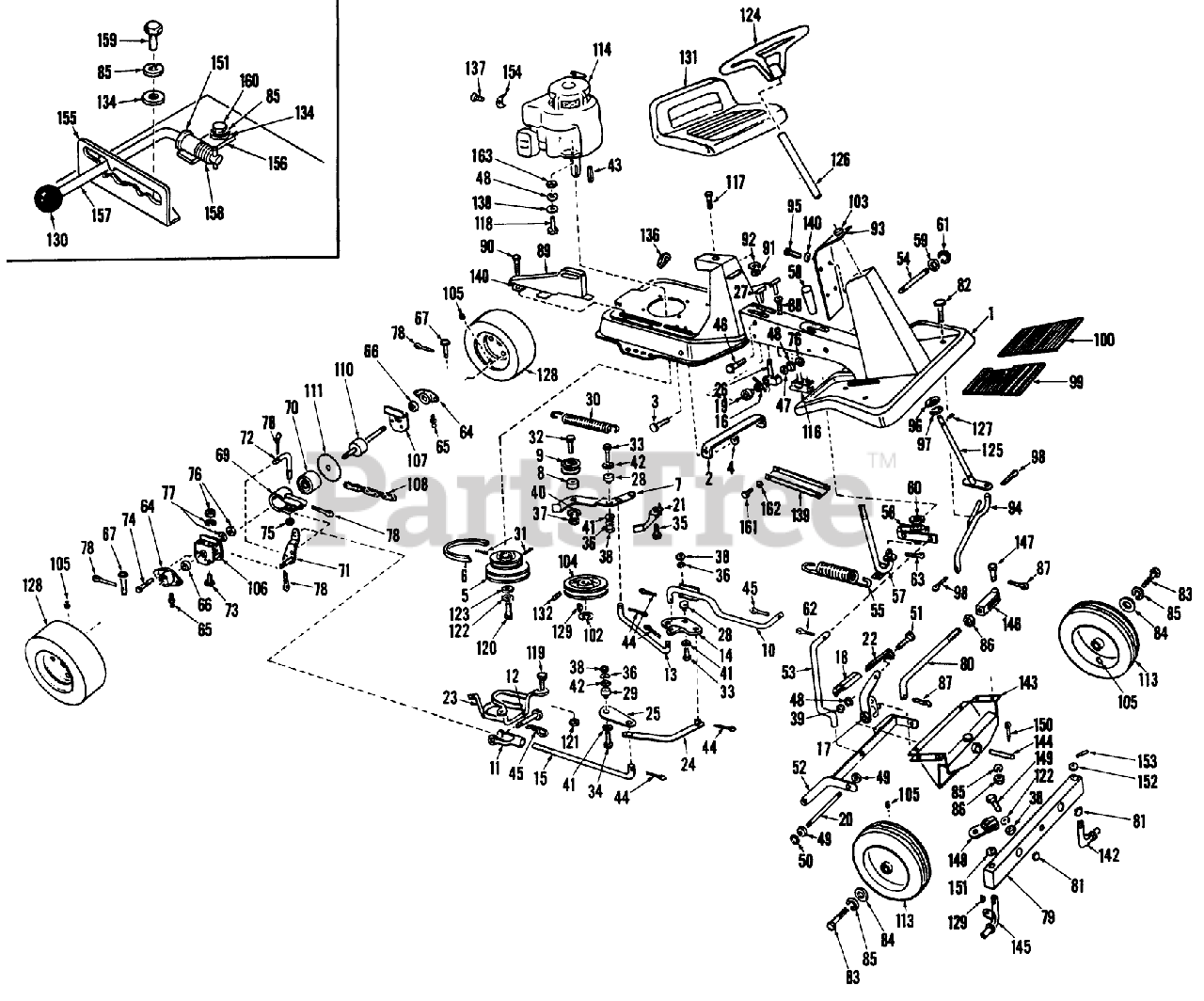

Part List 1 Parts Diagram

  • Title

1

Lawn-Boy M18641

Frame Assembly

$

$

Currently unavailable

2

Lawn-Boy M13376

Brace-Engine Base

$

$

Currently unavailable

3

Lawn-Boy M10888

5/16-18 Wafer Hd. Bolt-Plated

$

$

Currently unavailable

4

5/16-18 Hex Jamnut-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

5

Lawn-Boy M13482

Engle Pulley

$

$

Currently unavailable

6

Lawn-Boy M13487

V-Belt-Traction Drive

$

$

Currently unavailable

7

Lawn-Boy M13485

Idler Arm

$

$

Currently unavailable

8

Lawn-Boy M13486

Spacer

$

$

Currently unavailable

9

Lawn-Boy M11900

Idler Pulley

$

$

Currently unavailable

10

Lawn-Boy M13477

Brake Rod Assembly

$

$

Currently unavailable

11

Lawn-Boy M1711

Clevis

$

$

Currently unavailable

12

Lawn-Boy M1707

Clevis Pin

$

$

Currently unavailable

13

Lawn-Boy M13488

Link-Idler Arm

$

$

Currently unavailable

14

Lawn-Boy M13493

Bellcrank-Plate

$

$

Currently unavailable

15

Lawn-Boy M13491

Clevis Link

$

$

Currently unavailable

16

Lawn-Boy M13474

Torsion Spring

$

$

Currently unavailable

17

Lawn-Boy M13456

Brake Pedal Assembly

$

$

Currently unavailable

18

Lawn-Boy M13476

Brake Pedal Pad

$

$

Currently unavailable

19

Lawn-Boy M13475

Pivot Bushing

$

$

Currently unavailable

20

Lawn-Boy M13473

Pivot Shaft

$

$

Currently unavailable

21

Lawn-Boy M13495

Belt Guard

$

$

Currently unavailable

22

Lawn-Boy M13460

Brake Pedal-Extension

$

$

Currently unavailable

23

Lawn-Boy M23461

Belt Guide Assembly

$

$

Currently unavailable

24

Lawn-Boy M13492

Lever Assembly

$

$

Currently unavailable

25

Lawn-Boy M13489

Pivot Link

$

$

Currently unavailable

26

Lawn-Boy M13496

Latch Handle-Brake

$

$

Currently unavailable

27

Lawn-Boy M12127

Knob-Brake and Throttle

$

$

Currently unavailable

28

Lawn-Boy M6190

Pivot Bushing

$

$

Currently unavailable

29

Lawn-Boy M2043

Pivot Bushing

$

$

Currently unavailable

30

Lawn-Boy M1530

Spring

$

$

Currently unavailable

31

5/16-18 x 5/16 Socket Hd. Setscrew

Note: Common Hardware. Purchase locally.

$

$

Not available

32

1/2-13 x 1 1/2 Hex. Hd. Capscrew-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

33

3/8-16 x 1 1/2 Hex Hd. Capscrew-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

34

3/8-16 x 1 1/4 Hex Hd. Capscrew-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

35

Lawn-Boy M13700

5/16-18 x 1/2 Whiz Lock Screw-Plated

$

$

Currently unavailable

36

3/8 Lockwasher-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

37

1/2-13 Hex Nut-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

38

3/8-16 Hex Nut-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

39

5/16-18 Hex Nut-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

40

1/2 Lockwasher-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

41

Lawn-Boy M2807

Washer

$

$

Currently unavailable

42

3/8 Flat Washer-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

43

1/4 x 1/4 x 2 Key

Note: Common Hardware. Purchase locally.

$

$

Not available

44

1/8 x 3/4 Cotter Pin-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

45

Lawn-Boy M9678

Spring Clip

$

$

Currently unavailable

46

5/16-18 x 1 1/4 Hex Hd. Capscrew-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

47

5/16 Flat Washer-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

48

5/16 Lockwasher-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

49

5/8 SAE Flat Washer-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

50

Lawn-Boy M3917

Retaining Ring

$

$

Currently unavailable

51

Lawn-Boy M10888

5/16-18 Wafer Hd. Bolt-Plated

$

$

Currently unavailable

52

Lawn-Boy M16751

Hanger Arm Assembly

$

$

Currently unavailable

53

Lawn-Boy M13411

Lift Link

$

$

Currently unavailable

54

Lawn-Boy M13412

Lift Pivot Shaft

$

$

Currently unavailable

55

Lawn-Boy M13413

Mower Belt Tension Spring

$

$

Currently unavailable

56

Lawn-Boy M13414

Bracket Assembly-Lift Handle

$

$

Currently unavailable

57

Lawn-Boy M13417

Lift Handle Assembly

$

$

Currently unavailable

58

Lawn-Boy M11953

Handle

$

$

Currently unavailable

59

Lawn-Boy M13235

Washer

$

$

Currently unavailable

60

1/2 SAE Flat Washer-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

61

Lawn-Boy M11704

Retaining Ring

$

$

Currently unavailable

62

1/8 x 3/4 Cotter Pin-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

63

1/8 x 1 Cotter Pin-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

64

Lawn-Boy M3501

Clamp Plate

$

$

Currently unavailable

65

Lawn-Boy M3041

Grease Fitting

$

$

Currently unavailable

66

Lawn-Boy M3502

Bearing

$

$

Currently unavailable

67

Lawn-Boy M3019

Clevis Pin

$

$

Currently unavailable

69

Lawn-Boy M13395

Brake Lining Assembly

$

$

Currently unavailable

70

Lawn-Boy M13393

Brake Drum

$

$

Currently unavailable

71

Lawn-Boy M13399

Brake Lever and Shaft Assembly

$

$

Currently unavailable

72

Lawn-Boy M11996

Brake Adjusting Link

$

$

Currently unavailable

73

Lawn-Boy M10888

5/16-18 Wafer Hd. Bolt-Plated

$

$

Currently unavailable

74

5/16-18 x 3/4 Hex Hd. Capscrew-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

75

5/16-18 Hex Locknut-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

76

5/16-18 Hex Nut-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

77

5/16 Lockwasher-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

78

1/8 x 3/4 Cotter Pin-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

79

Lawn-Boy M14145

Front Axle Assembly

$

$

Currently unavailable

80

Lawn-Boy M16709

Steering Tie Rod

$

$

Currently unavailable

81

Lawn-Boy M13378

Plug Button

$

$

Currently unavailable

82

Lawn-Boy M10888

5/16-18 Wafer Hd. Bolt-Plated

$

$

Currently unavailable

83

Lawn-Boy M4360

5/16-18 x 7/8 Hex Hd. Capscrew-Nylock

$

$

Currently unavailable

84

Lawn-Boy M4361

Washer

$

$

Currently unavailable

85

5/16 Lockwasher-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

86

5/16 Hex Nut-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

87

1/8 x 3/4 Cotter Pin-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

88

Lawn-Boy M13427

8-32 x 1/2 Hex Hd. Capscrew-Plated

$

$

Currently unavailable

89

Lawn-Boy M13406

Chain Guard Assembly

$

$

Currently unavailable

90

1/4-20 x 1/2 Hex Hd. Capscrew-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

91

1/2-13 Hex Nut-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

92

1/2 Lockwasher-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

93

Lawn-Boy M13384

Steering Panel Assembly

$

$

Currently unavailable

94

Lawn-Boy M16724

Steering Link

$

$

Currently unavailable

95

1/4-20 x 3/4 Hex Hd. Capscrew

Note: Common Hardware. Purchase locally.

$

$

Not available

96

Lawn-Boy M13814

Washer

$

$

Currently unavailable

97

Lawn-Boy M1042

Retaining Ring

$

$

Currently unavailable

98

1/8 x 3/4 Cotter Pin-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

99

Lawn-Boy M13652

Foot Pad-R.H.

$

$

Currently unavailable

100

Lawn-Boy M13653

Foot Pad-L.H.

$

$

Currently unavailable

102

Lawn-Boy M3917

Retaining Ring

$

$

Currently unavailable

103

Lawn-Boy M4959

Flanged Bushing

$

$

Currently unavailable

104

Lawn-Boy M11061

Input Pulley

$

$

Currently unavailable

105

Lawn-Boy M3823

Valve Cap

$

$

Currently unavailable

106

Lawn-Boy M13501

Clamp and Sleeve Assembly

$

$

Currently unavailable

107

Lawn-Boy M13497

Bearing Clamp Bracket

$

$

Currently unavailable

108

Lawn-Boy M14497

Chain

$

$

Currently unavailable

110

Lawn-Boy M13610

Differential

$

$

Currently unavailable

111

Lawn-Boy M12590

Sprocket

$

$

Currently unavailable

113

Lawn-Boy M13428

Wheel Tire Assembly

$

$

Currently unavailable

114

Lawn-Boy M28995

Engine-5 H.P. B S Model 13092, Type 0207-01

$

$

Currently unavailable

116

Lawn-Boy M13525

Throttle Clamp Cable Ass-y.

$

$

Currently unavailable

117

Lawn-Boy M11406

1/2-13 x 1 Short Neck Carriage Bolt

$

$

Currently unavailable

118

5/16-18 x 1 1/2 Hex Hd. Capscrew-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

119

5/16-18 x 3/4 Hex Hd. Capscrew-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

120

Lawn-Boy M7671

3/8-24 x 3/4 Nylock Capscrew

$

$

Currently unavailable

121

5/16-18 Hex Nut-Plated

Note: Common Hardware. Purchase locally.

$

$

Not available

122

3/8 Lockwasher

Note: Common Hardware. Purchase locally.

$

$

Not available

123

Lawn-Boy M2807

Washer

$

$

Currently unavailable

124

Lawn-Boy M25663

Steering Wheel

$

$

Currently unavailable

125

Lawn-Boy M16720

Steering Shaft Assembly

$

$

Currently unavailable

126

Lawn-Boy M13386

Steering Column Tube

$

$

Currently unavailable

127

1/4 x 1 Roll Pin

Note: Common Hardware. Purchase locally.

$

$

Not available

128

Lawn-Boy M25858

Wheel and Tire Assembly

$

$

Currently unavailable

129

3/16 x 3/4 Woodruff Key

Note: Common Hardware. Purchase locally.

$

$

Not available

130

Lawn-Boy M1708

Knob

$

$

Currently unavailable

131

Lawn-Boy M23381

Seat Assembly

$

$

Currently unavailable

132

1/4-20 x 1/4 Socket Setscrew

Note: Common Hardware. Purchase locally.

$

$

Not available

134

5/16 Flat Washer

Note: Common Hardware. Purchase locally.

$

$

Not available

136

Lawn-Boy M13699

Cable Clamp

$

$

Currently unavailable

137

Lawn-Boy M6905

No. 10-32 x 5/8 Hex Screw

$

$

Currently unavailable

138

5/16 Flatwasher

Note: Common Hardware. Purchase locally.

$

$

Not available

139

Lawn-Boy M16755

Channel Brace Assembly

$

$

Currently unavailable

140

1/4 Spring Lockwasher-Pl.

Note: Common Hardware. Purchase locally.

$

$

Not available

141

1/4-20 x 1/2 Hex. Capscrew-Pl.

Note: Common Hardware. Purchase locally.

$

$

Not available

142

Lawn-Boy M16713

Spindle Ass-y.-L.H.

$

$

Currently unavailable

143

Lawn-Boy M18753

Bracket-Foot Rest Assembly

$

$

Currently unavailable

144

Lawn-Boy M16759

Pivot Pin

$

$

Currently unavailable

145

Lawn-Boy M16712

Spindle Ass-y.-R.H.

$

$

Currently unavailable

146

Lawn-Boy M1711

Clevis

$

$

Currently unavailable

147

Lawn-Boy M1707

Clevis Pin

$

$

Currently unavailable

148

Lawn-Boy M14619

Steering Arm

$

$

Currently unavailable

149

3/8-16 x 2 Hex. Capscrew

Note: Common Hardware. Purchase locally.

$

$

Not available

150

3/16 x 1 3/4 Cotter Pin-Pl.

Note: Common Hardware. Purchase locally.

$

$

Not available

151

3/8 SAE Flatwasher-Pl.

Note: Common Hardware. Purchase locally.

$

$

Not available

152

5/8 SAE Flatwasher-Pl.

Note: Common Hardware. Purchase locally.

$

$

Not available

153

3/16 x 1 Roll Pin

Note: Common Hardware. Purchase locally.

$

$

Not available

154

Lawn-Boy M6904

Throttle Clamp

$

$

Currently unavailable

155

Lawn-Boy M26216

Shift Index Plate

$

$

Currently unavailable

156

Lawn-Boy M23699

Shift Rod Plate Assembly

$

$

Currently unavailable

157

Lawn-Boy M23701

Shift rod

$

$

Currently unavailable

158

Lawn-Boy M11676

Spring

$

$

Currently unavailable

159

Lawn-Boy M23705

Self Tapping Screw

$

$

Currently unavailable

160

5/16-24 x 5/8 Hex Hd. Capscrew

Note: Common Hardware. Purchase locally.

$

$

Not available

161

1/4-20 x 1/2 Cap Screw

Note: Common Hardware. Purchase locally.

$

$

Not available

162

1/4 Lockwasher

Note: Common Hardware. Purchase locally.

$

$

Not available

163

5/16 x 18 Hex. Cone Locknut

Note: Common Hardware. Purchase locally.

$

$

Not available
