255707-0101-01 - Briggs & Stratton Vertical Engine Elect Parts Diagram

Vertical Engine

Elect Parts Diagram

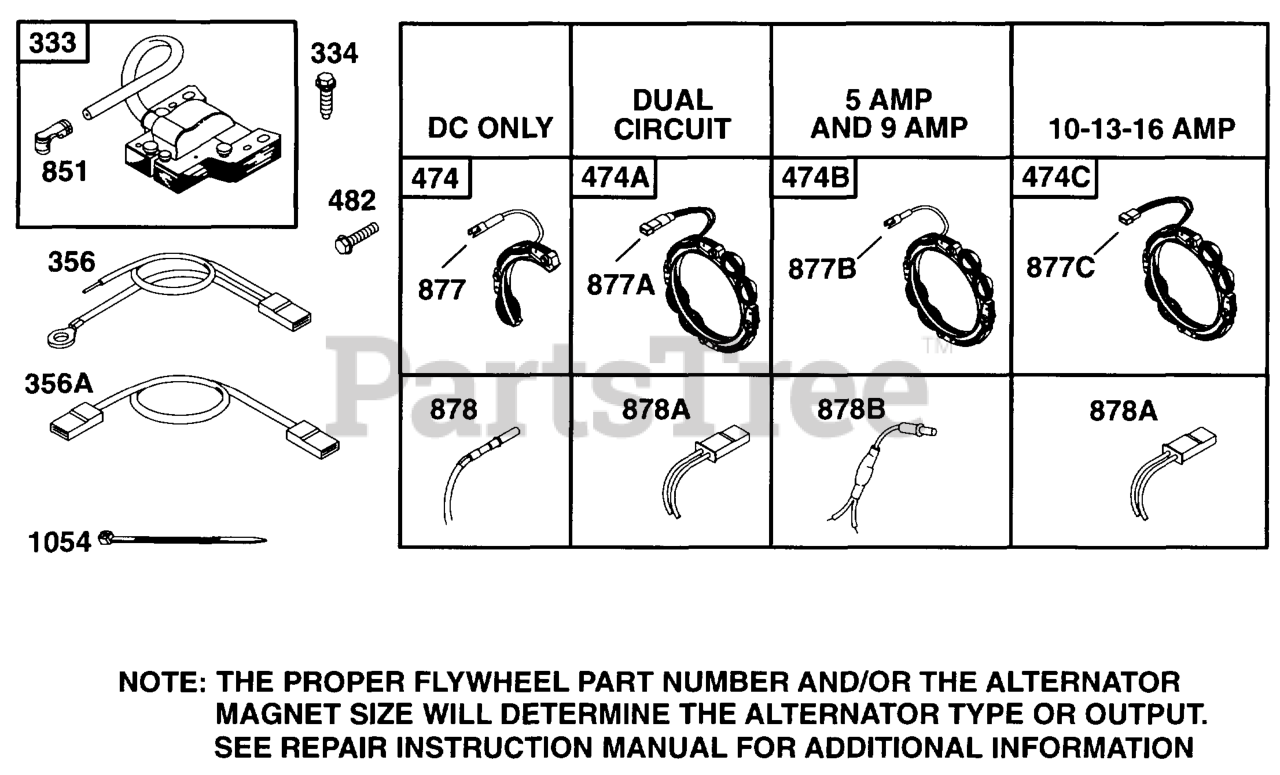

  • Title

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw, Hex Wash Hea
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

474C

Briggs & Stratton 393295

Stator, Alternator
(Superseded to 592830)

$101.99

$

In Stock, Qty 20+

0

474A

Briggs & Stratton 393474

Stator, Alternator (Dual-Circuit)
(Superseded to 592831)

$101.99

$

In Stock, Qty 8

0

474B

Briggs & Stratton 392595

Stator, Alternator (Tri Circuit, 9Amp Regulated)
(Superseded to 592829)

$102.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 391529

Stator, Alternator (Dc Only)
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877B

Briggs & Stratton 393537

Alternator Connecto (Tri Circuit & 9amp)

$

$

Not available

877A

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$20.99

$

In Stock, only 1 left!

0

877C

Briggs & Stratton 399916

Alternator Connecto (Regulated-16 Amp)

$12.99

$

Usually ships in 2-12 days

0

877

Briggs & Stratton 393814

Alternator Connecto (Dc Only)

$18.99

$

In Stock, only 2 left!

0

878A

Briggs & Stratton 393362

Harness, Alternator (Dual Circuit)
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0

878B

Briggs & Stratton 392606

Harness Assy (Tri-Circuit)
(Superseded to 691955)

$69.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 393422

Socket/Wire Assy (Dc Only)
(Superseded to 692306)

$17.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0
