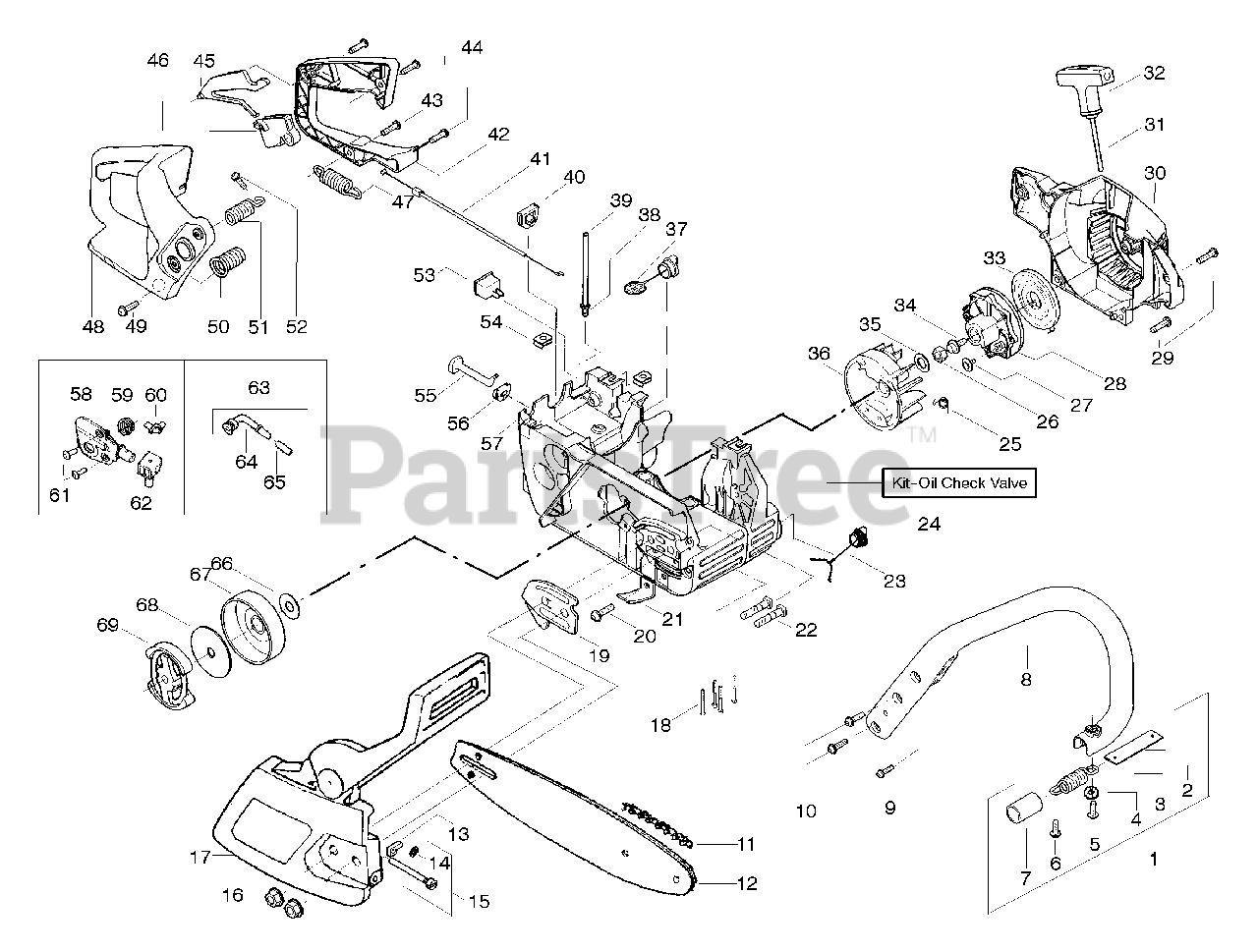

2555 - Poulan Chainsaw Handle, Chassis, And Bar Assembly Parts Diagram

Chainsaw

Handle, Chassis, And Bar Assembly Parts Diagram

  • Title
1

Poulan 530059667

Assy.-Isolator

$

$

Not available

2

Poulan 530047608

Limiter Strap
(Superseded to 530037009)

$

$

Not available

3

Poulan 530059668

Spring-Isolator
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

4

$4.99

$

In Stock, only 4 left!

0

$

$

Not available

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 530036142

Sleeve-AV Spring

$

$

Not available

8

Poulan 530047583

Front Handle
(Superseded to 545048001)

$

$

Not available

$6.49

$

In Stock, Qty 8

0

10

$6.49

$

In Stock, Qty 16

0

11

Poulan 952051338

Chain-18"
(Superseded to 581562301)

$22.99

$

In Stock, only 1 left!

0

12

$

$

Not available

13

Poulan 530015826

Pin Bar Adjust

$4.99

$

In Stock, Qty 20+

0

14

Poulan 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

15

Poulan 530069611

Kit-Bar Adj.

Note: (incl.13,14)

$9.49

$

In Stock, Qty 13

0

16

Poulan 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 10

0

17

Poulan 530057447

Assy-Chain Brake

$

$

Not available

18

$6.49

$

In Stock, Qty 10

0

19

Poulan 530038238

Plate-Bar Mounting

$

$

Not available

20

$6.49

$

In Stock, Qty 16

0

21

Poulan 530029850

Chain Catcher

$6.49

$

In Stock, only 3 left!

0

22

Poulan 530016133

Bolt-Bar

$6.49

$

In Stock, only 2 left!

0

23

Poulan 530057236

Oil Cap Ass'y.

$

$

Not available

24

Poulan 530071666

Kit-Oil Check Valve

$

$

Not available

25

Poulan 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

26

Poulan 530016134

Nut-Flywheel

$6.49

$

In Stock, only 1 left!

0

27

$6.49

$

In Stock, only 1 left!

0

28

Poulan 530037817

Starter Pulley
(Superseded to 545034301)

$

$

Not available

29

$6.49

$

In Stock, Qty 20+

0

30

Poulan 530057444

Fan Housing

$20.99

$

Usually ships in 3-10 days

0

31

Poulan 530069232

Kit-Rope

$7.49

$

In Stock, Qty 20+

0

32

Poulan 530037485

Starter Handle
(Superseded to 530056402)

$6.49

$

In Stock, only 1 left!

0

33

Poulan 530027531

Recoil Spring
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

34

$6.49

$

In Stock, Qty 7

0

35

Poulan 530015127

Washer-Flywheel

$6.49

$

In Stock, only 2 left!

0

36

Poulan 530039209

Assy-Flywheel
(Superseded to 530063575)

$

$

Not available

37

Poulan 530047192

Fuel Cap Ass'y.
(Superseded to 580940901)

$7.99

$

In Stock, only 3 left!

0

38

Poulan 530023877

Fitting-fuel line

$5.99

$

In Stock, Qty 18

0

39

Poulan 530069216

Kit-Fuel line (large)

$11.99

$

In Stock, Qty 20+

0

40

Poulan 530047631

Grommet-Cable

$2.49

$

In Stock, only 2 left!

0

41

Poulan 530047602

Cable-Throttle

$

$

Not available

42

Poulan 530047581

Cover-Rear Handle

$4.99

$

Usually ships in 3-10 days

0

43

$6.49

$

In Stock, only 3 left!

0

44

$6.49

$

In Stock, only 2 left!

0

45

Poulan 530036098

Throttle Lockout

$

$

Not available

46

Poulan 530036097

Trigger-Throttle

$5.99

$

In Stock, only 3 left!

0

47

Poulan 530059668

Spring-Isolator
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

48

Poulan 530047582

Handle-Rear

$15.99

$

Usually ships in 3-10 days

0

49

Screw

Note: Refer to "Service Reference"

$

$

Not available

50

Assy. Isolator-lower

Note: Refer to "Service Reference"

$

$

Not available

51

Poulan 530071958-01

Kit-Isolator (Upper)
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

52

$4.99

$

In Stock, only 3 left!

0

53

Poulan 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

54

Poulan 530015922

Nut-"U"-Type

$6.49

$

In Stock, Qty 5

0

55

Poulan 530047605

Knob-Choke

$4.99

$

In Stock, Qty 7

0

56

Poulan 530049005

Grommet-Knob

$

$

Not available

57

Poulan 530056597

Assy-Chassis

Note: (Incl. 22,23,37 filter & fuel lines)

$

$

Not available

58

Poulan 530071259

Kit-Oil Pump

Note: (incl. 59,60,62)

$

$

Not available

59

Poulan 530037820

Gear-Worm Spring

$6.49

$

In Stock, only 3 left!

0

60

Poulan 530049477

Elbow-Oil Pickup

$4.99

$

In Stock, only 3 left!

0

61

$4.99

$

In Stock, only 2 left!

0

62

Poulan 530019206

Seal Block

$6.49

$

Usually ships in 3-10 days

0

63

Poulan 530047663

Assy-Oil Pick-up

Note: (Incl. 64-65)

$6.99

$

In Stock, Qty 5

0

64

Poulan 530038373

Pick-up Oiler

$4.99

$

Usually ships in 3-10 days

0

65

Poulan 530056533

Oil Filter

$6.49

$

In Stock, only 2 left!

0

66

Poulan 530015907

Washer-Thrust

$

$

Not available

67

Poulan 530047061

Assy.-Clutch Drum w/bearing

$17.99

$

In Stock, Qty 5

0

68

Poulan 530015611

Washer-Clutch

$6.49

$

In Stock, only 2 left!

0

69

Poulan 530014949

Assy. Clutch

$22.99

$

In Stock, only 1 left!

0
