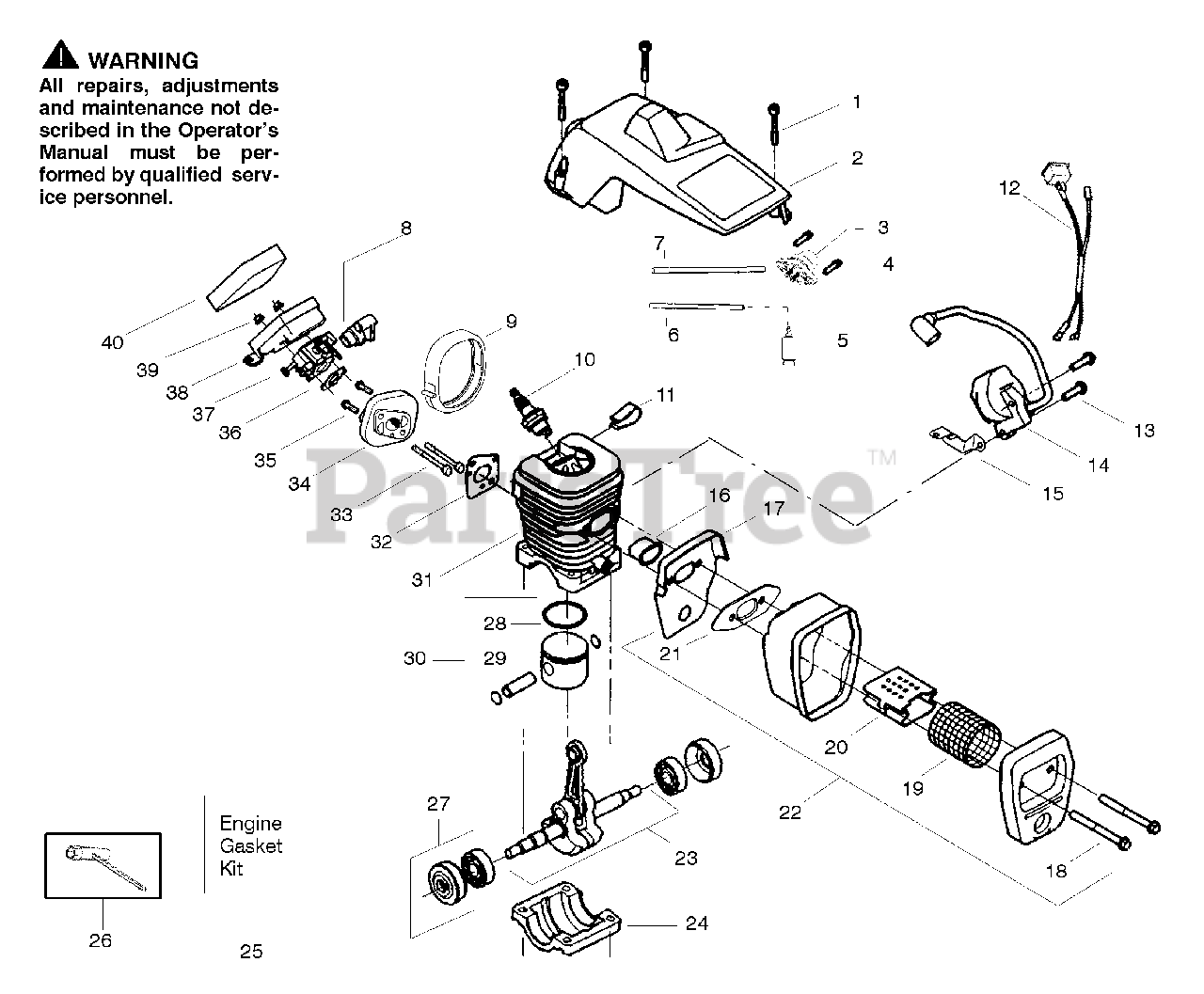

2555 - Poulan Chainsaw Engine Assembly Parts Diagram

Chainsaw

Engine Assembly Parts Diagram

  • Title

1

Poulan 530016153

Screw

$6.49

$

In Stock, only 2 left!

0

2

Poulan 530047578

Shield-Cylinder

$

$

Not available

3

Poulan 530071835

Kit-Purge Bulb

Note: (incl.#4)

$11.99

$

In Stock, Qty 16

0

4

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

5

Poulan 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 20+

0

6

Poulan 530069247

Kit-Line Purge/Carb. (Small Dia)

$7.99

$

In Stock, Qty 18

0

7

Poulan 530069216

Kit-Line Purge/Tank (large line)

$11.99

$

In Stock, Qty 20+

0

8

Poulan 530035526

Grommet-Carb Adjust.

$

$

Not available

9

Poulan 530054144

Seal-Carb Adapter

$

$

Not available

10

Poulan 952030150

Spark Plug (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

11

Poulan 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 530049117

Assy-Wire Harness

Note: (includes switch)

$

$

Not available

13

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

14

Poulan 530039198

Module-Ignition

$56.99

$

In Stock, only 1 left!

0

15

Poulan 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 530037652

Insulator-Heat

$

$

Not available

17

Poulan 530049870

Back Plate-Muffler

$6.49

$

Usually ships in 3-10 days

0

18

Poulan 530016132

Screw

$6.49

$

In Stock, Qty 10

0

19

Poulan 530036103

Screen-Spark

$

$

Not available

20

Poulan 530037813

Diffuser-Muffler

$4.99

$

In Stock, only 1 left!

0

21

Poulan 530069608

Gasket-Muffler

$8.99

$

In Stock, Qty 15

0

22

Poulan 530047207

Assy-Muffler
(Superseded to 530071904)

Note: (Incl. 17-21)

$20.99

$

Usually ships in 3-10 days

0

23

Poulan 530047062

Assy-Crankshaft
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

24

Poulan 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

25

Poulan 530069608

Kit-Engine Gasket

Note: (incl. 36,32,21)

$8.99

$

In Stock, Qty 15

0

26

Poulan 530031163

Scrench

$9.99

$

In Stock, Qty 12

0

27

Poulan 530056363

Assy-Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

28

Poulan 530038729

Ring-Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 1 left!

0

29

Poulan 530015697

Retainer - Piston Pin

$6.49

$

In Stock, Qty 6

0

30

Poulan 530071408

Kit-Piston -

Note: (incl. 28-29)

$

$

Not available

31

Poulan 530071412

Kit-Cylinder
(Superseded to 530012550)

$51.99

$

Usually ships in 3-10 days

0

32

Poulan 530069608

Gasket-Carb. Adapter

$8.99

$

In Stock, Qty 15

0

33

Poulan 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

34

Poulan 530049700

Adapter-Carb.

$10.99

$

In Stock, only 1 left!

0

35

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

36

Poulan 530069608

Carb. Gasket

$8.99

$

In Stock, Qty 15

0

37

Poulan 530071621

Kit-Carburetor (WT-625)

$

$

Not available

38

Poulan 530047604

Housing-Air Filter

$

$

Not available

39

Poulan 530016101

Nut

$6.49

$

In Stock, only 2 left!

0

40

Poulan 530037793

Air Filter - Foam

$4.99

$

In Stock, Qty 6

0

Poulan 530163693

Manual

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

Poulan 530057267

Decal-Inst.

Note: Not Shown

$

$

Not available
