25545 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000001 - 324999999) (2024) Tank Plumbing Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

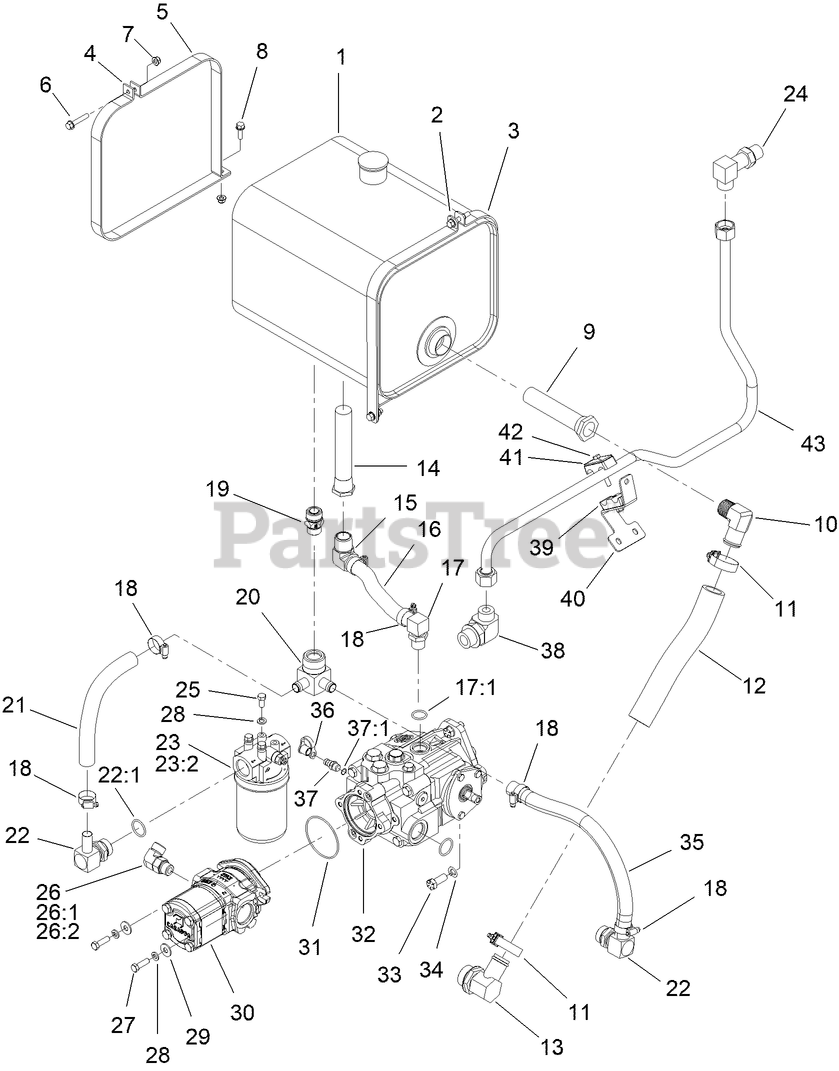

Tank Plumbing Assembly Parts Diagram

  • Title

1

Toro AU111566A1

See Supercession: 127-1097
(Superseded to 127-1097)

$1537.99

$

Usually ships in 3-6 days

0

2

Toro 130-4316

STRAP-TANK

$

$

Currently unavailable

3

Toro 147-5462

STRAP-TANK, HYDRAULIC

$35.99

$

Usually ships in 0 days

0

4

Toro AUH435847

STRAP-TANK

$435.99

$

Usually ships in 3-6 days

0

5

Toro AUH435811

STRAP-TANK

$

$

Not available

6

Toro 94-5780

SCREW-HWH

$8.49

$

In Stock, Qty 8

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

9

Toro AUH584631

FILTER ASM

$172.99

$

Usually ships in 3-6 days

0

10

Toro AU217-166

FITTING-ELBOW, 90

$29.99

$

Usually ships in 3-6 days

0

11

Toro 2412-75

CLAMP

$20.99

$

Usually ships in 3-6 days

0

12

Toro 147-5455

HOSE SUCTION

$31.99

$

Usually ships in 0 days

0

13

Toro 147-5459

S/O COUPLER (20S-20H90)

$82.99

$

Usually ships in 0 days

0

14

Toro AUH151399

FILTER ASM

$

$

Not available

15

Toro 130-4319

FITTING-ELBOW, 90

$61.99

$

Usually ships in 3-6 days

0

16

Toro 147-5457

HOSE LP

$32.99

$

Usually ships in 0 days

0

17

Toro 353-987

FITTING-ELBOW, 90

$79.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

18

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

19

Toro 147-5453

FLOW CHECK VALVE (-12S-120, 5 PSI)

$150.99

$

Usually ships in 0 days

0

20

Toro 147-5452

S/O COUPLER

$85.99

$

Usually ships in 0 days

0

21

Toro 147-5456

HOSE RETURN

$53.99

$

Usually ships in 0 days

0

22

Toro 98-0971

FITTING-ELBOW, 90

$181.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-117

O-RING

$9.49

$

Usually ships in 3-6 days

0

23

Toro 127-8423

HYD FILTER ASM

$373.99

$

Usually ships in 3-6 days

0

23:2

Toro 110-4146

FILTER-HYD

$63.99

$

In Stock, only 2 left!

0

24

Toro 147-5434

CONNECTOR (12S-12O90, XL)

$65.99

$

Usually ships in 0 days

0

25

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 14

0

26

Toro 340-17

FITTING-ELBOW, 90 DEG

$64.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

26:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

27

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

29

Toro 147-5447

WASHER

$1.49

$

Usually ships in 0 days

0

30

Toro 147-5454

PUMP TANDEM (1.29/.44 CIR)

$532.99

$

Usually ships in 0 days

0

31

Toro 147-5460

O-RING (152 D70)

$3.49

$

Usually ships in 0 days

0

32

Toro AU239918A1

HYD VARIABLE PUMP ASM

$3720.99

$

Usually ships in 3-6 days

0

33

Toro 3234-38

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

34

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

35

Toro 147-5458

HOSE-RETURN 3/4

$39.99

$

Usually ships in 0 days

0

36

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

37

Toro 59-7410

FITTING-DIAGNOSTIC

$45.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

38

Toro 147-5441

CONNECTOR (12O-16S90)

$65.99

$

Usually ships in 0 days

0

39

Toro 94-8105

CLAMP-TUBE

$6.99

$

In Stock, only 1 left!

0

40

Toro 147-5466

BRACKET-TUBE

$21.99

$

Usually ships in 0 days

0

41

Toro 69-9761

PLATE-COVER

$10.99

$

Usually ships in 3-6 days

0

42

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

43

Toro 147-5431

HARDLINE (-12 COOLER TO FILTER)

$86.99

$

Usually ships in 0 days

0
