25545 T - Toro Maxi Sneaker 370 Vibratory Plow (SN: 324000001 - 324999999) (2024) Plow Lift Assembly Parts Diagram

Maxi Sneaker 370 Vibratory Plow

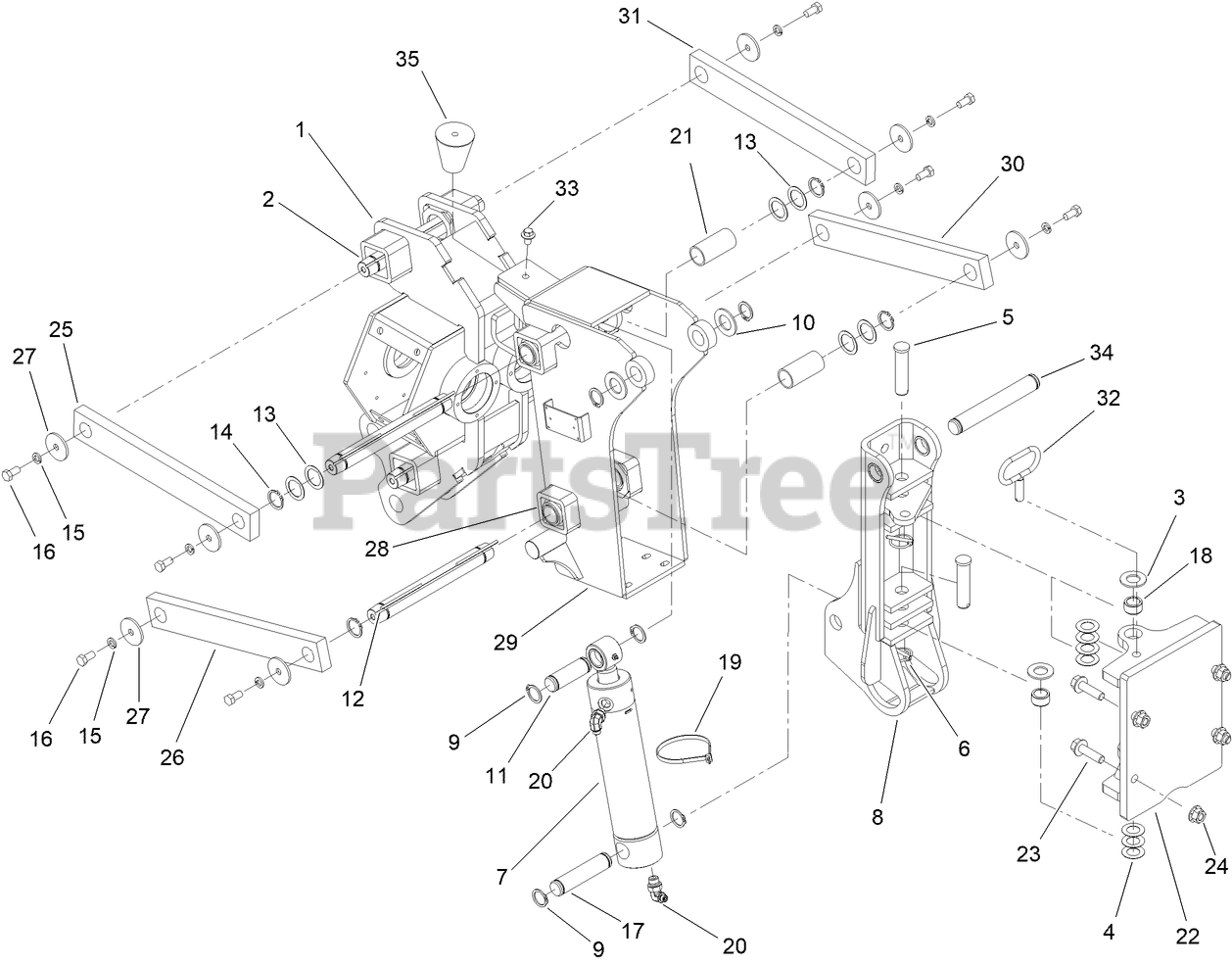

Plow Lift Assembly Parts Diagram

  • Title

1

Toro 147-5615

VIBRATOR BOX - MACHINING

$4603.99

$

Usually ships in 0 days

0

2

Toro 136-0200

SHAFT-ARM, PLOW

$137.99

$

Usually ships in 3-6 days

0

3

Toro AU495-11106

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

4

Toro AU195-81015

WASHER-FLAT

$10.99

$

Usually ships in 3-6 days

0

5

Toro AU113192A1

PIN-PIVOT

$167.99

$

Usually ships in 3-6 days

0

6

Toro 107-3039

KLIK PIN ASM

$10.99

$

In Stock, only 2 left!

0

7

Toro AU129434

HYD CYLINDER ASM

$1683.99

$

Usually ships in 3-6 days

0

7:2

Toro 127-1840

SEAL KIT

Note: Not illustrated

$199.99

$

Usually ships in 3-6 days

0

8

Toro 147-5809

PIVOT ASM

$1072.99

$

Usually ships in 0 days

0

8:1

Toro AUD34337

BUSHING

Note: Not illustrated

$59.99

$

Usually ships in 3-6 days

0

9

Toro 32151-77

RING-RETAINING, EXTERNAL

$5.49

$

Usually ships in 3-6 days

0

10

Toro AUH113241

WASHER-10 GAUGE

$28.99

$

Usually ships in 3-6 days

0

11

Toro AUH434556

PIN-CLEVIS

$131.99

$

Usually ships in 3-6 days

0

12

Toro AU116373A1

KEY-SQUARE

$32.99

$

Usually ships in 3-6 days

0

13

Toro AUH436118

SHIM-ARM

$3.49

$

In Stock, only 2 left!

0

14

Toro 147-5585

RING-RETAINING

$5.49

$

Usually ships in 0 days

0

15

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

16

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

17

Toro AUH434557

PIN-CLEVIS

$139.99

$

Usually ships in 3-6 days

0

18

Toro AUD34818

BUSHING-UPPER

$138.99

$

Usually ships in 3-6 days

0

19

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

20

Toro 147-5586

CONNECTOR (04O-08S90)

$47.99

$

Usually ships in 0 days

0

21

Toro 136-0228

TUBE-SPACER

$22.99

$

Usually ships in 3-6 days

0

22

Toro 147-5592

MOUNT PLATE

$685.99

$

Usually ships in 0 days

0

23

Toro 147-5582

FLG BLT(5/8-NC X 2.25", GR 8)

$3.49

$

Usually ships in 0 days

0

24

Toro 147-5401

FLG LOCKNUT (5/8-NC, GR G)

$5.99

$

Usually ships in 0 days

0

25

Toro 147-5812

BAR - RH UPPER

$268.99

$

Usually ships in 0 days

0

26

Toro 147-5813

BAR - RH LOWER

$325.99

$

Usually ships in 0 days

0

27

Toro 147-5583

WASHER (1/2") ZP

$4.49

$

Usually ships in 0 days

0

28

Toro AUH235077

JOINT-CT BD, J-8203

$236.99

$

Usually ships in 3-6 days

0

29

Toro 147-5593

FRAME-LIFT, PLOW (WELDED)

$3497.99

$

Usually ships in 0 days

0

30

Toro 147-5811

BAR - LH LOWER

$307.99

$

Usually ships in 0 days

0

31

Toro 147-5810

BAR - LH UPPER

$268.99

$

Usually ships in 0 days

0

32

Toro 125-8535

LOCK-SWING

$258.99

$

Usually ships in 3-6 days

0

33

Toro 33106-020

SCREW-HHF

$7.99

$

Usually ships in 3-6 days

0

34

Toro AUH382457

PIN-LIFT

$134.99

$

Usually ships in 3-6 days

0

35

Toro 147-5584

FEMALE BUMPER

$85.99

$

Usually ships in 0 days

0
