25542 E - Toro Field Plow for Maxi Sneaker 370, Pro Sneak 360, or Pro Sneak 365 Vibratory Plow Vibratory Box Assembly Parts Diagram

Field Plow for Maxi Sneaker 370, Pro Sneak 360, or Pro Sneak 365 Vibratory Plow

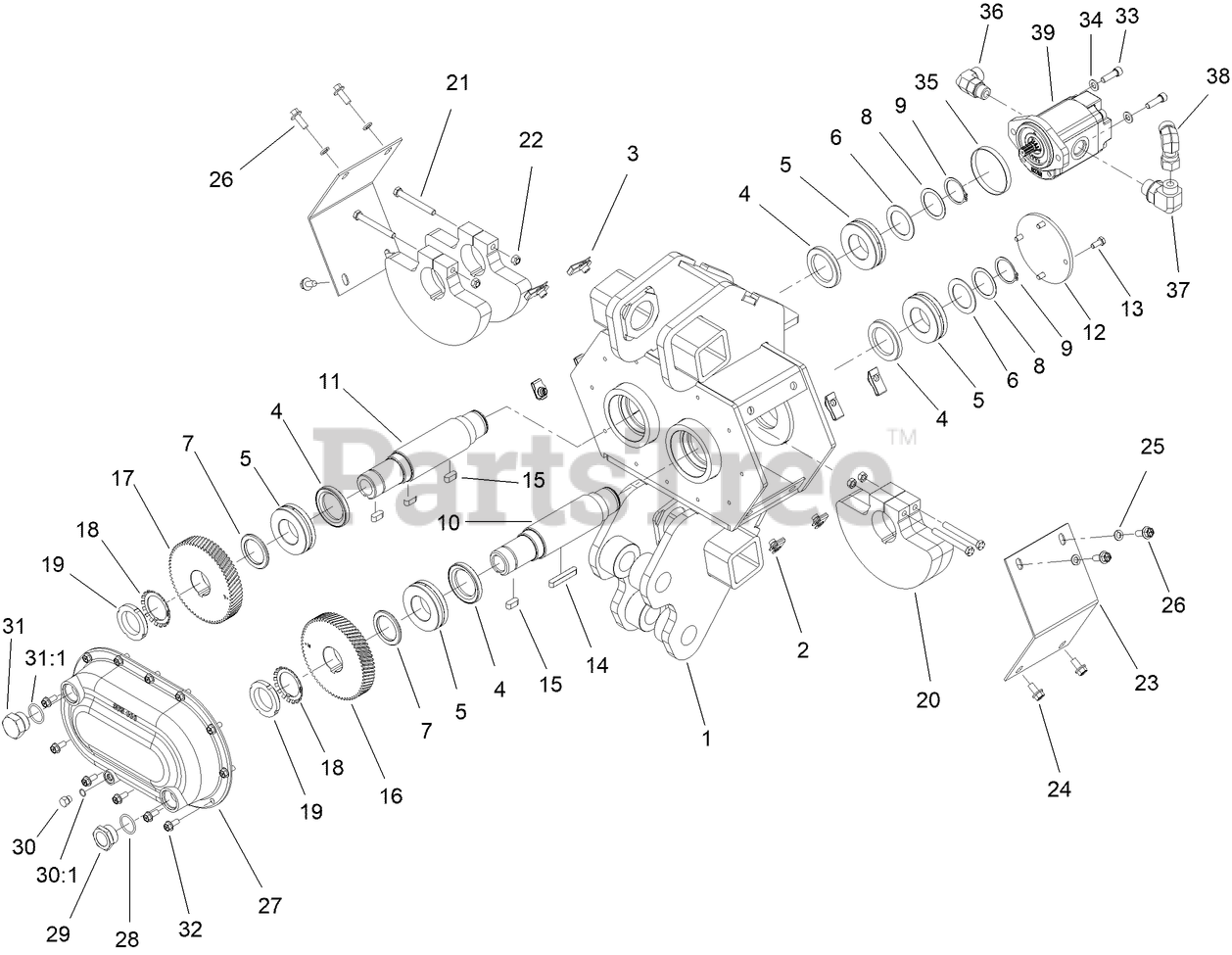

Vibratory Box Assembly Parts Diagram

  • Title

1

Toro 147-5615

VIBRATOR BOX - MACHINING

$4647.99

$

Usually ships in 0 days

0

2

Toro 147-5595

CLIP NUT (3/8-NC)

$5.99

$

Usually ships in 0 days

0

3

Toro 147-5596

CLIP NUT (3/8-NC)

$3.49

$

Usually ships in 0 days

0

4

Toro 147-5601

INTERNAL SEAL

$24.99

$

Usually ships in 0 days

0

5

Toro 99-2670

BEARING-ROLLER, SPHERICAL

$596.99

$

Usually ships in 3-6 days

0

6

Toro 147-5597

MACHINE BUSHING (1-3/4", 14GA)

$1.99

$

Usually ships in 0 days

0

7

Toro 147-5606

SPACER

$56.99

$

Usually ships in 0 days

0

8

Toro 147-5599

MACHINERY BUSHING (1.750")

$9.49

$

Usually ships in 0 days

0

9

Toro 147-5600

EXTERNAL SNAP RING (1.750")

$3.49

$

Usually ships in 0 days

0

10

Toro 147-5605

RIGHT SHAFT

$700.99

$

Usually ships in 0 days

0

11

Toro 147-5604

DRIVER SHAFT

$997.99

$

Usually ships in 0 days

0

12

Toro 147-5613

COVER PLATE

$32.99

$

Usually ships in 0 days

0

13

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 147-5602

KEY (3/8" X 2-29/64")

$31.99

$

Usually ships in 0 days

0

15

Toro 147-5603

KEY (3/8" X .980")

$12.99

$

Usually ships in 0 days

0

16

Toro 147-5611

RIGHT GEAR

$368.99

$

Usually ships in 0 days

0

17

Toro 147-5610

LEFT GEAR

$368.99

$

Usually ships in 0 days

0

18

Toro 147-5609

TANG LOCK WASHER (1.792")

$11.99

$

Usually ships in 0 days

0

19

Toro 147-5608

THRUST LOCKNUT (1.767-NF-18)

$31.99

$

Usually ships in 0 days

0

20

Toro 147-5607

VIBRATOR WEIGHT

$305.99

$

Usually ships in 0 days

0

21

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 147-5616

COVER PLATE

$124.99

$

Usually ships in 0 days

0

24

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

25

Toro 139-5806

WASHER-LOCK

$1.49

$

Usually ships in 3-6 days

0

26

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

27

Toro 147-5612

CASTING (SIDE COVER)

$366.99

$

Usually ships in 0 days

0

28

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

29

Toro 147-5598

SIGHT GAUGE (16S)

$55.99

$

Usually ships in 0 days

0

30

Toro 353-990

PLUG ASM

$12.99

$

Usually ships in 3-6 days

0

30:1

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0

31

Toro 105-3921

FITTING-PLUG

$48.99

$

Usually ships in 3-6 days

0

31:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

32

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 20+

0

33

Toro 3274-1

SCREW-HSH

$8.99

$

Usually ships in 3-6 days

0

34

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

35

Toro 147-5614

ADAPTER

$57.99

$

Usually ships in 0 days

0

36

Toro 340-17

FITTING-ELBOW, 90 DEG

$64.99

$

Usually ships in 3-6 days

0

36:1

Toro 237-65

O-RING

Note: Not illustrated

$2.99

$

In Stock, Qty 20+

0

36:2

Toro 237-80

O-RING

Note: Not illustrated

$6.99

$

In Stock, Qty 20+

0

37

Toro 340-139

FITTING-ELBOW 90

$180.99

$

Usually ships in 3-6 days

0

37:1

Toro 237-81

O-RING

Note: Not illustrated

$3.49

$

Usually ships in 3-6 days

0

37:2

Toro 237-65

O-RING

Note: Not illustrated

$2.99

$

In Stock, Qty 20+

0

38

Toro 340-160

FITTING-HYD-90

$120.99

$

Usually ships in 3-6 days

0

38:1

Toro 237-65

O-RING

Note: Not illustrated

$2.99

$

In Stock, Qty 20+

0

39

Toro 115-8250

Gear Motor ASM

$

$

Currently unavailable

39:1

Toro 125-1682

MOTOR SEAL KIT

Note: Not illustrated

$

$

Currently unavailable

39:2

Toro 117-5107

VALVE-CHECK

Note: Not illustrated

$

$

Currently unavailable
