25531 E - Toro Trencher Drive for Maxi Sneaker 370 Vibratory Plow (SN: 323000001 - 323999999) (2023) Trencher Kit Assembly Parts Diagram

Trencher Drive for Maxi Sneaker 370 Vibratory Plow

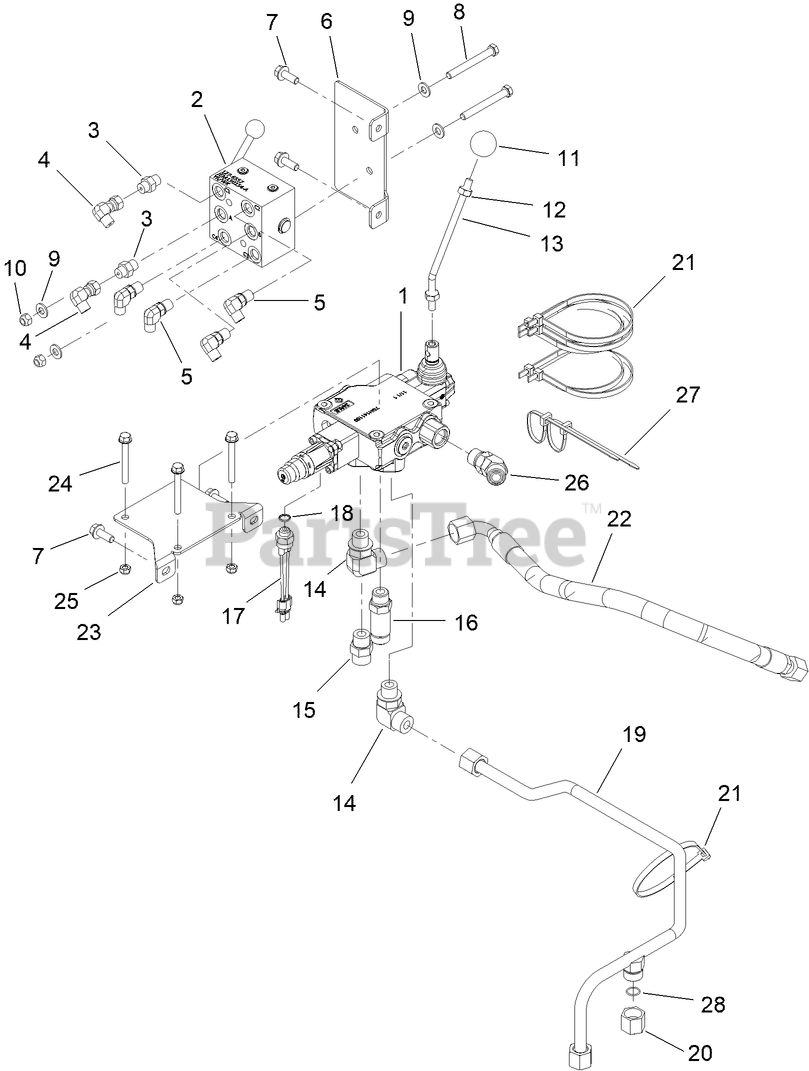

Trencher Kit Assembly Parts Diagram

  • Title

1

Toro 130-4304

VALVE-TRENCHER

$2367.99

$

Usually ships in 3-6 days

0

2

Toro 127-6557

CONTROL SELECTOR VALVE ASM

$1337.99

$

Usually ships in 3-6 days

0

3

Toro 147-5725

CONNECTOR (04O-06S)

$7.49

$

Usually ships in 0 days

0

4

Toro 147-5726

UNION (04O-04OFX90)

$23.99

$

Usually ships in 0 days

0

5

Toro 340-82

FITTING-ELBOW, 90 DEG

$26.99

$

In Stock, only 2 left!

0

5:1

Toro 237-42

O-RING

Note: Not illustrated

$3.49

$

In Stock, Qty 19

0

5:2

Toro 237-21

O-RING

Note: Not illustrated

$0.99

$

In Stock, Qty 5

0

6

Toro 147-5735

SELECTOR VALVE BRACKET

$18.99

$

Usually ships in 0 days

0

7

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 19

0

8

Toro 323-20

SCREW-HH

$3.99

$

In Stock, Qty 12

0

9

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 97-1204

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

11

Toro 130-7377

KNOB-ROUND

$19.99

$

Usually ships in 3-6 days

0

12

Toro 48-7960

NUT
(Superseded to 33015-00)

$

$

Not available

13

Toro 130-4348

LEVER-TRENCHER

$108.99

$

Usually ships in 3-6 days

0

14

Toro 147-5706

CONNECTOR (10S-10O90)

$26.99

$

Usually ships in 0 days

0

15

Toro 147-5727

CONNECTOR (10S-10O)

$9.49

$

Usually ships in 0 days

0

16

Toro 147-5721

CONNECTOR (10O-10S, LG)

$25.99

$

Usually ships in 0 days

0

17

Toro 72-4310

SWITCH-BALL

$108.99

$

Usually ships in 3-6 days

0

18

Toro 147-5703

O-RING (906 D90)

$1.49

$

Usually ships in 0 days

0

19

Toro 147-5723

HARDLINE (-10 TRENCHER TO RETURN)

$96.99

$

Usually ships in 0 days

0

20

Toro 340-150

CAP

$

$

Currently unavailable

21

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

22

Toro 147-5722

HOSE (10OFX90S-26.5"-3000)

$103.99

$

Usually ships in 0 days

0

23

Toro 130-4303-03

BRACKET-TRENCHER VALVE

$

$

Currently unavailable

24

Toro 33104-070

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

25

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

26

Toro 147-5728

CONNECTOR (10S-10O45)

$29.99

$

Usually ships in 0 days

0

27

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

28

Toro 147-5445

O-RING (016 D90)

$0.99

$

Usually ships in 0 days

0
