2551E (3070258) - Giant-Vac Tow-Behind Blower, 25hp 2551E Parts List Parts Diagram

Tow-Behind Blower, 25hp

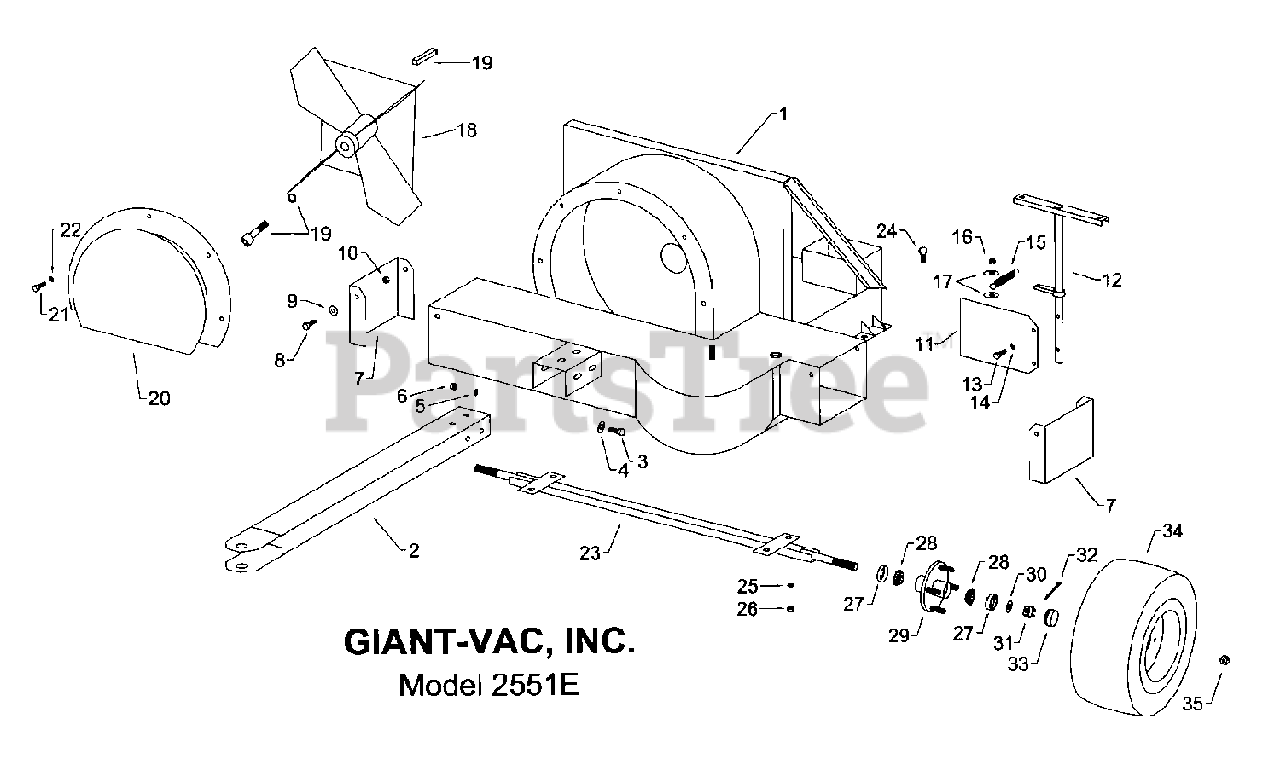

2551E Parts List Parts Diagram

  • Title

1

Giant-Vac 3010224

Housing & base assy

$

$

Currently unavailable

2

Giant-Vac 3038041

Draw bar

$

$

Currently unavailable

3

Giant-Vac 3031033

3/8-16 x 1 hex bolt (draw bar to housing assy)
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

4

Giant-Vac 3031034

3/8 flat washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Giant-Vac 3031008

3/8 lock washer
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

6

Giant-Vac 3031009

3/8-16 hex nut
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

7

Giant-Vac 3024630

Side discharge deflector

$

$

Not available

8

Giant-Vac 3031033

3/8-16 x 1 hex bolt (side deflector to housing assy)
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

9

Giant-Vac 3031034

3/8 flat washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

10

Giant-Vac 3031355

3/8-16 lock nut
(Superseded to 1922694SM)

$

$

Not available

11

Giant-Vac 3024616

Inner discharge direction door

$

$

Currently unavailable

12

Giant-Vac 3023223

Direction door control rod assy

$

$

Not available

13

Giant-Vac 3031031

5/16-18 x 3/4 hex bolt (direction door to control rod)

$

$

Not available

14

Giant-Vac 3031003

5/16 lock washer
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Giant-Vac 3031422

Discharge door return spring

$

$

Currently unavailable

16

Giant-Vac 3031355

3/8-16 lock nut (spring to housing assy)
(Superseded to 1922694SM)

$

$

Not available

17

Giant-Vac 3031034

3/8 flat washer
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

18

Giant-Vac 3021573

Impeller

$

$

Not available

19

Giant-Vac 3031447

Impeller bolt & key group

$

$

Currently unavailable

20

Giant-Vac 3020219

Intake baffle

$

$

Currently unavailable

21

Giant-Vac 3031031

5/16-18 x 3/4 hex bolt (intake baffle to housing assy)

$

$

Not available

22

Giant-Vac 3031003

5/16 lock washer
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

23

Giant-Vac 3033219

Axle

$

$

Currently unavailable

24

Giant-Vac 3031122

1/2-13 x 1-1/4 hex bolt (axle to housing assy)
(Superseded to 7090330YP)

$3.49

$

Usually ships in 2-12 days

0

25

Giant-Vac 3031078

1/2 lock washer

$

$

Currently unavailable

26

Giant-Vac 3031022

1/2-13 hex nut

$

$

Currently unavailable

27

Giant-Vac 3033057

Bearing seal

$

$

Not available

28

Giant-Vac 3033056

High speed bearing – 1 set of 2

$

$

Not available

29

Giant-Vac 3033058

Hub - less bearing – 4-lug w/studs

$

$

Not available

30

Giant-Vac 3031023

3/4 flat washer

$

$

Not available

31

Giant-Vac 3031451

Castle nut – 3/4-25 – secures hub to axle

$

$

Currently unavailable

32

Giant-Vac 3031783

Cotter pin – 1/8 x 1-1/2 oal
(Superseded to 1923500SM)

$3.99

$

In Stock, only 1 left!

0

33

Giant-Vac 3033055

Dust cap

$

$

Currently unavailable

34

Giant-Vac 3033059

Tire & rim assy – 16-6.50 x 8 – 4-lug

$

$

Not available

35

Giant-Vac 3031152

Lug nut

$

$

Currently unavailable

Giant-Vac 3040114

Fuel cap – specify ‘gas’ (Not shown)

$

$

Currently unavailable

Giant-Vac 3031828

Fitting, brass – 1/4IPT to 1/4 Farrell (Not shown)

$

$

Currently unavailable

Giant-Vac 3031753

Hose, copper fuel – 1/4 – 12 length (Not shown)

$

$

Currently unavailable

Giant-Vac 3031755

Hose, rubber fuel – 1/4 – 12 length (Not shown)

$

$

Not available

Giant-Vac 3034041

Clamp, hose – 1/2 (Not shown)

$

$

Currently unavailable

Giant-Vac 3039020

Battery (Not shown)

$

$

Currently unavailable

Giant-Vac 3031643

Battery cable – 16SS (Not shown)

$

$

Currently unavailable

Giant-Vac 3031642

Battery cable – 32SS (Not shown)

$

$

Currently unavailable

Giant-Vac 3031009

3/8-16 hex nut (ground cable to base) (Not shown)
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0

Giant-Vac 3031008

3/8 lock washer (Not shown)
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

Giant-Vac 3031837

Battery terminal cover - black (Not shown)

$

$

Currently unavailable

Giant-Vac 3031836

Battery terminal cover - red (Not shown)

$

$

Currently unavailable

Giant-Vac 3031830

Fuel drain plug – 3/8IPT (Not shown)

$

$

Currently unavailable

3039070

* Engine – 25hp Kohler Command (Not shown)

$

$

Not available

Giant-Vac 3031112

3/8-16 x 1-1/2 hex bolt (engine to housing & base assy) (Not shown)
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

Giant-Vac 3031008

3/8 lock washer (Not shown)
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

Giant-Vac 3031009

3/8-16 hex nut (Not shown)
(Superseded to 7091302SM)

$4.49

$

Usually ships in 2-12 days

0
