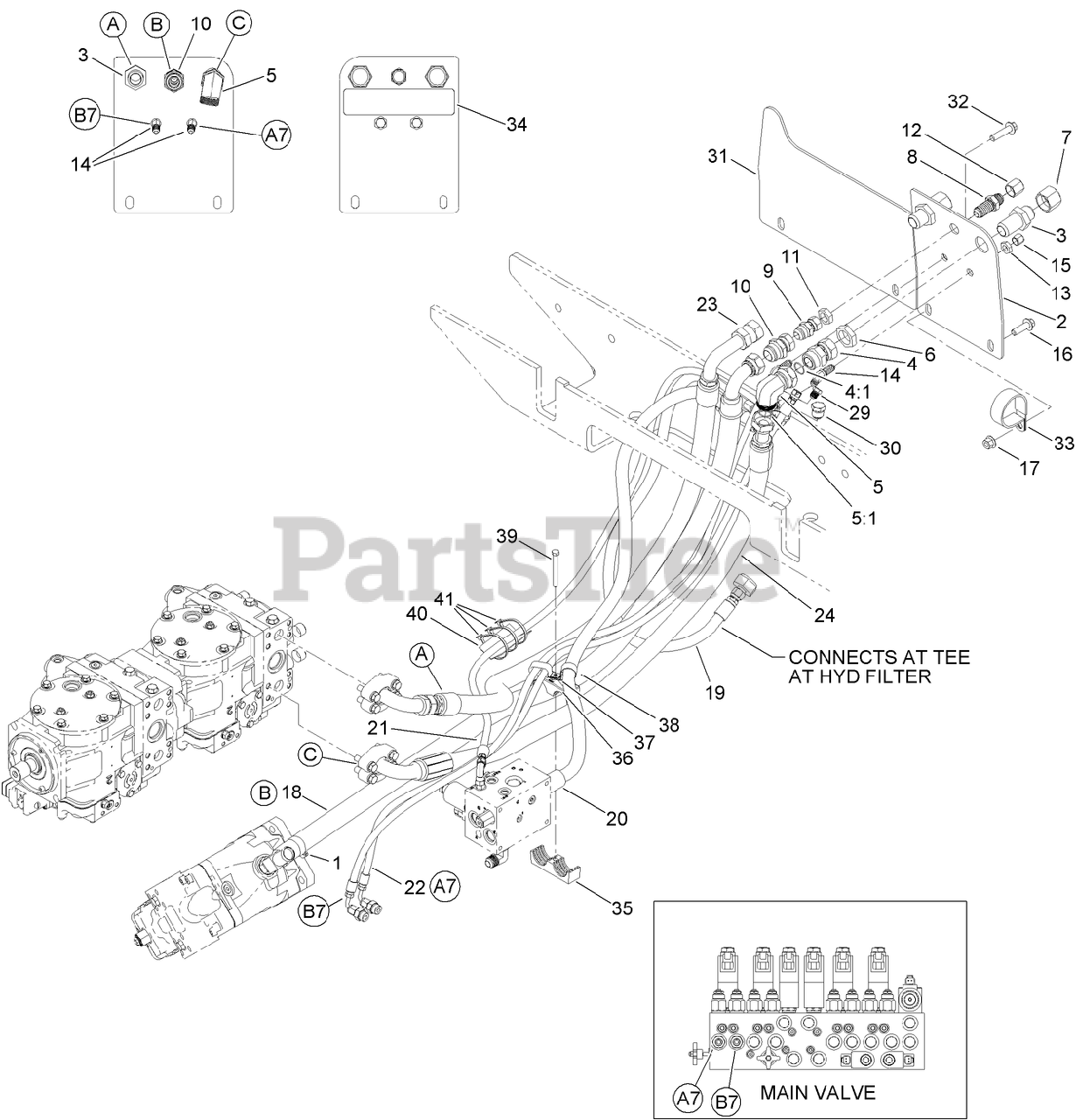

25500 C (RT 1200) - Toro Trencher (SN: 315000001 - 315999999) (2015) TANDEM PUMP AND MAIN VALVE HYDRAULIC PLUMBING ASSEMBLY NO. 2 Parts Diagram

Trencher

TANDEM PUMP AND MAIN VALVE HYDRAULIC PLUMBING ASSEMBLY NO. 2 Parts Diagram

  • Title
1

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 4 left!

0

2

Toro AU118263-03

PLATE-MOUNTING, HYD FITTINGS

$

$

Not available

3

Toro AU218-678

UNION-BULKHEAD

$

$

Not available

4

Toro 130-7535

FITTING-STRAIGHT

$

$

Currently unavailable

4:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

5

Toro 92-7645

FITTING-SWIVEL, 90 DEG

$55.99

$

Usually ships in 3-6 days

0

5:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

6

Toro AU218-1250

NUT-LOCK, BULKHEAD

$

$

Not available

$18.99

$

Usually ships in 3-6 days

0

8

Toro AU218-675

UNION-BULKHEAD

$21.99

$

Usually ships in 3-6 days

0

9

Toro AU91-2215-10-12S

ADAPTER-REDUCER

$

$

Not available

10

Toro AU91-2215-12-16S

ADAPTER-REDUCER

$

$

Currently unavailable

11

Toro AU218-1251

NUT-LOCK, BULKHEAD

$3.49

$

Usually ships in 3-6 days

0

12

Toro AU218-756

FITTING-CAP

$6.49

$

Usually ships in 3-6 days

0

13

Toro AU218-1254

NUT-LOCK, BULKHEAD

$4.49

$

Usually ships in 3-6 days

0

14

Toro 130-7463

FITTING-BULKHEAD, ELBOW 45

$

$

Currently unavailable

$3.99

$

Usually ships in 3-6 days

0

16

Toro 33106-040

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

17

Toro 115-1115

NUT-LOCK, HHF

$2.49

$

In Stock, only 2 left!

0

18

Toro 125-6851

HYD RETURN HOSE ASM

$

$

Currently unavailable

19

Toro 125-6866

HYD HOSE ASM, HP

$

$

Currently unavailable

20

Toro 125-6867

HYD HOSE ASM, HP

$

$

Currently unavailable

21

Toro 125-6879

HYD HOSE ASM, HP

$

$

Currently unavailable

22

Toro 125-6881

HYD HOSE ASM, HP

$

$

Currently unavailable

23

Toro 125-6811

HYD HOSE ASM, HP

$

$

Currently unavailable

24

Toro 130-7506

HYD HOSE ASM

$

$

Currently unavailable

29

$

$

Not available

30

$

$

Not available

31

Toro AU124405-03

PLATE-COVER

$

$

Currently unavailable

32

Toro 33106-050

SCREW-HHF

$

$

Currently unavailable

33

Toro 2412-102

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

34

Toro 127-1828

DECAL-ATTACHMENT CONNECTION

$

$

Currently unavailable

35

Toro 130-7451

CLAMP-TWIN

$

$

Currently unavailable

36

Toro 127-8425

PLATE-REATAINER, CLAMP

$4.49

$

Usually ships in 3-6 days

0

37

$3.49

$

Usually ships in 3-6 days

0

38

Toro 2412-126

R-CLAMP

$3.49

$

Usually ships in 3-6 days

0

39

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

40

Toro AU112950

PROTECTOR-HOSE

$29.99

$

Usually ships in 3-6 days

0

41

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
