25500 C (RT 1200) - Toro Trencher (SN: 315000001 - 315999999) (2015) PEDAL ASSEMBLY NO. AU106377 Parts Diagram

Trencher

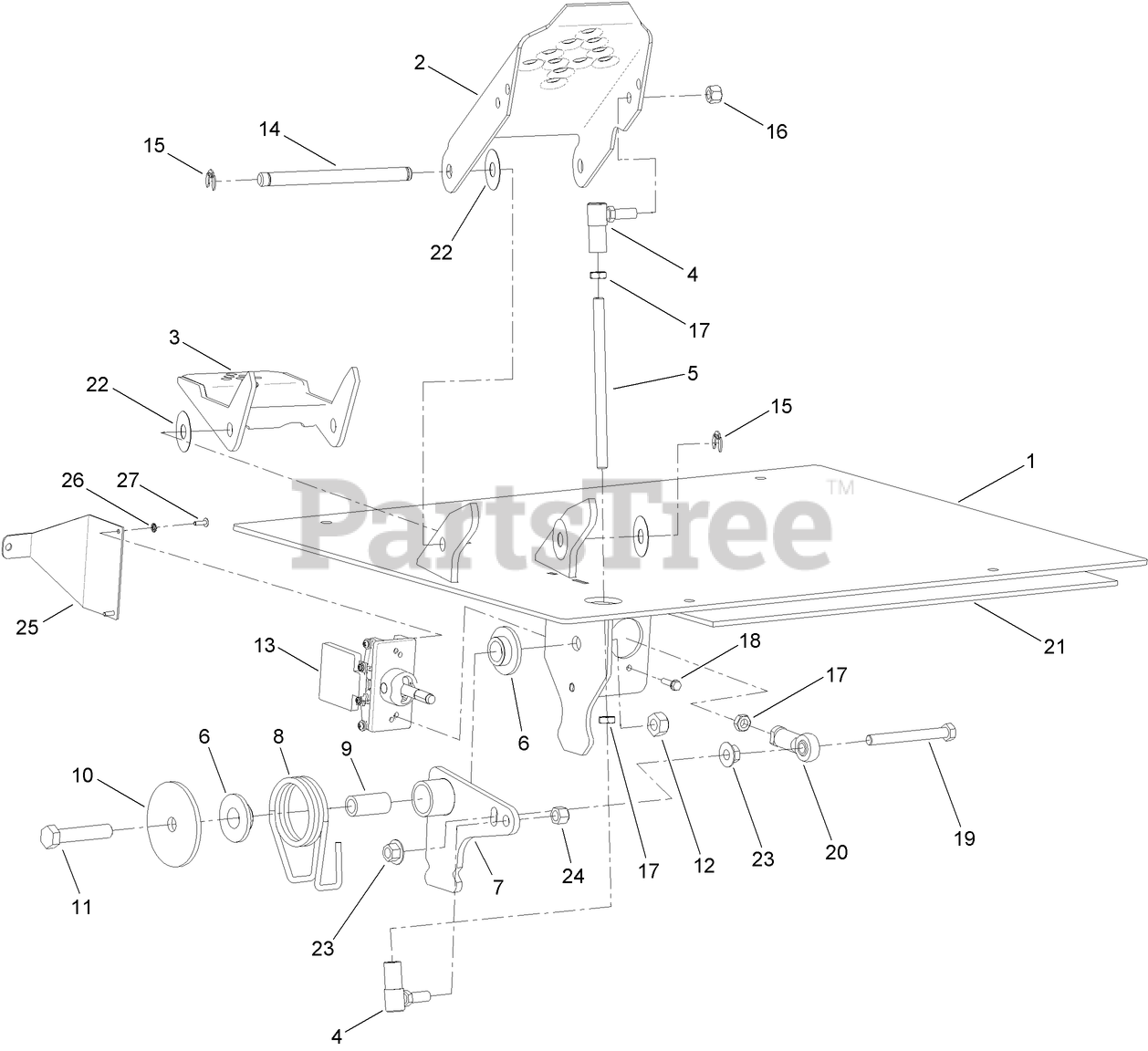

PEDAL ASSEMBLY NO. AU106377 Parts Diagram

  • Title
1

Toro AU106362-03

PLATE-FLOOR

$

$

Not available

2

Toro AUH403816-03

PEDAL-FOOT, GROUND DRIVE

$

$

Currently unavailable

3

Toro AUH672181-03

PEDAL-HEEL

$

$

Currently unavailable

4

Toro AUD38296

JOINT-BALL
(Superseded to 94-7572)

$34.99

$

In Stock, only 2 left!

0

5

Toro AU398314A1

ROD-CONTROL

$

$

Currently unavailable

6

Toro AUD128616

BUSHING-INSERT, PLASTIC

$28.99

$

Usually ships in 3-6 days

0

7

Toro AU106453

PIVOT-W/BELLCRANK

$

$

Currently unavailable

8

$81.99

$

Usually ships in 3-6 days

0

9

$45.99

$

Usually ships in 3-6 days

0

10

Toro AUH436215

WASHER-Special

$14.99

$

Usually ships in 3-6 days

0

11

Toro 325-10

SCREW-HH

$5.49

$

In Stock, Qty 6

0

12

Toro 97-1206

LOCKNUT

$1.99

$

Usually ships in 3-6 days

0

13

Toro 131-0434

SENSOR-TRACTION

$

$

Currently unavailable

$

$

Currently unavailable

15

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 6

0

16

Toro AU232-4616

NUT-HEX

$0.99

$

In Stock, Qty 8

0

17

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

18

Toro 32144-64

TSCREW-HWH

$7.99

$

Usually ships in 3-6 days

0

19

Toro 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

20

Toro 92-7008

END-ROD, FEMALE

$52.99

$

Usually ships in 3-6 days

0

21

Toro AU109930

INSULATION-FLOOR

$

$

Currently unavailable

22

Toro AU126572

WASHER

$

$

Currently unavailable

23

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

24

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

25

Toro 131-0481

PLATE-SENSOR, PEDAL

$

$

Currently unavailable

26

Toro 3255-24

WASHER-LOCK / EXT

$0.99

$

Usually ships in 3-6 days

0

27

Toro 3249-3

SCREW-PRH

$0.99

$

Usually ships in 3-6 days

0
