25500 C (RT 1200) - Toro Trencher (SN: 315000001 - 315999999) (2015) COOLING SYSTEM ASSEMBLY Parts Diagram

Trencher

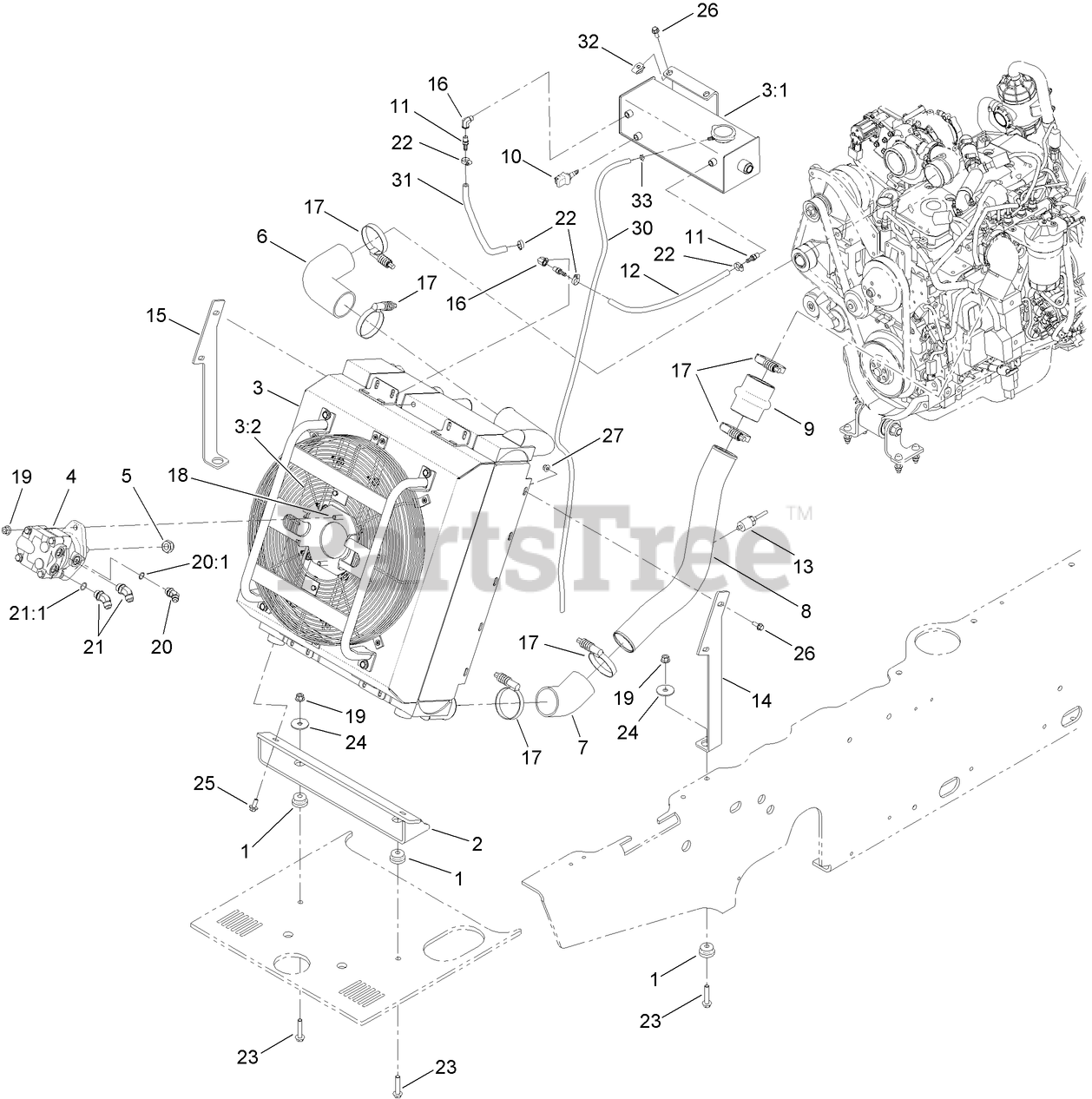

COOLING SYSTEM ASSEMBLY Parts Diagram

  • Title
1

Toro AUL13142

ISOLATOR-MOUNT, RUBBER

$

$

Currently unavailable

2

Toro 127-1753-03

PLATE-MOUNT, RADIATOR

$

$

Currently unavailable

3

Toro 127-1750

COOLING PACKAGE ASM

$

$

Currently unavailable

3:1

Toro 127-1730

COOLANT RECOVERY TANK ASM

$

$

Currently unavailable

3:2

Toro 130-7415

FAN-COOLING, 22 INCH

$

$

Not available

4

Toro AU118007

HYD MOTOR ASM

$

$

Currently unavailable

5

Toro 3296-67

NUT-LOCK, NI

$5.49

$

In Stock, Qty 5

0

6

Toro 127-1760

ELBOW-COOLER, AIR

$

$

Currently unavailable

7

Toro AU130820

ELBOW-COOLER, AIR

$

$

Currently unavailable

8

Toro 127-1758

TUBE ASM

$

$

Currently unavailable

9

Toro AU21000205

ADAPTER-HUMP

$

$

Currently unavailable

10

Toro 110-8828

SENSOR-LEVEL, COOLANT

$553.99

$

Usually ships in 3-6 days

0

11

Toro 108-0342

FITTING-STRAIGHT

$9.99

$

Usually ships in 3-6 days

0

12

Toro 127-1762

HOSE-COOLANT

$

$

Currently unavailable

13

Toro AU129089

TRANSDUCER-TEMPERATURE

$

$

Currently unavailable

14

Toro 127-1756-03

BRACKET-COOLING, LH

$

$

Currently unavailable

15

Toro 127-1757-03

BRACKET-COOLING, RH

$

$

Currently unavailable

16

Toro 125-9088

FITTING-ELBOW, 90

$17.99

$

Usually ships in 3-6 days

0

17

Toro AU21001153

CLAMP-TORQUE, CONSTANT

$

$

Currently unavailable

18

Toro 33106-040

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

19

Toro 115-1115

NUT-LOCK, HHF

$2.49

$

Usually ships in 3-6 days

0

20

Toro 353-379

FITTING-ELBOW, 45 DEG

$

$

Currently unavailable

20:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

21

Toro AU218-5137

FITTING-ELBOW-45 DEG

$40.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

22

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

23

Toro 33106-060

SCREW-HHF

$15.99

$

Usually ships in 3-6 days

0

24

Toro AU496-81018

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

25

Toro 33106-025

SCREW-HHF

$

$

Not available

26

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

27

Toro 119-4042

NUT-HEX FLG

$1.49

$

In Stock, Qty 19

0

30

Toro 131-0430

HOSE-COOLANT

$

$

Currently unavailable

31

Toro 131-0432

HOSE-COOLANT

$

$

Currently unavailable

32

Toro 112-4576

NUT-CLIP, U
(Superseded to 105-4886)

$3.49

$

Usually ships in 3-6 days

0

33

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0
