2550 LE - Poulan Woodmaster Chainsaw, Type 2 (2008-03) Engine Assembly Type 2 Parts Diagram

Woodmaster Chainsaw, Type 2

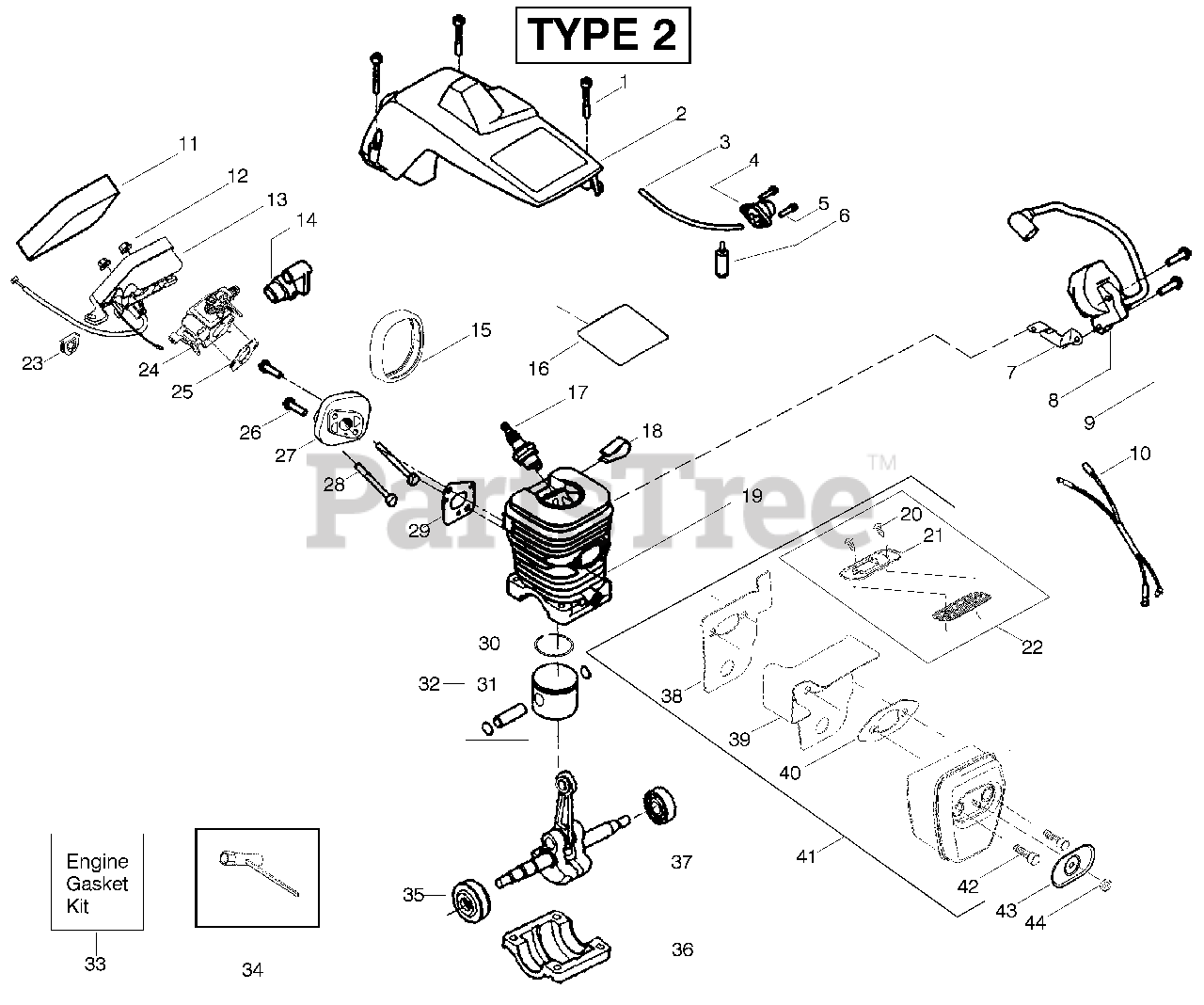

Engine Assembly Type 2 Parts Diagram

  • Title

1

Poulan 530016153

Screw

$6.49

$

In Stock, only 2 left!

0

2

Poulan 530055638

Assy-Cylinder Shield

Note: (includes # 16)

$

$

Not available

3

Poulan 530069247

Kit-Fuel Line

Note: (Small)

$7.99

$

In Stock, Qty 20+

0

4

Poulan 530071835

Kit-Purge Bulb

Note: (incl.#5)

$11.99

$

In Stock, Qty 9

0

5

Poulan 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

6

Poulan 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 19

0

7

Poulan 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530039198

Ignition Module

$56.99

$

In Stock, only 1 left!

0

9

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 16

0

10

Poulan 530057475

Assy-Wire Harness

$8.49

$

Usually ships in 3-10 days

0

11

Poulan 530037793

Foam- Air Filter

$4.99

$

In Stock, Qty 6

0

12

Poulan 530016101

Nut

$6.49

$

In Stock, only 2 left!

0

13

Poulan 530057702

Assy- Air Box

$7.99

$

In Stock, only 1 left!

0

14

Poulan 530035526

Grommet-Carb Adjust

$

$

Not available

15

Poulan 530054144

Seal-Carb Adapter

$

$

Not available

16

Poulan 530055698

Reflector-Heat

$3.99

$

In Stock, only 1 left!

0

17

Poulan 952030150

Spark Plug

Note: (RCJ-7Y)

$3.99

$

In Stock, Qty 20+

0

18

Poulan 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530012550

Cylinder

$51.99

$

Usually ships in 3-10 days

0

20

Poulan 530016351

Screw-Outlet cover

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530054883

Cover - Outlet

$

$

Not available

22

Poulan 530071413

Kit-Spark Arrestor
(Superseded to 530071904)

Note: (Incl. 20,21)

$20.99

$

Usually ships in 3-10 days

0

23

Poulan 530047631

Grommet-Throttle Cable

$2.49

$

In Stock, only 2 left!

0

24

Poulan 545081885

Kit-Carburetor Walbro (WT-89)

Note: (Incl. Grommet)

$34.99

$

Usually ships in 3-10 days

0

25

Poulan 530069608

Gasket-Carb.

Note: (kit)

$8.99

$

In Stock, Qty 10

0

26

Poulan 530016386

Screw

$8.99

$

In Stock, only 1 left!

0

27

Poulan 530049700

Carb. Adapter

$10.99

$

In Stock, only 1 left!

0

28

Poulan 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

29

Poulan 530069608

Gasket- Adaptor

Note: (kit)

$8.99

$

In Stock, Qty 10

0

30

Poulan 530038729

Ring-Piston
(Superseded to 545160401)

$6.49

$

In Stock, only 2 left!

0

31

Poulan 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

32

Poulan 530071408

Kit-Piston

Note: (Incl. 30 & 31)

$

$

Not available

33

Poulan 530069608

Kit-Engine Gasket

Note: (Incl. 25, 29 & 40)

$8.99

$

In Stock, Qty 10

0

34

Poulan 530031163

Bar Wrench

$9.99

$

In Stock, Qty 12

0

35

Poulan 530056363

Assy-Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

36

Poulan 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

37

Poulan 530047062

Assy-Crankshaft
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

38

Poulan 530054885

Backplate

$

$

Not available

39

Poulan 530054880

Guide-Outlet

$

$

Not available

40

Poulan 530069608

Gasket-Muffler

Note: (kit)

$8.99

$

In Stock, Qty 10

0

41

Poulan 530054886

Assy-Muffler
(Superseded to 530071904)

Note: (Incl. 38-40,42)

$20.99

$

Usually ships in 3-10 days

0

42

Poulan 530016338

Bolt-Muffler

$3.99

$

In Stock, only 4 left!

0

43

Poulan 530055586

Cover-Bolt

$

$

Not available

44

Poulan 530016359

Nut-Brass
(Superseded to 574266401)

$4.99

$

In Stock, Qty 6

0

44

Poulan 545123538

Manual

Note: Not Shown

$

$

Not available

44

Poulan 530057757

Decal-Warning

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0
