255-598-190 - White Outdoor Edger, 3.5hp (1995) Edger Parts Diagram

Edger, 3.5hp

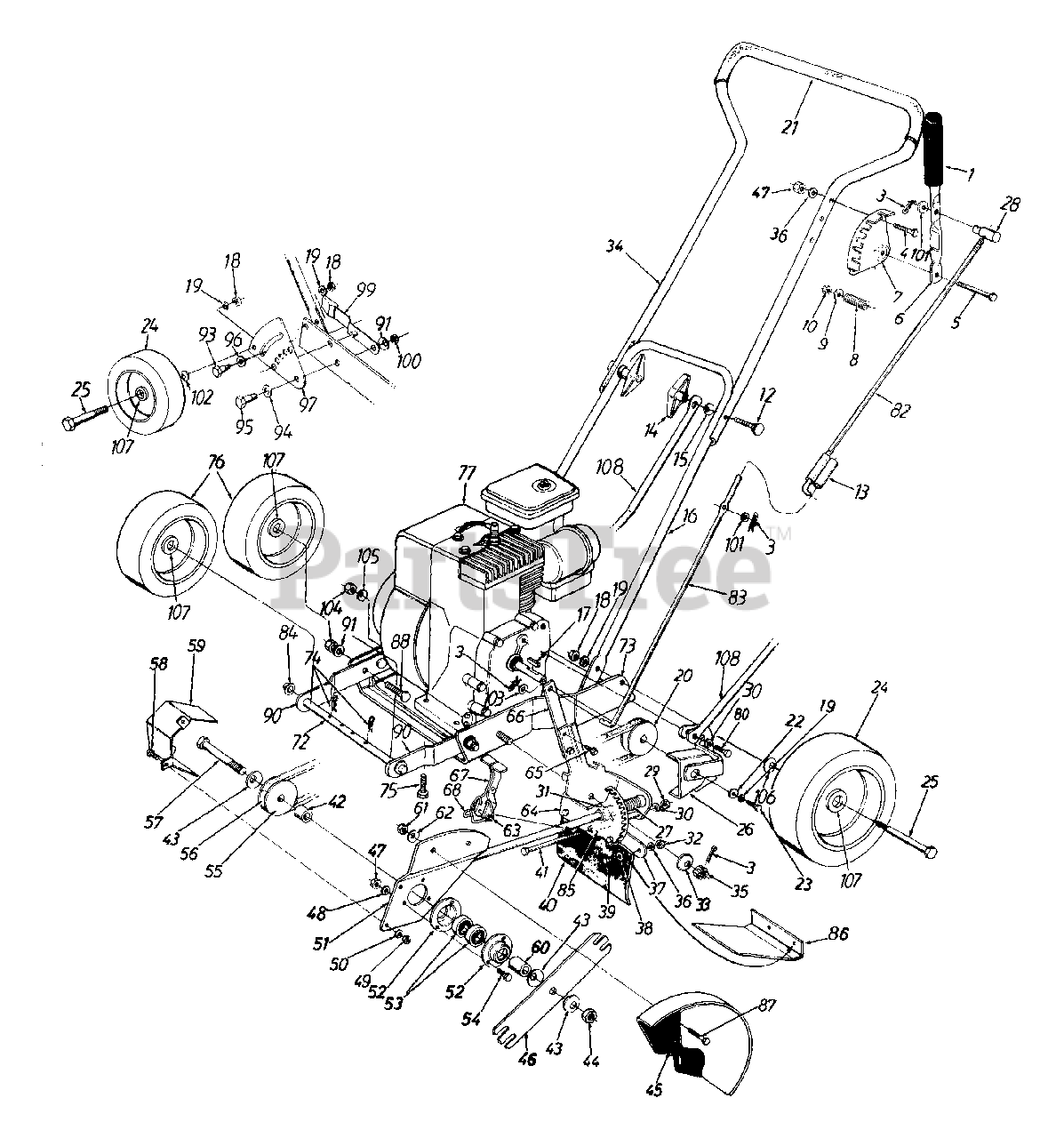

Edger Parts Diagram

  • Title

1

MTD 720-0283

Foam Grip

$8.49

$

Usually ships in 3-6 days

0

2

MTD 912-0107

Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

3

MTD 914-0104

Cotter Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 2 left!

0

5

MTD 710-3103

Hex Bolt 5/16-18 x 2" Lg.

$4.49

$

In Stock, only 4 left!

0

6

MTD 749-0666-0637

Engagement Handle

$35.99

$

In Stock, only 1 left!

0

7

MTD 781-0081

Adjustment Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0081-0480

BRACKET-ADJ - BRILLIANT GREEN (0480)

$

$

Not available

MTD 781-0081-0483

BRACKET-ADJ - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0081-0498

No Longer Available BRACKET-AD - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0081-0637

BRACKET-ADJ - POWDER BLACK (0637)

$

$

Not available

MTD 781-0081-0638

BRACKET-ADJ - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0081-0662

No Longer Available BRACKET-AD - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0081-0691

No Longer Available BRACKET-AD - BLACK JACK (0691)

$

$

Not available

MTD 781-0081-0692

BRACKET-ADJ - AGWAY BLUE (0692)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

8

MTD 932-0369

Compression Spring 1.38" Lg.

$10.99

$

Usually ships in 3-6 days

0

9

MTD 936-0264

Fl-Wash. .344" I.D.

$6.99

$

In Stock, only 3 left!

0

10

MTD 912-0158

Hex L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 13

0

12

MTD 710-1174

Curv. Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

13

MTD 950-0963

Clutch Rod Lock

$34.99

$

In Stock, only 3 left!

0

14

MTD 720-04072A

Wing Nut Ass'y.

$6.99

$

In Stock, Qty 20+

0

15

MTD 936-0451

Saddle Wash. .32" I.D. x .937"
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

16

MTD 749-0937-0637

Lower Handle

$

$

Not available

17

MTD 914-0122

Sq. Key 3/16" x .75" Lg.
(Superseded to 714-0122)

$

$

Not available

18

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

19

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

20

MTD 756-0327B

Engine Pulley

Note: NLA

$

$

Not available

21

MTD 720-0280

Foam Grip

Note: NLA

$

$

Not available

22

MTD 736-0258

Fl-Wash. .385" I.D.

$4.49

$

In Stock, only 4 left!

0

23

MTD 710-1039

Hex Bolt 3/8-24 x 1" Lg.

$4.49

$

In Stock, Qty 5

0

24

MTD 734-1268

Rear Wheel Ass'y.

$71.99

$

Usually ships in 3-6 days

0

25

MTD 938-0108

Shoulder Bolt .498" Dia.

$6.99

$

In Stock, Qty 6

0

26

MTD 687-0100

Belt Guard Ass'y.

Note: NLA

Variations

MTD 687-0100-0498

No Longer Available GUARD-BELT - OLD CUB YELLOW (0498)

$

$

Not available

MTD 687-0100-0637

No Longer Available GUARD-BELT - POWDER BLACK (0637)

$

$

Not available

MTD 687-0100-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-0100-0665

No Longer Available GUARD-BELT - YARDMAN GREEN (0665)

$

$

Not available

MTD 687-0100-0716

No Longer Available GUARD-BELT - CUB YELLOW-99 (0716)

$

$

Not available

$

$

27

MTD 732-0187

Compression Spring

$2.99

$

Usually ships in 3-6 days

0

28

MTD 911-0677

Ferrule

$17.99

$

In Stock, only 4 left!

0

29

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

31

MTD 915-0143

Spring Pin Spir. 1/4" Dia.
(Superseded to 715-0143)

$

$

Not available

32

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

Usually ships in 3-6 days

0

33

MTD 736-0112

Bell-Wash. .535" I.D.

$9.99

$

Usually ships in 3-6 days

0

34

MTD 749-0936A

Upper Loop Handle

Note: NLA

$

$

Not available

35

MTD 912-0114

Hex Slotted Nut 1/2-20 Thd.

$

$

Not available

36

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

37

MTD 781-0087-0637

Flap Bracket

$

$

Not available

38

MTD 736-0342

Fl-Wash. .25" I.D.

$7.49

$

Usually ships in 3-6 days

0

39

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

40

MTD 731-0725

Flap

$

$

Not available

41

MTD 710-0402

Hex Bolt 5/16-18 x 4.5" Lg.

Note: NLA

$

$

Not available

42

MTD 950-0229

Spacer 1.030" Lg.

$

$

Not available

43

MTD 736-0317

Bell-Washer. .63" I.D.

$7.99

$

In Stock, Qty 20+

0

44

MTD 912-0413

Hex Jam L-Nut 5/8-18 Thd.
(Superseded to 712-0413)

$

$

Not available

45

MTD 781-0076

Guard Ass'y.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0076-0637

No Longer Available GUARD ASM - POWDER BLACK (0637)

$

$

Not available

MTD 781-0076-0483

No Longer Available GUARDASSY - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0076-0498

No Longer Available GUARDASSY - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0076-0638

No Longer Available GUARDASSY - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0076-0650

No Longer Available GUARDASSY - RED METALLIC (0650)

$

$

Not available

MTD 781-0076-0662

No Longer Available GUARDASSY - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0076-0665

No Longer Available GUARDASSY - YARDMAN GREEN (0665)

$

$

Not available

MTD 781-0076-0667

No Longer Available GUARDASSY - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 781-0076-0716

No Longer Available GUARDASSY - CUB YELLOW-99 (0716)

$

$

Not available

$

$

46

MTD 781-0080-0637

Edger Blade

$8.99

$

In Stock, Qty 20+

0

47

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

Usually ships in 3-6 days

0

48

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

49

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

Usually ships in 3-6 days

0

50

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

51

MTD 781-0078

Spindle Plate Ass'y.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0078-0637

PLATE-ASSY.SPINDLE - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 05034A

Bearing Housing

$

$

Not available

53

MTD 941-0155

Ball Bearing .62" I.D.

$23.99

$

In Stock, Qty 18

0

54

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

55

MTD 956-0449

3/8" "V" - Pulley

$14.99

$

In Stock, only 2 left!

0

56

MTD 954-0142

V - Belt

$30.99

$

In Stock, Qty 12

0

57

MTD 710-3151A

Hex Bolt 5/8-18 x 4.5" Lg.

$18.99

$

Usually ships in 3-6 days

0

58

MTD 710-0751

Hex Bolt 1/4-20 x .625" Lg.

$3.99

$

In Stock, Qty 20+

0

59

MTD 781-0427-0637

Belt Guard

$20.99

$

Usually ships in 3-6 days

0

60

MTD 950-0118

Sleeve .90" Lg.

$

$

Not available

61

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

62

MTD 736-0242

Bell-Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

63

MTD 715-0121

Spring Pin Spir. 1/4" Dia.

$6.99

$

In Stock, Qty 8

0

64

MTD 781-0090

Pivot Bracket Ass'y.

Note: NLA

Variations

MTD 781-0090-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 781-0090-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0090-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0090-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 781-0090-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

65

MTD 710-0600

Hex Self-Tap Scr. 5/16-24 x .5"

$3.49

$

Usually ships in 3-6 days

0

66

MTD 781-0075-0637

Arm Extension

$

$

Not available

67

MTD 981-0093

Adjustment Lever Ass'y.

$

$

Not available

68

MTD 732-0188A

Torsion Spring

$12.99

$

In Stock, Qty 10

0

69

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

72

MTD 938-0898

Axle 8.20" Lg. (Front)

$

$

Not available

73

MTD 681-0044

Base Ass'y.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 681-0044-0637

BASE ASSY - POWDER BLACK (0637)

$

$

Not available

MTD 681-0044-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 681-0044-0650

BASE ASSY - RED METALLIC (0650)

$

$

Not available

MTD 681-0044-0662

BASE ASSY - OYSTER GRAY (0662)

$

$

Not available

MTD 681-0044-0716

No Longer Available BASE ASM - CUB YELLOW-99 (0716)

$

$

Not available

$

$

74

MTD 914-0101

Hairpin Cotter 1/2" Dia.
(Superseded to 714-0101)

$

$

Not available

75

MTD 710-0654A

Hex TT-Tap Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

76

MTD 734-1264

Front Wheel Ass'y.

$55.99

$

Usually ships in 3-6 days

0

77

Engine

$

$

Not available

80

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

82

MTD 747-0907

Upper Clutch Rod

$

$

Not available

83

MTD 747-0908

Lower Clutch Rod

$

$

Not available

84

MTD 726-0221

Push Cap 1/2" Dia.

$6.49

$

In Stock, only 1 left!

0

85

MTD 711-0386

Spacer 3.765" Lg.

$

$

Not available

86

MTD 781-0095

Debris Deflector

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0095-0637

DEFLECTOR-DEBRIS - POWDER BLACK (0637)

$

$

Not available

MTD 781-0095-0483

No Longer Available DEFLECTOR- - CHARCOAL GRAY (0483)

$

$

Not available

MTD 781-0095-0638

No Longer Available DEFLECTOR-DEBRIS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0095-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

87

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

88

MTD 710-0793

Ribbed Neck Bolt 3/8-24 x .8" Lg.

$

$

Not available

90

MTD 781-0580

Axle Arm

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 781-0580-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0580-0638

No Longer Available AXLE ARM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

91

MTD 736-0105

Bell-Wash. .40" I.D.

$4.49

$

In Stock, Qty 20+

0

92

MTD 736-0280

Fl-Wash. .39" I.D.
(Superseded to 736-04005)

$8.99

$

Usually ships in 3-6 days

0

93

MTD 938-0258

Shld. Bolt .5" Dia.

$

$

Not available

94

MTD 936-0255

Bell-Wash. .515" I.D.
(Superseded to 736-0255)

$

$

Not available

95

MTD 938-0183

Shld. Bolt .50" Dia.

$

$

Not available

96

MTD 936-0192

Fl-Wash. .51" I.D. x .94"

$4.49

$

In Stock, Qty 18

0

97

MTD 781-0100

Curb Height Adjuster

Note: NLA

Variations

MTD 781-0100-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 781-0100-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 781-0100-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 781-0100-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

$

$

99

MTD 932-0552

Spring Adj. Lever

$

$

Not available

100

MTD 712-0266A

Hex Jam Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

101

MTD 936-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 3 left!

0

102

MTD 936-0504

Wave Wash. .51" I.D.

$4.49

$

In Stock, Qty 10

0

103

MTD 736-3050

Fl-Wash. .406" I.D. x .81" O.D.

$4.49

$

In Stock, Qty 16

0

104

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

105

MTD 936-0452

Bell-Wash. .396" I.D. x 1.14" O.D.
(Superseded to 736-0452)

$4.99

$

In Stock, Qty 7

0

106

MTD 936-0504

Wave Wash. .51" I.D.

$4.49

$

In Stock, Qty 10

0

107

MTD 941-0484

Ball Bearing

$7.49

$

In Stock, only 1 left!

0

108

MTD 749-0941-0637

Strut 15.91" Lg.

$

$

Not available

111

MTD 936-0463

Fl-Wash. .25" I.D. x .62" O.D.
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0
