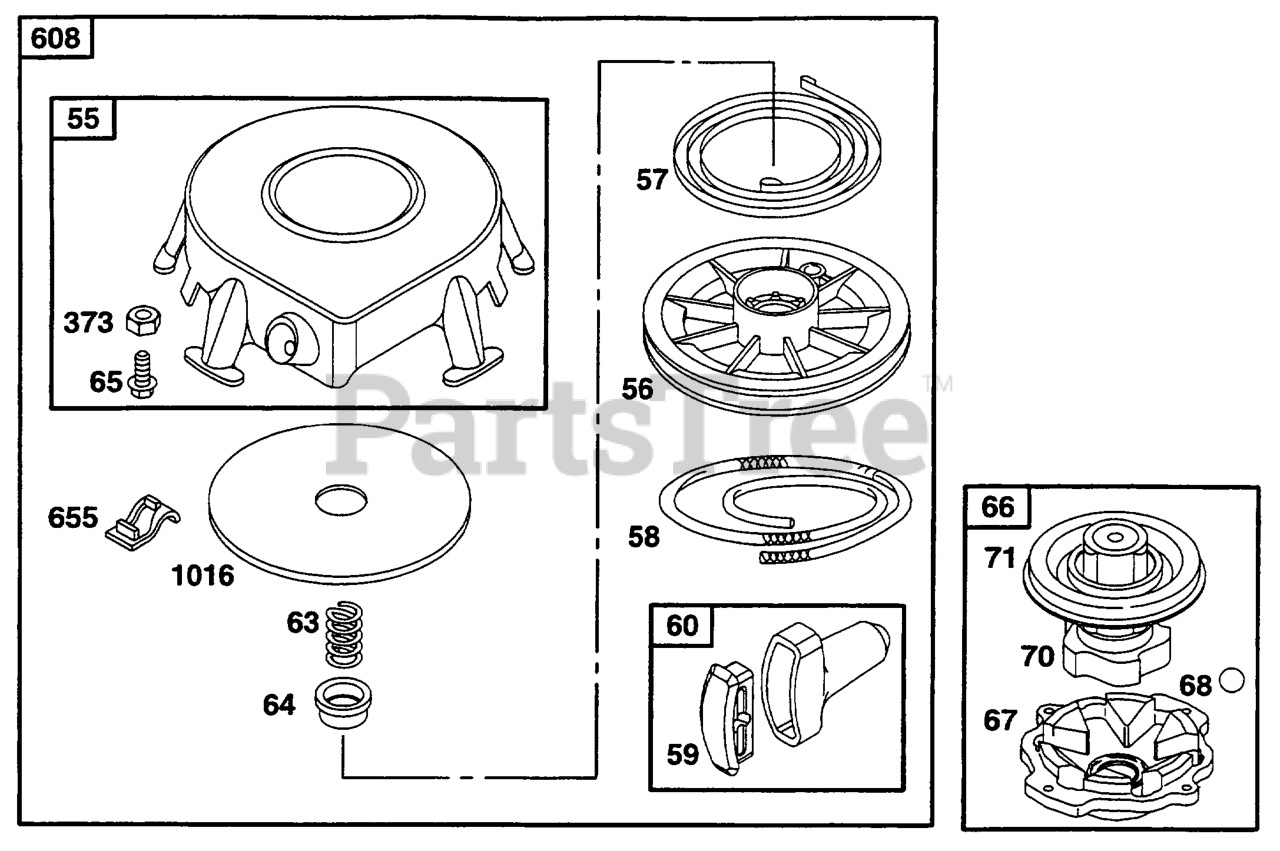

254707-0127-01 - Briggs & Stratton Vertical Engine Rewind Starter Parts Diagram

Vertical Engine

Rewind Starter Parts Diagram

  • Title

55

Briggs & Stratton 393576

Housing-Rew Str

$

$

Not available

56

Briggs & Stratton 295871

Pulley-Starter (Includes 63" Rope)

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

Spring-Rewind Starter

$14.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 66884

Rope, Starter (63" Cut To Required Length)
(Superseded to 692188)

$8.49

$

In Stock, Qty 11

0

59

Briggs & Stratton 490653

Insert-Starter Rope
(Superseded to 490652)

$5.49

$

In Stock, Qty 8

0

60

Briggs & Stratton 490652

HANDLE, Starter Rope

$5.49

$

In Stock, Qty 8

0

63

Briggs & Stratton 260414

Spring-Ratchet
(Superseded to 690547)

$8.49

$

In Stock, only 2 left!

0

64

Briggs & Stratton 281204

Adapter-Spring
(Superseded to 691920)

$11.99

$

In Stock, only 4 left!

0

65

Briggs & Stratton 94128

Screw-Stamped Steel Housing Mtg. Sem
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 399671

Clutch-Starter

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing-Starter Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

$17.99

$

In Stock, Qty 6

0

71

Briggs & Stratton 394506

Seal/Retainer Assy (Rubber Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 11

0

373

Briggs & Stratton 92987

Nut, Hex Mach
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

608

Briggs & Stratton 390391

Starter-Rewind
(Superseded to 693900)

$89.99

$

In Stock, only 2 left!

0

655

Briggs & Stratton 222598

Insert, Spring
(Superseded to 691734)

$

$

Not available

1016

Briggs & Stratton 490817

Spacer=rewind

$9.49

$

In Stock, only 4 left!

0
