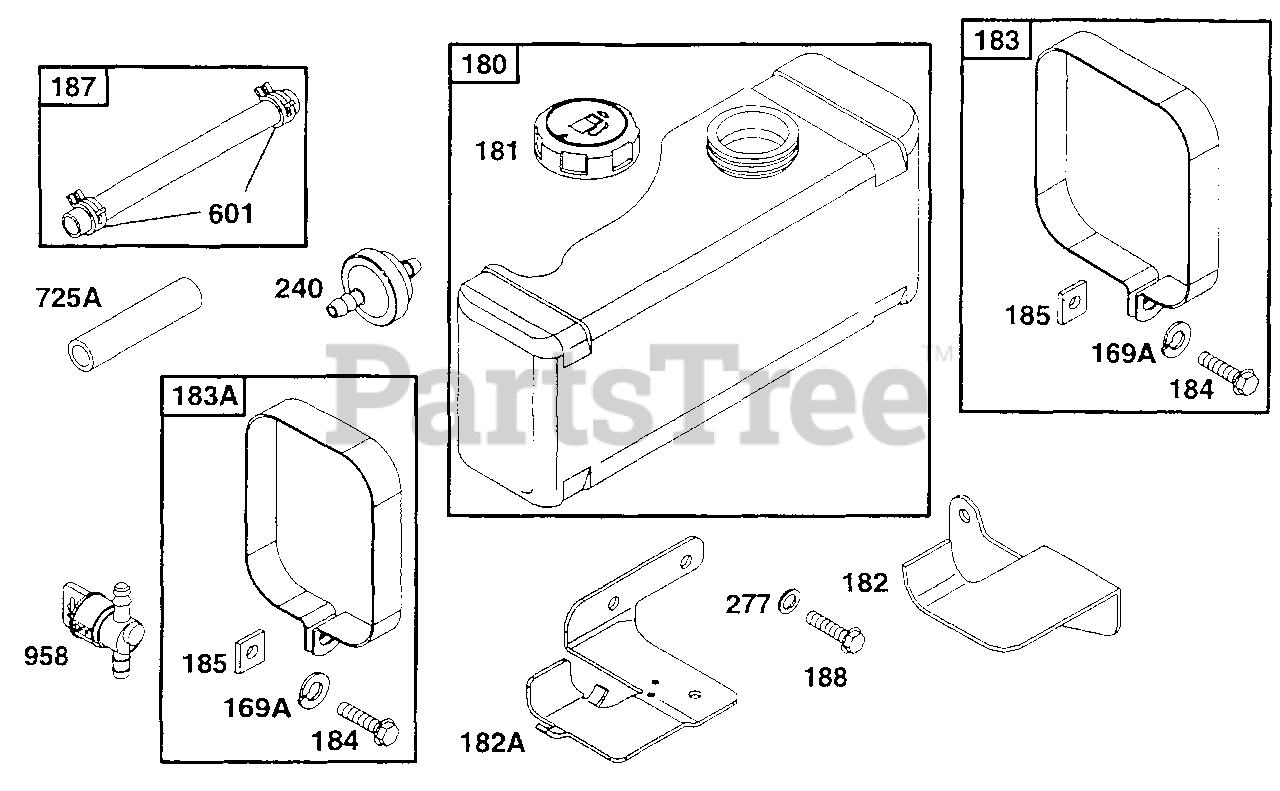

254707-0123-01 - Briggs & Stratton Vertical Engine Fuel Tank Grp Parts Diagram

Vertical Engine

Fuel Tank Grp Parts Diagram

  • Title
169A

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

180

Briggs & Stratton 390225

Tank-Fuel (3 Quart, Plastic)

$

$

Not available

181

Briggs & Stratton 493988

Cap, Tank (Plastic)
(Superseded to 799719)

$40.99

$

In Stock, only 3 left!

0

182A

Briggs & Stratton 222979

Bracket, Tank (L.H.)
(Superseded to 692867)

$23.99

$

Usually ships in 2-12 days

0

182

Briggs & Stratton 222980

Bracket-Fuel Tank (R.H.)

$22.99

$

Usually ships in 2-12 days

0

183A

Briggs & Stratton 496852

Strap, Tank Assy (L.H.)
(Superseded to 692030)

$16.99

$

Usually ships in 2-12 days

0

183

Briggs & Stratton 496853

Strap, Tank Assy (R.H.)
(Superseded to 698459)

$17.99

$

Usually ships in 2-12 days

0

184

Briggs & Stratton 94286

Screw-Hex.
(Superseded to 697935)

$3.99

$

In Stock, only 1 left!

0

185

Briggs & Stratton 90970

Nut, Square (1/4-20)
(Superseded to 690279)

$3.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 299146

Line-Fuel (28" Cut To Required Length)
(Superseded to 841589)

$38.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93634

Screw-Hex (5/16-18 X 7/8")
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

188

Briggs & Stratton 94627

Screw, Sem Hex Head
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

240

Briggs & Stratton 394358

Filter, Fuel (Used With Fuel Pump)
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

277

Briggs & Stratton 22776

Washer, Steel
(Superseded to 690259)

$12.99

$

In Stock, only 2 left!

0

277

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

725A

Briggs & Stratton 222175

Deflector, Heat
(Superseded to 690403)

$6.99

$

Usually ships in 2-12 days

0

958

Briggs & Stratton 490565

Ring Set-Piston Std.

$25.99

$

Usually ships in 2-12 days

0
