254707-0117-01 - Briggs & Stratton Vertical Engine Carburetor Assy Parts Diagram

Vertical Engine

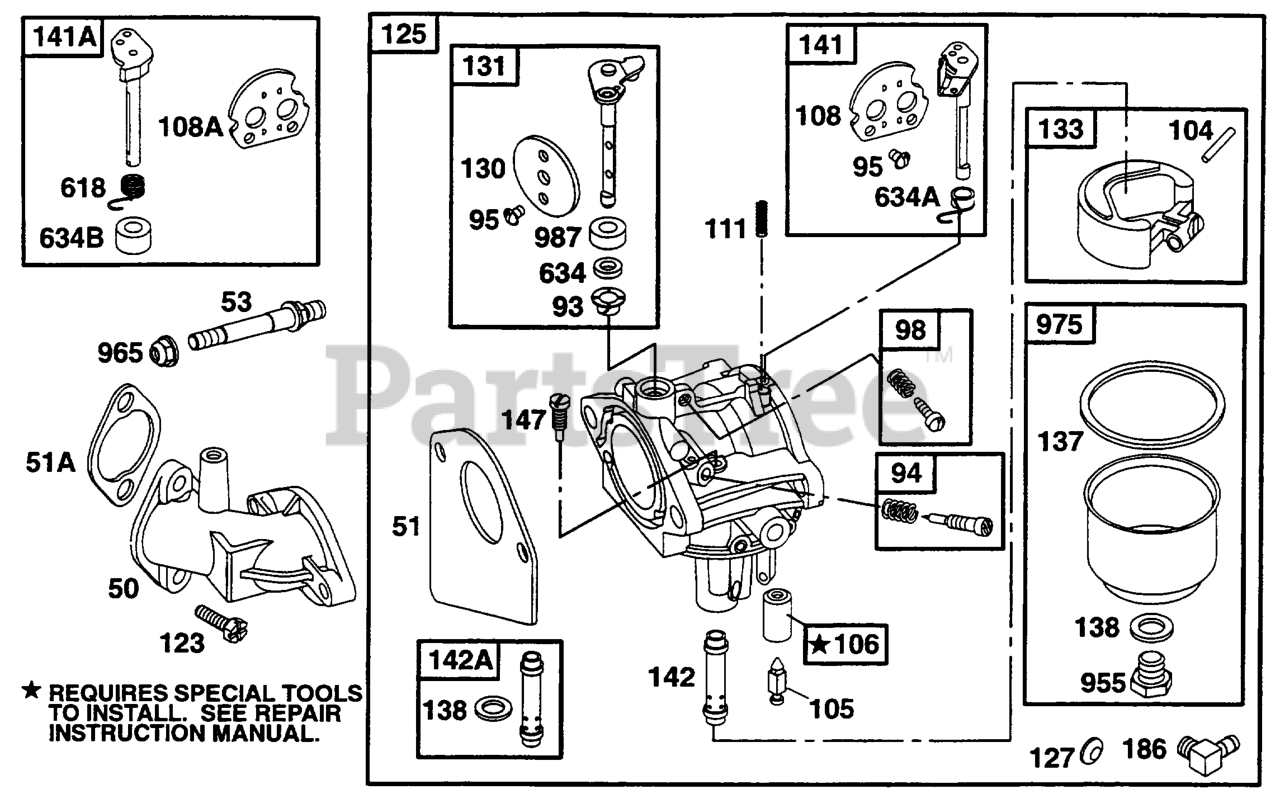

Carburetor Assy Parts Diagram

  • Title

50

Briggs & Stratton 213819

Manifold-Intake
(Superseded to 691711)

$

$

Not available

51A

Briggs & Stratton 498869

Gasket-Carburetor Mounting

$5.49

$

In Stock, Qty 10

0

51

Briggs & Stratton 272554

Gasket-Intake
(Superseded to 272554S)

$5.49

$

In Stock, only 4 left!

0

53

Briggs & Stratton 94637

Stud-Hex. Drive
(Superseded to 690227)

$7.99

$

In Stock, Qty 6

0

93

Briggs & Stratton 281346

Bushing-Throttle Shaft
(Superseded to 690602)

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 494383

Kit-Idle Mixture (Lmt 71,101,102,113,114,116)

$13.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 94098

Screw, Round Washer
(Superseded to 691636)

Note: See Footnote for other Date Codes

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 398185

Screw-Idle Speed (Lmt 26, 27, 28, 31)

Note: Used Before Code Date 92072000

$7.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 495800

Screw-Idle Speed (Lmt 54, 55, 91)

Note: Used After Code Date 92071900

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231789

Pin-Float Hinge
(Superseded to 690525)

Note: See Footnote for other Date Codes

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

Valve, Inlet (Lmt 54 55, 91)
(Superseded to 231855S)

Note: Used After Code Date 92071900

$6.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 494788

Kit-Needle/seat (Lmt 5, 6)

Note: Used Before Code Date 92072000

$9.99

$

In Stock, only 2 left!

0

106

Briggs & Stratton 231854

Seat, Inlet (Gravity Feed)
(Superseded to 690577)

Note: Used After Code Date 92071900

$7.99

$

In Stock, Qty 6

0

106

Briggs & Stratton 280328

Seat-Inlet (Gravity Feed System) Lmt 26,27,28, 31
(Superseded to 691901)

Note: Used Before Code Date 92072000

$8.99

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 224666

Valve, Choke (Choke A Matic)
(Superseded to 690467)

$5.49

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 224667

Valve-Choke (Manual Choke)

$9.49

$

In Stock, only 1 left!

0

111

Briggs & Stratton 262820

Spring-Lever
(Superseded to 590931)

$5.49

$

In Stock, Qty 11

0

123

Briggs & Stratton 94616

Screw, Hex Head Tor (T/30)
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 495784

Carburetor (Lmt 91)

$249.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 224539

Valve-Throttle
(Superseded to 691750)

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 494379

Throttle Shaft Kit
(Superseded to 790901)

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

Gasket-Float Bowl
(Superseded to 281165S)

Note: See Footnote for other Date Codes

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

Washer-Seal
(Superseded to 692255)

Note: See Footnote for other Date Codes

$5.49

$

In Stock, Qty 20+

0

141A

Briggs & Stratton 495931

Choke Shaft Kit (Choke-A-Matic)
(Superseded to 790902)

Note: Used After Code Date 92071900

$33.99

$

In Stock, only 1 left!

0

141A

Briggs & Stratton 494879

Shaft-Choke

Note: Used Before Code Date 92072000

$8.49

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 495097

Choke Shaft Kit (Manual Choke, Lmt 28,31,55,91,155,156)
(Superseded to 790905)

$45.99

$

Usually ships in 2-12 days

0

142A

Briggs & Stratton 495604

Nozzle-Carburetor (High Altitude)

$20.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 494878

Nozzle-Carburetor

Note: See Footnote for other Date Codes

$29.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 497472

Jet-Pilot

$22.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 493496

Connector-Hose
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 262803

Spring-Choke Return

$8.99

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 494453

Spring & Seal Assem (Manual Choke)
(Superseded to 690801)

$8.49

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 281168

Seal-Choke Shaft
(Superseded to 690597)

$6.49

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 281167

Seal-Thr Shaft
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

987

Briggs & Stratton 281166

Seal-Throttle Shaft
(Superseded to 691326)

Note: See Footnote for other Date Codes

$5.49

$

Usually ships in 2-12 days

0
