25463 - Toro Plow Kit for RT1200 Trencher (SN: 314000001 - 314999999) (2014) SHAKER BOX ASSEMBLY NO. 131-2856 Parts Diagram

Plow Kit for RT1200 Trencher

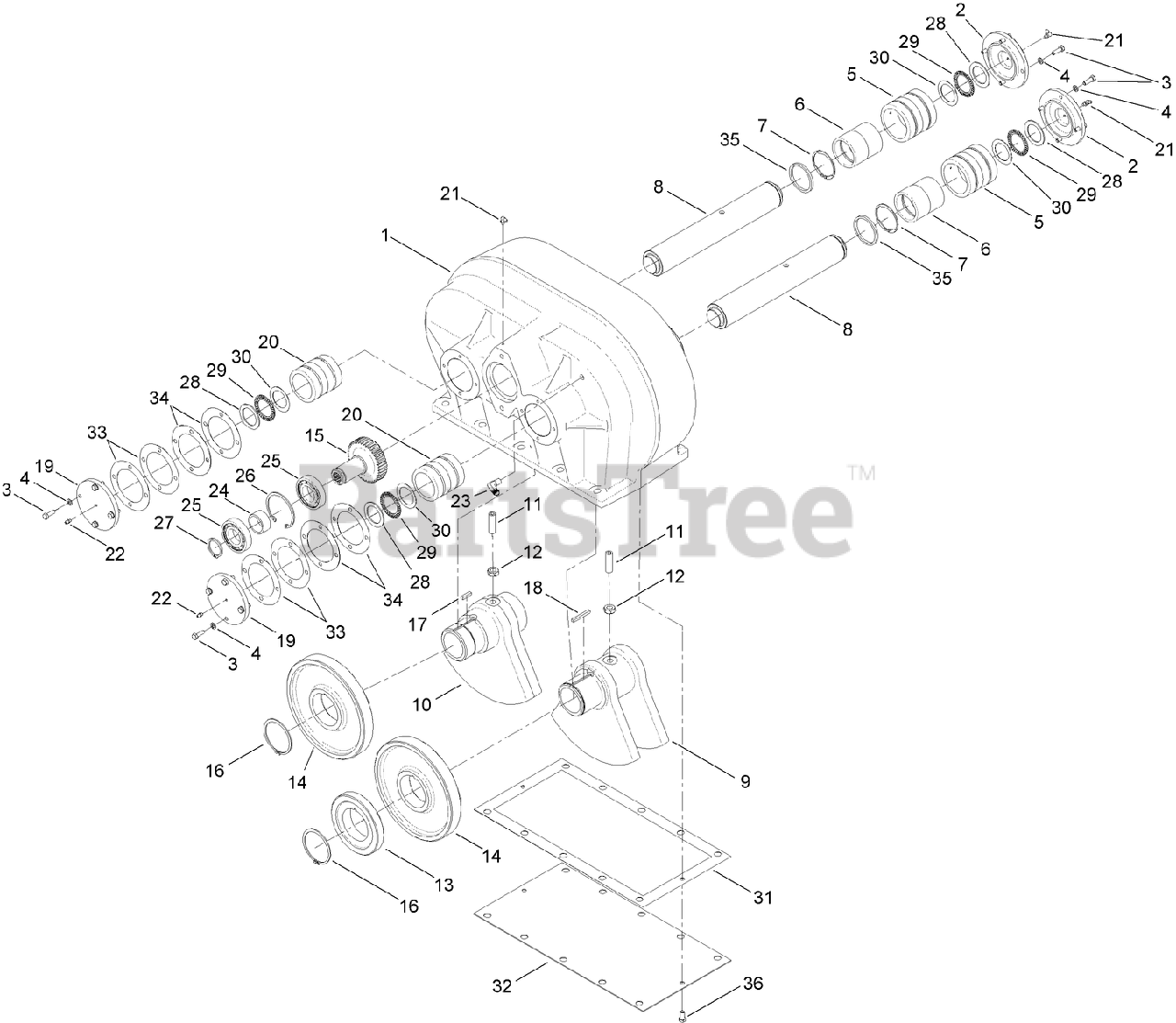

SHAKER BOX ASSEMBLY NO. 131-2856 Parts Diagram

  • Title
1

Toro AUH434378

CASE-GEAR

$

$

Currently unavailable

2

Toro AU103329A1

CAP-BEARING, LARGE

$

$

Not available

3

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

4

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro AUH759123

BEARING-ROLLER (MATCHED SET)

$

$

Currently unavailable

6

Toro AUH759125

RACE-BEARING (MATCHED SET)

$

$

Currently unavailable

7

Toro AU100-18250

RING-RETAINING

$

$

Not available

8

$

$

Not available

9

Toro AUH438980

WEIGHT-SHAKER

$

$

Currently unavailable

10

Toro AUH438979

WEIGHT-SHAKER

$

$

Currently unavailable

11

Toro AU83-66232

SCREW-HSH

$

$

Currently unavailable

12

Toro AU425-1410

NUT-HEX, JAM

$3.99

$

Usually ships in 3-6 days

0

13

Toro AUH434402

GEAR-DRIVEN

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Toro AU441876A1

GEAR-DRIVE

$

$

Currently unavailable

16

Toro AU100-11325

RING-RETAINING

$

$

Not available

17

$38.99

$

Usually ships in 3-6 days

0

$

$

Currently unavailable

19

Toro AUH436676

CAP-BEARING

$

$

Not available

20

Toro AUH759124

BEARING-ROLLER (MATCHED SET)

$

$

Currently unavailable

21

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

22

Toro 302-57

FITTING-GREASE

$1.99

$

Usually ships in 3-6 days

0

23

Toro AU222-763

FITTING-ELBOW, 90 DEG

$

$

Not available

24

$66.99

$

Usually ships in 3-6 days

0

25

Toro AUH753194

BEARING

$233.99

$

Usually ships in 3-6 days

0

26

Toro 32151-76

RING-RETAINING, INTERNAL

$6.99

$

Usually ships in 3-6 days

0

27

Toro 32151-102

RING-RETAINING, EXTERNAL

$6.49

$

Usually ships in 3-6 days

0

28

Toro AUH147793

WASHER-THRUST

$

$

Not available

29

Toro AUA54022

BEARING-THRUST, NEEDLE

$

$

Currently unavailable

30

Toro AUH147785

WASHER-THRUST

$

$

Currently unavailable

31

$

$

Currently unavailable

32

Toro AUH436310

PLATE-COVER, GEARBOX

$

$

Not available

33

Toro AUH151779

GASKET-COVER

$

$

Currently unavailable

34

Toro AUH151787

GASKET-COVER

$

$

Currently unavailable

35

$

$

Currently unavailable

36

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0
