25456 - Toro 48" Rock Boom, RT1200 Trencher 48 INCH ROCK BOOM ASSEMBLY Parts Diagram

48" Rock Boom, RT1200 Trencher

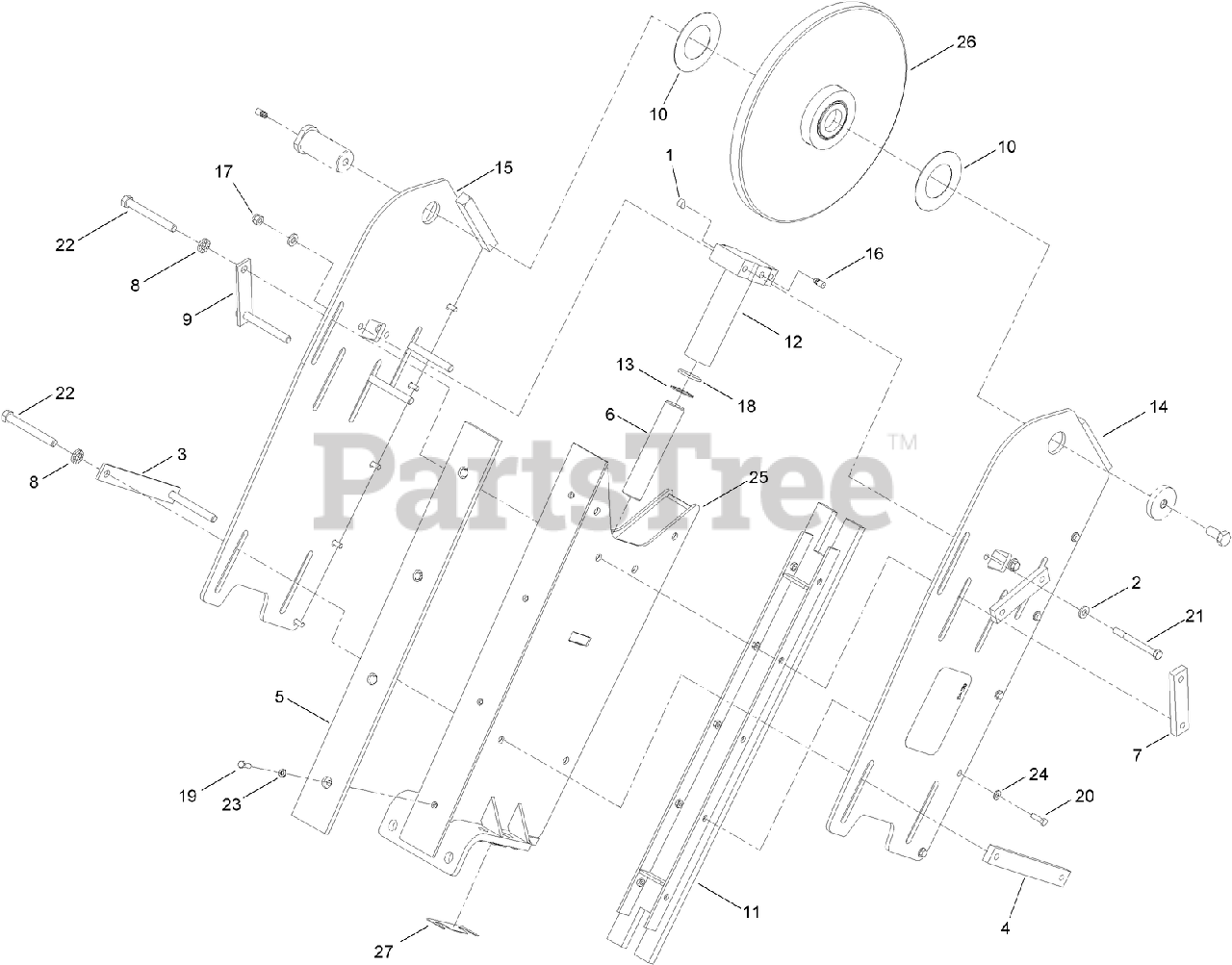

48 INCH ROCK BOOM ASSEMBLY Parts Diagram

  • Title

1

Toro AUH114728

PLUG-BLEED

$20.99

$

Usually ships in 3-6 days

0

2

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

3

Toro AUH434510

BAR-WASHER, LONG

$

$

Currently unavailable

4

Toro AUH434511

BAR-TAPPED, LONG

$

$

Currently unavailable

5

Toro AUH434549-03

BAR-WEAR PAD, 4 FT.

$

$

Currently unavailable

6

Toro AUH434551

ROD-BOOM, END (CYLINDER)

$

$

Currently unavailable

7

Toro AUH434555

BAR-TAPPED, SHORT
(Superseded to AUH434555-03)

$

$

Not available

8

Toro AUH434670

WASHER-LOCK

$

$

Not available

9

Toro AUH434671

BAR-WASHER, SHORT

$

$

Currently unavailable

10

Toro AUH435229

WASHER-BOOM, END (ROLLER)

$

$

Currently unavailable

11

Toro AUH672693-03

CHANNEL-WEAR PAD, 4 FT

$

$

Not available

12

Toro AUH672695-03

CYLINDER ASM (BOOM END)

$

$

Not available

13

Toro AUH755009

WASHER-BACKUP

$6.99

$

Usually ships in 3-6 days

0

14

Toro 127-1873

LH END BOOM PLATE ASM

$

$

Not available

15

Toro 127-1874

RH END BOOM PLATE ASM

$

$

Not available

16

Toro AU219-66

FITTING-LUBE, STRAIGHT

$15.99

$

Usually ships in 3-6 days

0

17

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

18

Toro AU238-6327

O-RING

$10.99

$

Usually ships in 3-6 days

0

19

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 323-44

SCREW-HH

$5.49

$

In Stock, Qty 11

0

21

Toro AU426-880

BOLT

$

$

Not available

22

Toro 120-0923

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

23

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

24

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

25

Toro AU110261-03

BOOM-ROCK, 4 FT

$3273.99

$

Usually ships in 3-6 days

0

26

Toro AUH672962

BOOM END ASM

$

$

Currently unavailable

27

Toro AU251337A1

SHIM

$

$

Currently unavailable
