25454 - Toro Sliding Attachment Kit for RT1200 Trencher (SN: 315000001 - 315999999) (2015) SLIDE MOUNT AND SLIDE SHIFT ASSEMBLY Parts Diagram

Sliding Attachment Kit for RT1200 Trencher

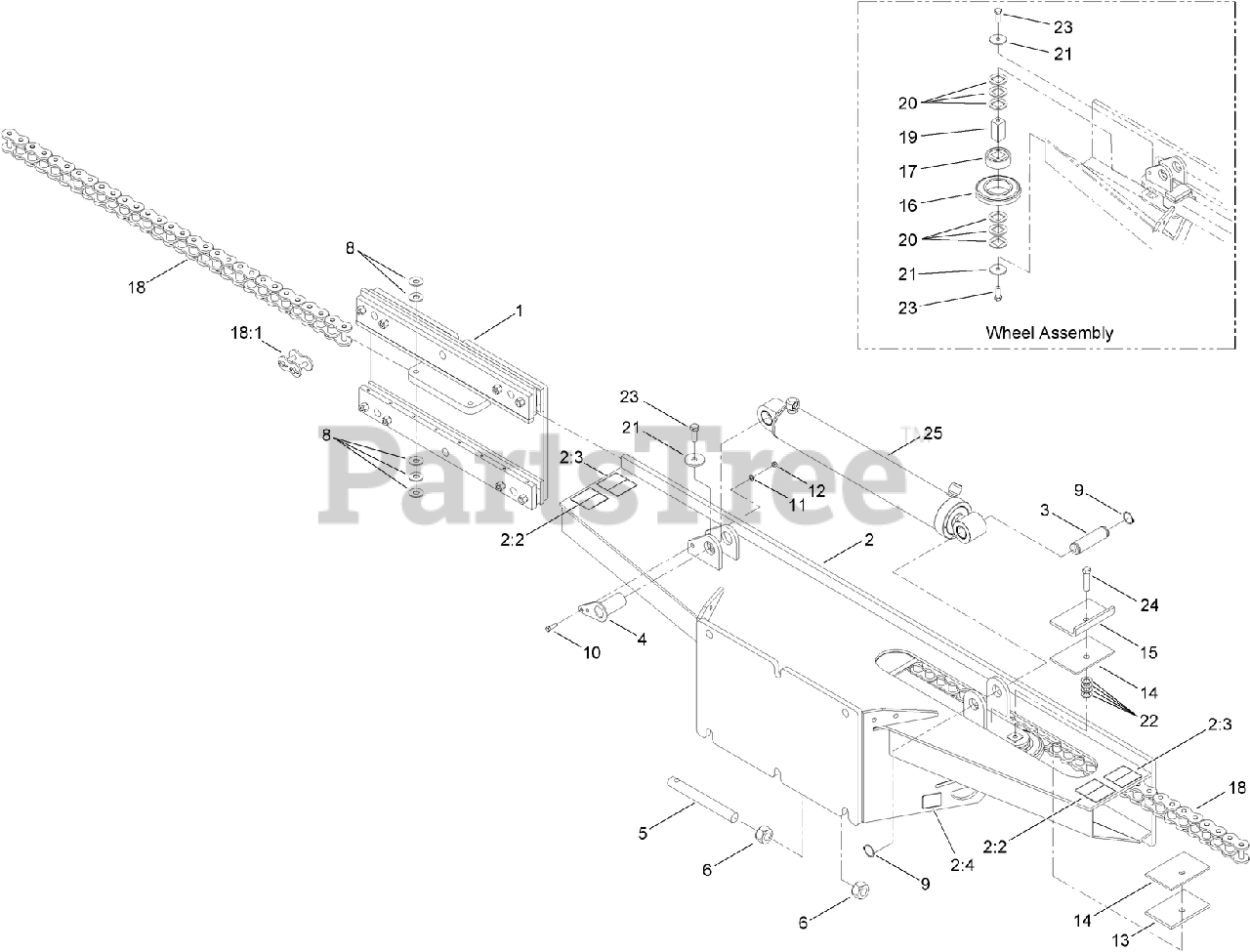

SLIDE MOUNT AND SLIDE SHIFT ASSEMBLY Parts Diagram

  • Title
1

Toro AU100934

SLIDE MOUNT ASM

$

$

Currently unavailable

2

Toro 130-7459

SIDE SHIFT ASM

$

$

Not available

2:2

Toro 125-6107

DECAL-WARNING, CRUSHING

$

$

Currently unavailable

2:3

Toro 125-6690

DECAL-DANGER, CRUSHING

$

$

Currently unavailable

2:4

Toro 125-6694

DECAL-TIE DOWN

$3.49

$

Usually ships in 3-6 days

0

3

Toro AU221253A1

PIN-PIVOT

$236.99

$

Usually ships in 3-6 days

0

4

Toro AUH672354

PIN-BOOM (CYLINDER)

$341.99

$

Usually ships in 3-6 days

0

5

Toro AU101012

ROD-THREADED

$

$

Currently unavailable

6

Toro AU425-1020

NUT-HEX

$

$

Currently unavailable

8

Toro AU495-21069

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

9

Toro 32151-35

RING-RETAINING, EXTERNAL

$10.99

$

Usually ships in 3-6 days

0

10

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

12

Toro AU129-770

NUT-HEX

$5.99

$

Usually ships in 3-6 days

0

13

Toro AU101257-03

PLATE-SLIDE

$

$

Currently unavailable

14

Toro AU101258

SHEET-WEAR STRIP

$

$

Currently unavailable

15

Toro AU101350-03

PLATE-SLIDE, UPPER

$

$

Currently unavailable

16

Toro AU101805

WHEEL-BOOM END, IDLER
(Superseded to 127-1070)

$1333.99

$

Usually ships in 3-6 days

0

17

Toro AUH747444

BEARING

$105.99

$

Usually ships in 3-6 days

0

18

Toro AU100969

CHAIN ASM

$

$

Currently unavailable

18:1

Toro AU102291

LINK-MASTER

$

$

Currently unavailable

19

Toro AU100699

BAR-AXLE, ROLLER

$217.99

$

Usually ships in 3-6 days

0

20

Toro AU100700

WASHER

$15.99

$

Usually ships in 3-6 days

0

21

$27.99

$

Usually ships in 3-6 days

0

22

Toro AU495-11066

WASHER-FLAT

$9.99

$

Usually ships in 3-6 days

0

23

Toro AU426-1028

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

24

Toro 110-4614

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

25

Toro 130-7464

HYD CYLINDER ASM

$

$

Currently unavailable
