25452 - Toro Backhoe for RT1200 Trencher (SN: 314000001 - 314999999) (2014) SWING TOWER AND BOOM LATCH ASSEMBLY Parts Diagram

Backhoe for RT1200 Trencher

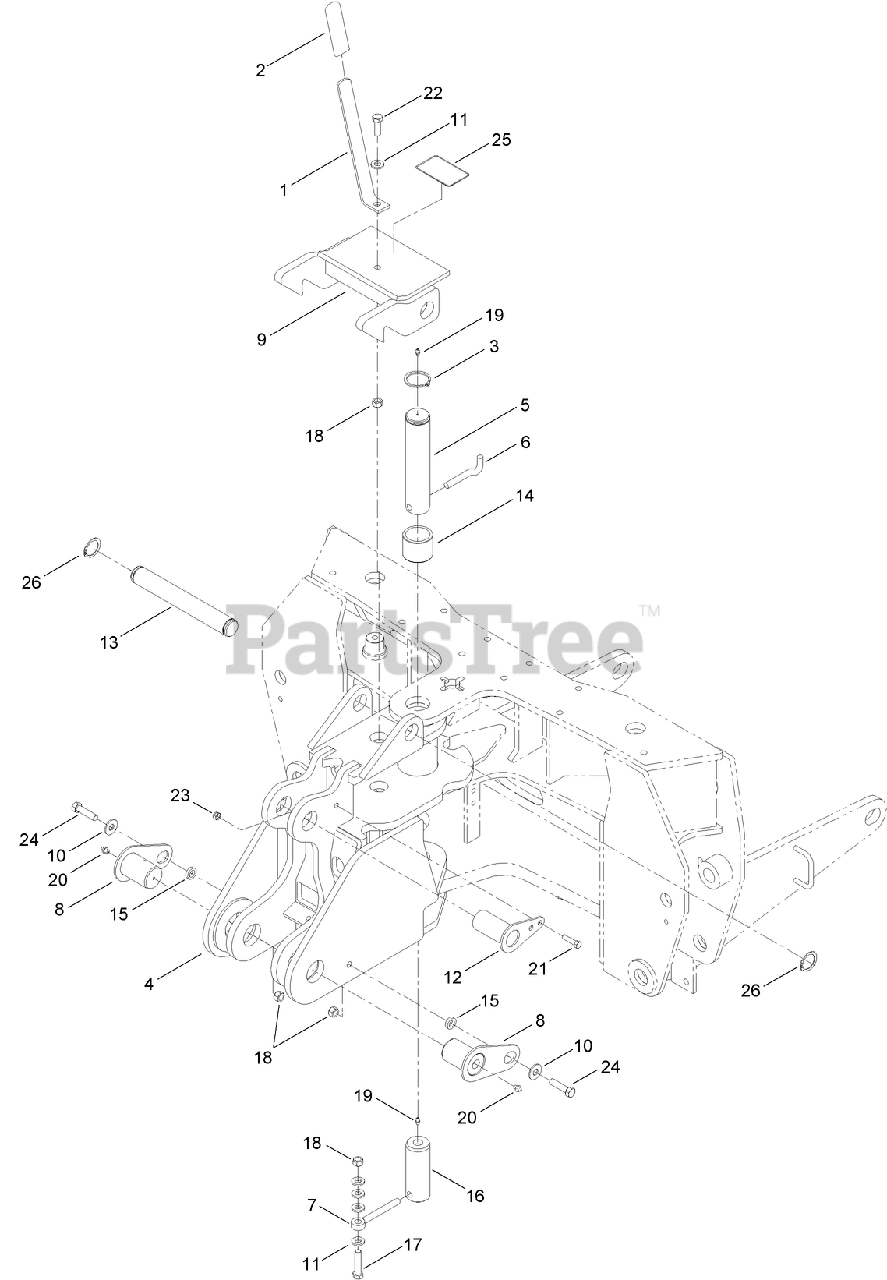

SWING TOWER AND BOOM LATCH ASSEMBLY Parts Diagram

  • Title

1

Toro AUH436021-03

HANDLE

$

$

Currently unavailable

2

Toro AUH33332

GRIP-HANDLE

$11.99

$

Usually ships in 3-6 days

0

3

Toro AU103-16200

RING-RETAINING, EXTERNAL

$4.99

$

Usually ships in 3-6 days

0

4

Toro AU113171A1-03

TOWER-SWING

$

$

Currently unavailable

5

Toro AUH437960

PIN (TOP SWING PIVOT)

$

$

Currently unavailable

6

Toro AUH433937

PIN-RETAINER

$

$

Currently unavailable

7

Toro AUL109671

PIN-RETAINER

$

$

Currently unavailable

8

Toro AU108463

PIN (BOOM PIVOT)

$

$

Currently unavailable

9

Toro AUH672500-03

LATCH-LOCK, BOOM

$

$

Currently unavailable

10

Toro AU495-81163

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

12

Toro AUH672354

PIN-BOOM (CYLINDER)

$341.99

$

Usually ships in 3-6 days

0

13

Toro AUH434125

PIN (LATCH TO SWING TOWER)

$

$

Currently unavailable

14

Toro AUD33023

BUSHING

$

$

Currently unavailable

15

Toro AU108466

SPACER-PIN

$

$

Currently unavailable

16

Toro AUH437959

PIN (LOWER SWING PIVOT)

$

$

Currently unavailable

17

Toro 60-9870

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

18

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 13

0

19

Toro 302-57

FITTING-GREASE

$1.99

$

Usually ships in 3-6 days

0

20

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 19

0

21

Toro 323-43

SCREW-HH
(Superseded to 3251-12)

$0.99

$

Usually ships in 3-6 days

0

22

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

23

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

24

Toro SG271517

SCREW-HH

$10.99

$

Usually ships in 3-6 days

0

25

Toro 125-8476

DECAL-OPERATOR PRESENCE

$

$

Currently unavailable

26

Toro AUD25279

RING

$20.99

$

Usually ships in 3-6 days

0
