25452 E - Toro Backhoe for RT1200 Trencher (SN: 314000001 - 314999999) (2014) HYDRAULIC PLUMBING ASSEMBLY Parts Diagram

Backhoe for RT1200 Trencher

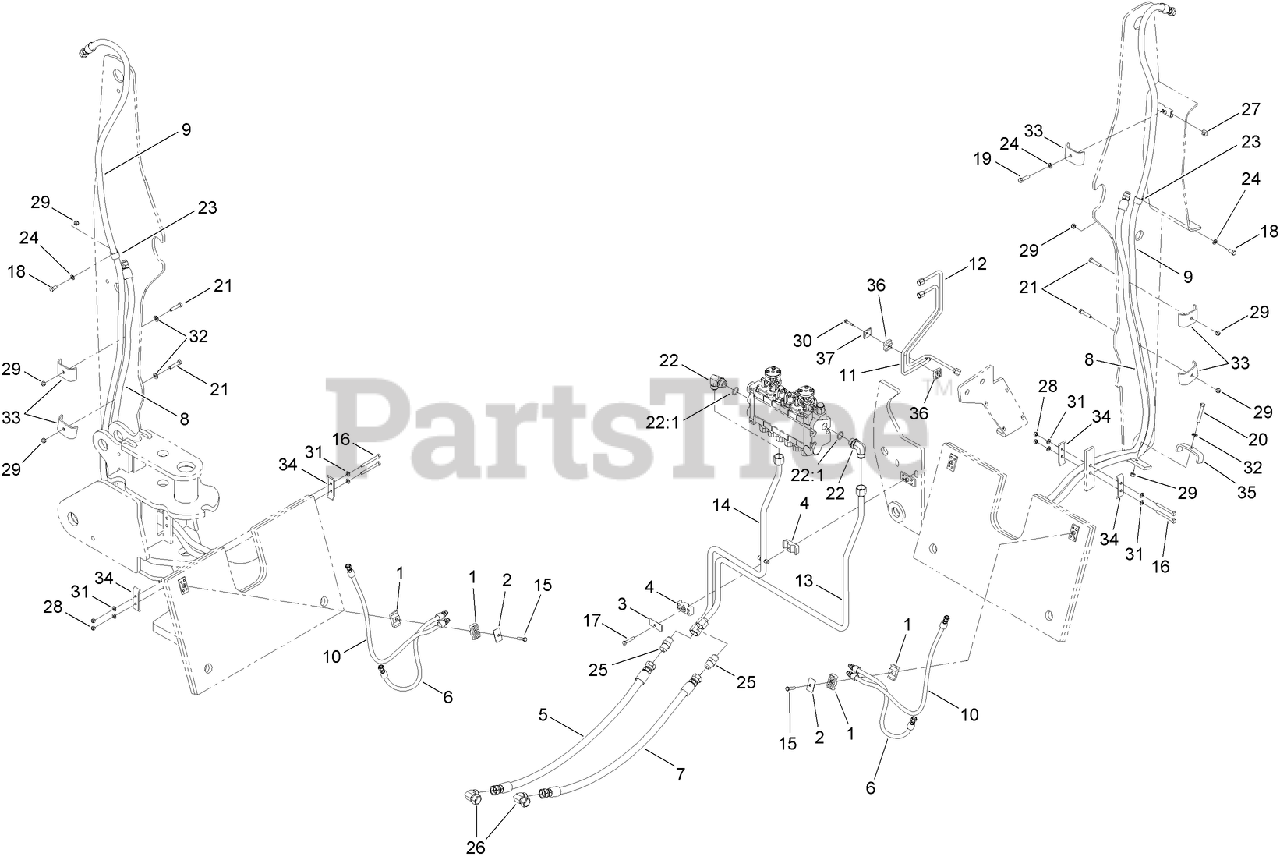

HYDRAULIC PLUMBING ASSEMBLY Parts Diagram

  • Title
1

Toro 56-7976

CLAMP-TUBE

$2.99

$

Usually ships in 3-6 days

0

2

Toro 69-9760

COVERPLATE

$7.49

$

Usually ships in 3-6 days

0

3

Toro 69-9761

PLATE-COVER

$10.99

$

Usually ships in 3-6 days

0

4

Toro 94-8105

CLAMP-TUBE

$6.99

$

In Stock, only 1 left!

0

5

Toro 130-7482

HOSE ASM

$

$

Currently unavailable

6

Toro 130-7483

HOSE ASM (LEFT CYLINDER)

$

$

Currently unavailable

7

Toro 130-7487

HOSE ASM (VALVE)

$

$

Currently unavailable

8

Toro 130-7489

HOSE ASM (DIPPER)

$

$

Currently unavailable

9

Toro 130-7490

HOSE ASM (DIPPER)

$

$

Currently unavailable

10

Toro 130-7491

HOSE ASM

$

$

Currently unavailable

11

Toro 130-7521

TUBE ASM

$

$

Currently unavailable

12

Toro 130-7522

TUBE ASM

$

$

Currently unavailable

13

Toro 130-7527

TUBE ASM

$

$

Currently unavailable

14

Toro 130-7528

TUBE ASM

$

$

Currently unavailable

15

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

16

Toro 322-20

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

17

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

18

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

19

Toro 323-43

SCREW-HH
(Superseded to 3251-12)

$0.99

$

Usually ships in 3-6 days

0

20

Toro 323-47

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

21

Toro 323-52

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

22

Toro 353-369

FITTING-ELBOW, 90 DEG

$71.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

23

Toro 2412-39

CLAMP-R

$10.99

$

Usually ships in 3-6 days

0

24

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

25

$

$

Not available

26

Toro AU218-5231

FITTING-ELBOW, 90

$20.99

$

Usually ships in 3-6 days

0

27

Toro AU224-2246

NUT-SQUARE

$0.99

$

Usually ships in 3-6 days

0

28

Toro AU232-4115

NUT-HEX

$

$

Not available

29

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

30

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 9

0

31

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

32

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

33

Toro AUH231894

RETAINER-HOSE

$

$

Currently unavailable

34

Toro AUH233304

STRAP-ANGLE

$

$

Currently unavailable

35

Toro AUH433518

CLAMP-HOSE, RETAINER

$

$

Currently unavailable

36

Toro 56-7973

CLAMP-TUBE

$18.99

$

In Stock, only 1 left!

0

37

Toro 127-8424

PLATE-CLAMP, RETAINER

$2.99

$

Usually ships in 3-6 days

0
