25450 W (RT 1200) - Toro Trencher (SN: 315000001 - 315999999) (2015) FAN DRIVE VALVE AND FLOW DIVIDER ASSEMBLY Parts Diagram

Trencher

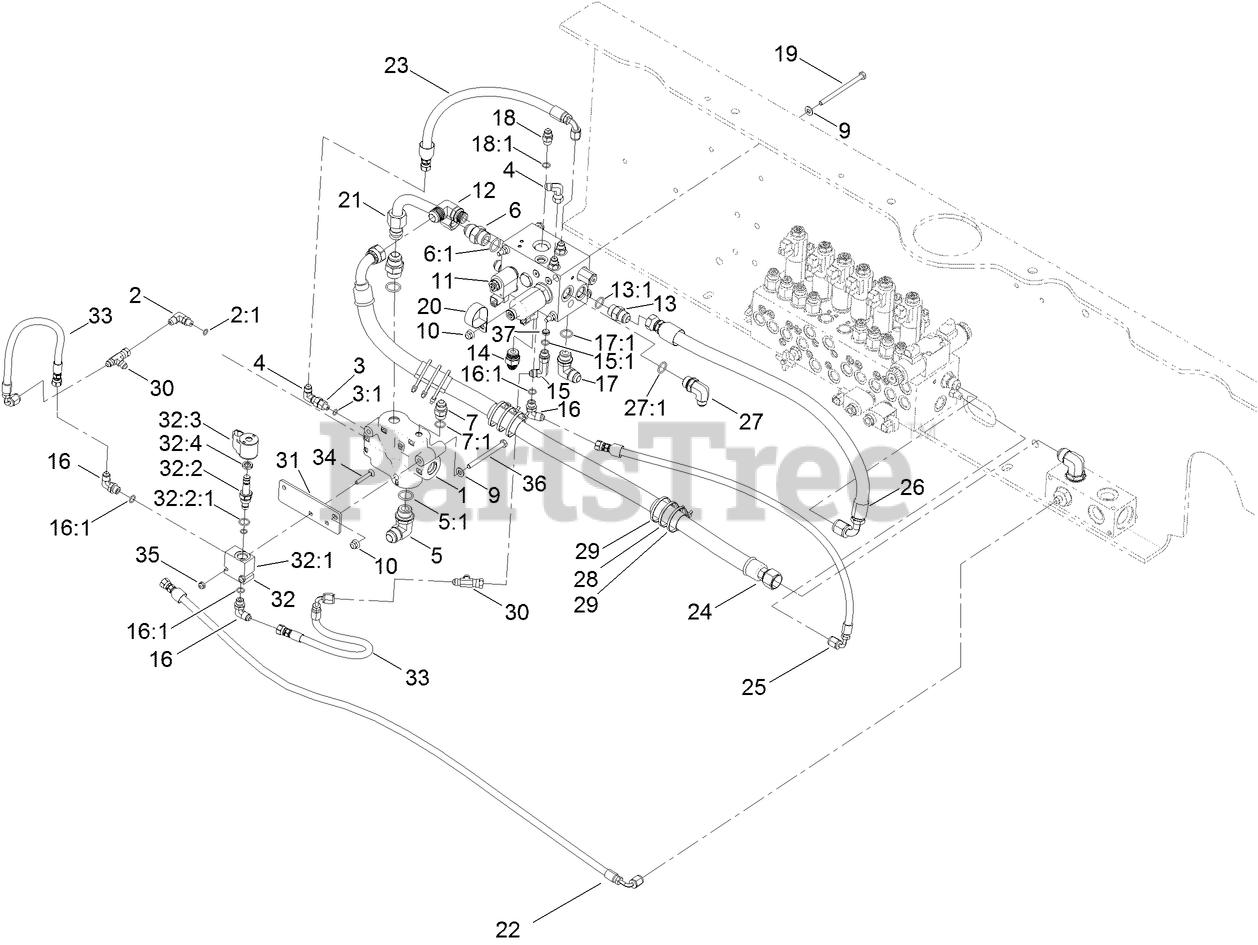

FAN DRIVE VALVE AND FLOW DIVIDER ASSEMBLY Parts Diagram

  • Title

1

Toro AU115763

VALVE-FLOW DIVIDER, PRIORITY

$

$

Currently unavailable

2

Toro AU218-5278

ELBOW-90, ADJ

$

$

Not available

2:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

3

Toro AU218-5352

ADAPTER-STRAIGHT

$6.49

$

Usually ships in 3-6 days

0

3:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

4

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

5

Toro 353-369

FITTING-ELBOW, 90 DEG

$71.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

6

Toro AU218-5064

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

7

Toro 353-388

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

9

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

10

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

11

Toro AU115768

VALVE-FAN DRIVE

$

$

Currently unavailable

12

Toro 95-0581

FITTING-ELBOW, 90 DEG

$58.99

$

Usually ships in 3-6 days

0

13

Toro 353-385

FITTING-STRAIGHT

$25.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

14

Toro 353-433

FITTING-STRAIGHT

$

$

Not available

15

Toro 92-3505

FITTING-ADAPTOR, 90 DEG

$48.99

$

Usually ships in 3-6 days

0

15:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

16

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$23.99

$

In Stock, only 2 left!

0

16:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

17

Toro 353-370

FITTING-ELBOW, 90 DEG

$78.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

18

Toro 353-384

FITTING-STRAIGHT

$7.49

$

Usually ships in 3-6 days

0

18:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

19

Toro 33114-120

SCREW-HH

$11.99

$

Usually ships in 3-6 days

0

20

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

21

Toro AU122191

TUBE

$

$

Currently unavailable

22

Toro 125-6801

HYD HOSE ASM

$

$

Currently unavailable

23

Toro 125-6805

HYD HOSE ASM

$

$

Currently unavailable

24

Toro 125-6857

HYD RETURN HOSE ASM

$

$

Currently unavailable

25

Toro 125-6789

HYD HOSE ASM

$

$

Currently unavailable

26

Toro 125-6870

HYD HOSE ASM

$

$

Currently unavailable

27

Toro 353-426

FITTING-90 DEG

$31.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

28

Toro AU112950

PROTECTOR-HOSE

$29.99

$

Usually ships in 3-6 days

0

29

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

30

Toro 353-877

FITTING-HYD, TEE

$24.99

$

Usually ships in 3-6 days

0

31

Toro 131-2846-03

PLATE-MOUNTING, VALVE

$

$

Currently unavailable

32

Toro 131-2884

VALVE-SOLENOID

$

$

Currently unavailable

32:1

Toro 131-2845

BODY, VALVE

$

$

Currently unavailable

32:2

Toro 107-7518

VALVE-SOLENOID

$219.99

$

Usually ships in 3-6 days

0

32:2:1

Toro 107-7527

SEAL KIT

$29.99

$

Usually ships in 3-6 days

0

32:3

Toro 119-8036

COIL

$100.99

$

In Stock, only 1 left!

0

32:4

Toro 105-9332

NUT-E COIL

$36.99

$

Usually ships in 3-6 days

0

33

Toro 125-6790

HOSE ASM

$

$

Currently unavailable

34

Toro 3229-5

SCREW-CARR

$1.49

$

In Stock, only 3 left!

0

35

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

36

Toro 33114-100

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

37

Toro 131-2882

ORIFICE-DISC

$

$

Currently unavailable
