25450 W (RT 1200) - Toro Trencher (SN: 314000001 - 314000500) (2014) HYDRAULIC TANK ASSEMBLY Parts Diagram

Trencher

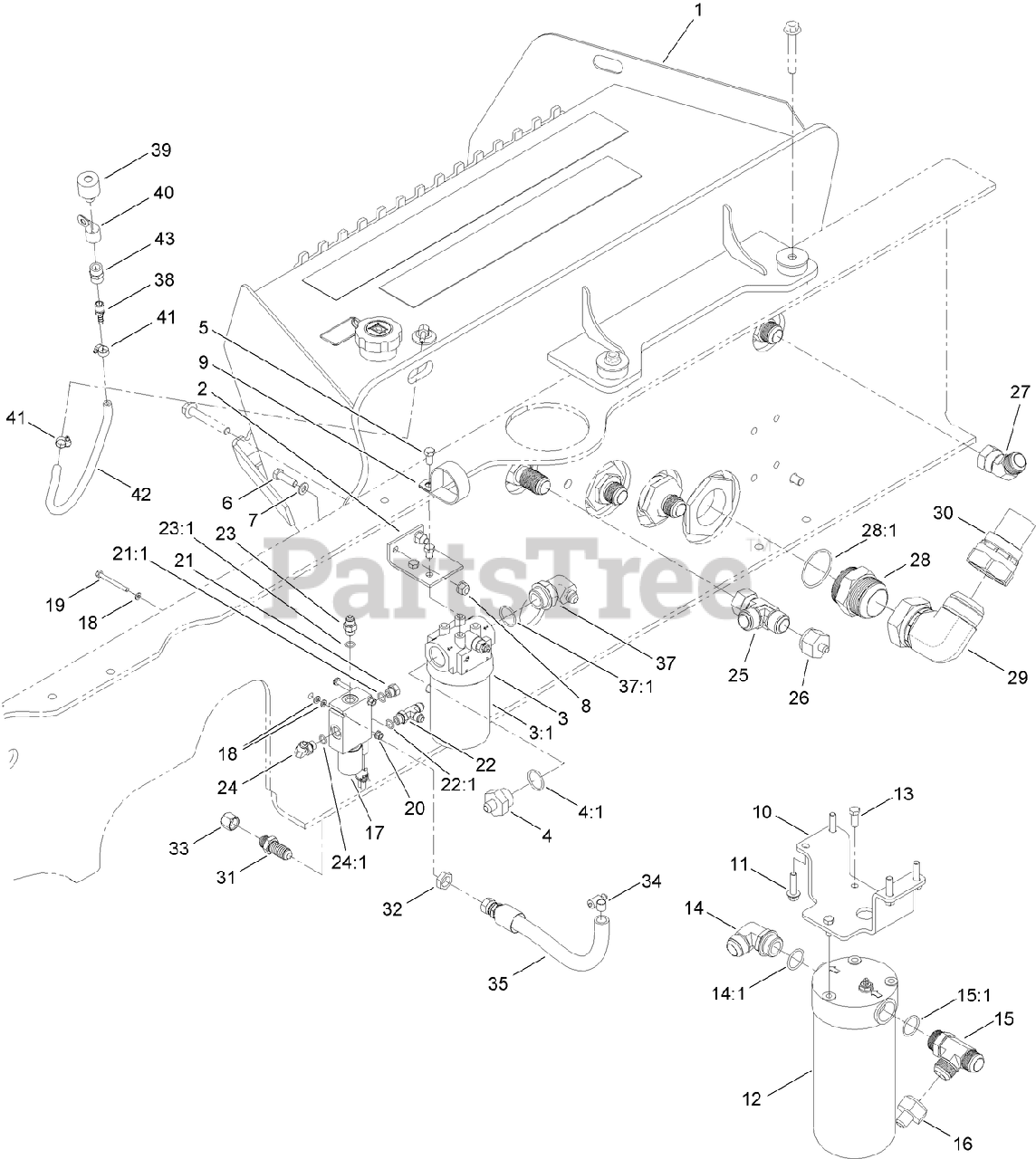

HYDRAULIC TANK ASSEMBLY Parts Diagram

  • Title

1

Toro AU118190

HYD TANK ASM

$

$

Currently unavailable

2

Toro AU111774A1-03

BRACKET-MOUNTING, FILTER

$60.99

$

Usually ships in 3-6 days

0

3

Toro AUD121629

OIL FILTER ASM

$234.99

$

Usually ships in 3-6 days

0

3:1

Toro 110-4146

FILTER-HYD

$60.99

$

In Stock, only 2 left!

0

4

Toro AU218-5071

CONNECTOR ASM

$

$

Currently unavailable

4:1

Toro 237-146

O-RING

$4.49

$

In Stock, Qty 8

0

5

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

6

Toro 33115-035

Screw-HH

$2.99

$

Usually ships in 3-6 days

0

7

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

8

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

9

Toro 110-6245

CLAMP-R

$14.99

$

Usually ships in 3-6 days

0

10

Toro 127-1862-03

BRACKET-FILTER

$

$

Currently unavailable

11

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

12

Toro AUH674791

HYD RETURN FILTER ASM

$

$

Not available

13

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro AU218-5110

ELBOW-90 DEG

$77.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-146

O-RING

$4.49

$

In Stock, Qty 8

0

15

Toro 130-7531

FITTING-TEE

$

$

Currently unavailable

15:1

Toro 237-146

O-RING

$4.49

$

In Stock, Qty 8

0

16

Toro AU91-2215-16-8S

ADAPTER-REDUCER

$

$

Currently unavailable

17

Toro AU187505C91

SOLENOID VALVE ASM

$235.99

$

Usually ships in 3-6 days

0

18

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

19

Toro 33113-060

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

21

Toro 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

21:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

22

Toro AU218-5243

FITTING-TEE

$29.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

23

Toro 353-384

FITTING-STRAIGHT

$6.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

24

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$22.99

$

In Stock, only 1 left!

0

24:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

25

Toro AU218-5223

TEE-SWIVEL

$41.99

$

Usually ships in 3-6 days

0

26

Toro AU218-724

REDUCER

$

$

Currently unavailable

27

Toro AU218-5176

FITTING-ELBOW, 45

$

$

Not available

28

Toro AU91-202702-32-3

ADAPTER

$

$

Currently unavailable

28:1

Toro 237-189

O-RING(3-932)

$3.49

$

Usually ships in 3-6 days

0

29

Toro AU91-2071-32-32S

ADAPTER-90 DEG

$

$

Currently unavailable

30

Toro 130-7530

FITTING-STRAIGHT

$

$

Currently unavailable

31

Toro AU218-674

UNION

$12.99

$

Usually ships in 3-6 days

0

32

Toro AU218-1255

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

33

Toro AU218-755

CAP

$

$

Not available

34

Toro AU214-1408

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

35

Toro 125-6882

HYD HOSE ASM, LP

$

$

Currently unavailable

37

Toro 131-0407

FITTING-ELBOW, 90

$

$

Currently unavailable

37:1

Toro 237-146

O-RING

$4.49

$

In Stock, Qty 8

0

38

Toro 115-1447

FITTING-STRAIGHT

$9.99

$

Usually ships in 3-6 days

0

39

Toro AU31543

BREATHER

$436.99

$

Usually ships in 3-6 days

0

40

Toro 2412-4

CLAMP-R

$5.49

$

Usually ships in 3-6 days

0

41

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

42

Toro 109-0296

HOSE-FUEL

$10.99

$

In Stock, only 4 left!

0

43

Toro AU217-1101

COUPLING-PIPE (NPTF)

$5.99

$

Usually ships in 3-6 days

0
