25450 C (RT 1200) - Toro Trencher (SN: 315000001 - 315999999) (2015) STEERING COLUMN AND HYDRAULIC PLUMBING ASSEMBLY Parts Diagram

Trencher

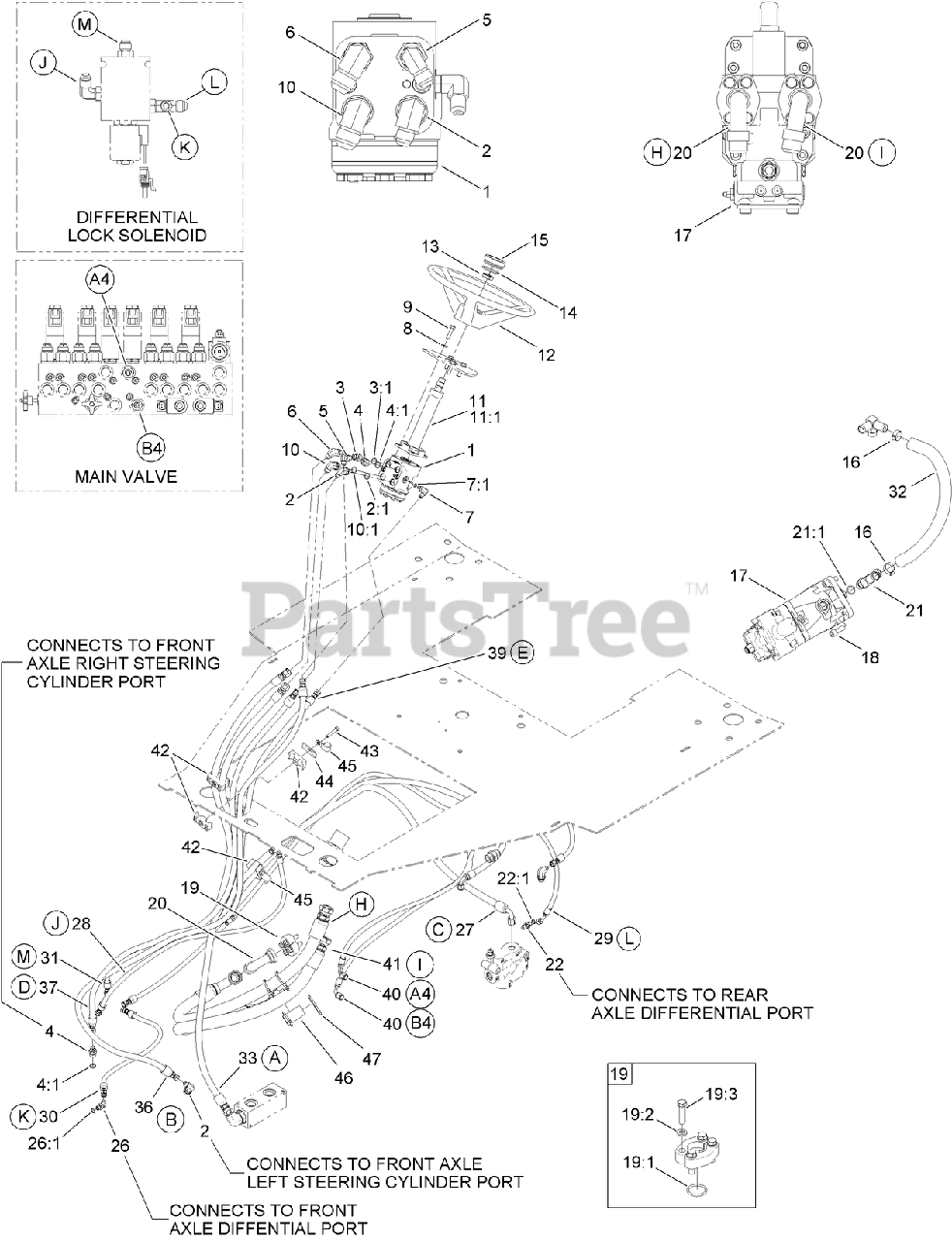

STEERING COLUMN AND HYDRAULIC PLUMBING ASSEMBLY Parts Diagram

  • Title

1

Toro AU115762

STEERING VALVE ASM

$

$

Currently unavailable

2

Toro 353-537

FITTING-ELBOW, 90 DEG

$12.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

3

Toro 353-388

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

3:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

4

Toro AU218-5058

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

4:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

5

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

6

Toro 01-201-2410

FITTING-ELBOW, 90

$35.99

$

Usually ships in 3-6 days

0

7

Toro AU218-5278

ELBOW-90, ADJ

$

$

Not available

7:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

8

Toro 100-4852

WASHER-HARDENED

$5.49

$

Usually ships in 3-6 days

0

9

Toro 323-43

SCREW-HH
(Superseded to 3251-12)

$0.99

$

Usually ships in 3-6 days

0

10

Toro 353-371

FITTING-ELBOW, 90
(Superseded to AU218-5106)

$13.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

11

Toro AUH672220

STEERING COLUMN ASM

$222.99

$

Usually ships in 3-6 days

0

11:1

Toro 120-2593

BOOT-RUBBER, BEARING

$14.99

$

Usually ships in 3-6 days

0

12

Toro AUA65544

WHEEL-STEERING

$500.99

$

Usually ships in 3-6 days

0

13

Toro AUF19646

NUT

$25.99

$

Usually ships in 3-6 days

0

14

Toro AU238-5227

O-RING

$0.99

$

Usually ships in 3-6 days

0

15

Toro AU114882A2

CAP-STEERING WHEEL

$90.99

$

Usually ships in 3-6 days

0

16

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 4 left!

0

17

Toro AU385343A2

HYD MOTOR ASM

$

$

Not available

18

Toro AU864-14040

SCREW-HSH

$

$

Currently unavailable

19

Toro AU114285A1

HYD FLANGE KIT

$79.99

$

Usually ships in 3-6 days

0

19:1

Toro 121-3904

O-RING

$7.49

$

Usually ships in 3-6 days

0

19:2

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

19:3

Toro AU113-372

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

20

Toro AUH439280

FITTING-ELBOW

$78.99

$

Usually ships in 3-6 days

0

21

Toro 131-0492

FITTING-TEE, RUN

$

$

Currently unavailable

21:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

22

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$23.99

$

In Stock, only 1 left!

0

22:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

26

Toro 353-212

FITTING-ELBOW, 45 DEG

$26.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

27

Toro 125-6804

HYD HOSE ASM, HP

$

$

Currently unavailable

28

Toro 125-6816

HYD HOSE ASM, HP

$

$

Currently unavailable

29

Toro 125-6817

HYD HOSE ASM, HP

$

$

Currently unavailable

30

Toro 125-6779

HYD HOSE ASM

$

$

Currently unavailable

31

Toro 125-6773

HYD HOSE ASM

$

$

Currently unavailable

32

Toro 131-0493

HOSE

$

$

Currently unavailable

33

Toro 125-6858

HYD HOSE ASM, HP

$

$

Currently unavailable

36

Toro 125-6862

HYD HOSE ASM, HP

$

$

Currently unavailable

37

Toro 130-7499

HYD HOSE ASM

$

$

Currently unavailable

39

Toro 125-6864

HYD HOSE ASM, HP

$

$

Currently unavailable

40

Toro 125-6879

HYD HOSE ASM, HP

$

$

Currently unavailable

41

Toro 125-6810

HYD HOSE ASM, HP

$

$

Currently unavailable

42

Toro 94-8105

CLAMP-TUBE

$6.99

$

In Stock, only 1 left!

0

43

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

44

Toro 69-9761

PLATE-COVER

$10.99

$

Usually ships in 3-6 days

0

45

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

46

Toro AU112950

PROTECTOR-HOSE

$29.99

$

Usually ships in 3-6 days

0

47

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
