25450 C (RT 1200) - Toro Trencher (SN: 315000001 - 315999999) (2015) MAIN VALVE AND MANIFOLD ASSEMBLY Parts Diagram

Trencher

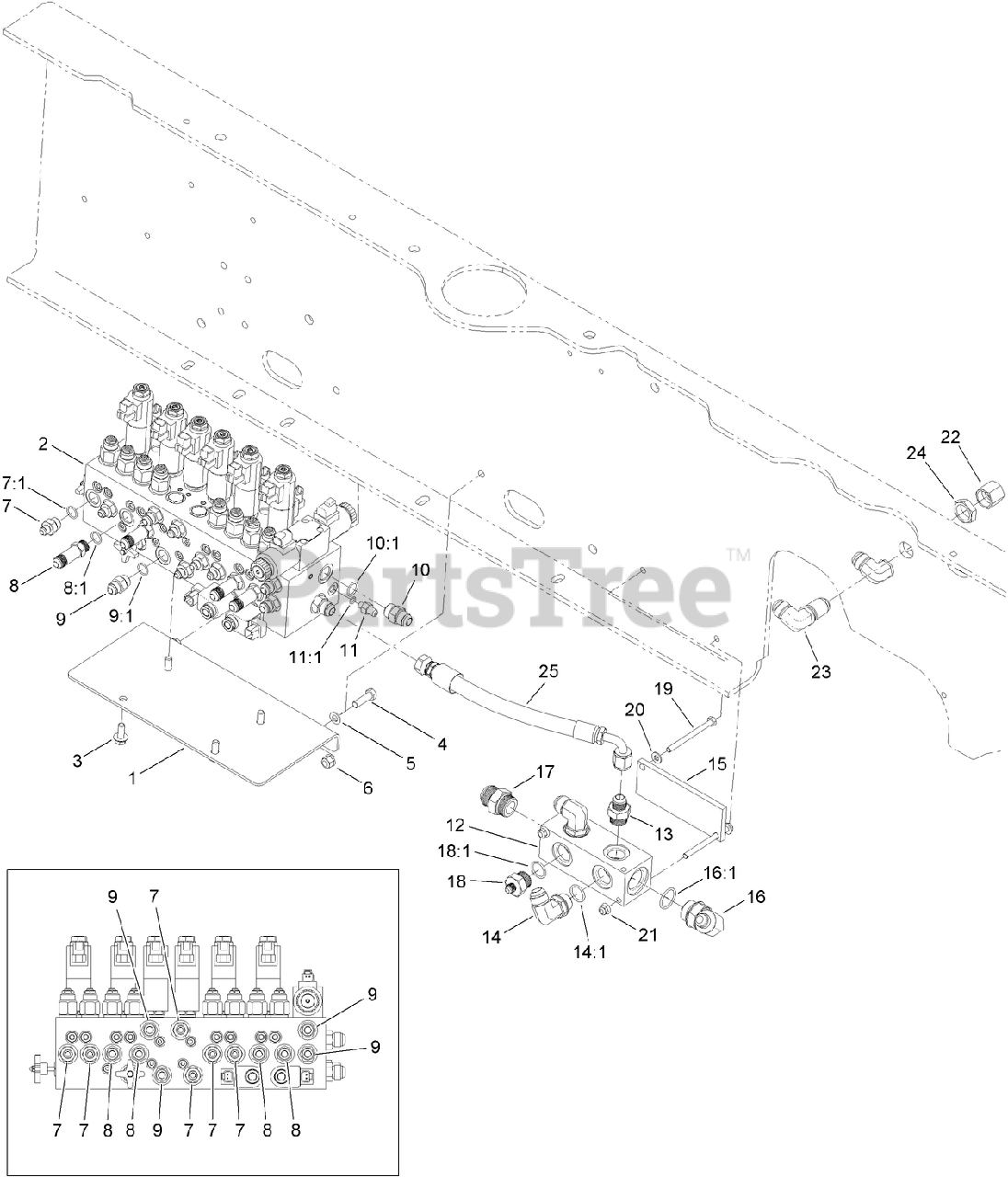

MAIN VALVE AND MANIFOLD ASSEMBLY Parts Diagram

  • Title
1

Toro AU121481-03

PLATE-MOUNT, FILTER

$

$

Currently unavailable

2

Toro 131-0421

MAIN VALVE ASM

$

$

Not available

3

Toro 33105-025

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

4

Toro 33115-035

Screw-HH

$2.99

$

Usually ships in 3-6 days

0

5

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

6

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

7

Toro AU218-5058

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

7:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

8

Toro 130-7462

FITTING-STRAIGHT, LONG

$

$

Currently unavailable

8:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

9

Toro 353-388

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

10

Toro 353-385

FITTING-STRAIGHT

$25.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

11

Toro AU218-5352

ADAPTER-STRAIGHT

$6.49

$

Usually ships in 3-6 days

0

11:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

12

Toro AU106457

MANIFOLD ASM (HYD RETURN)

$

$

Currently unavailable

13

Toro AU218-5063

FITTING-STRAIGHT

$14.99

$

Usually ships in 3-6 days

0

14

Toro 353-369

FITTING-ELBOW, 90 DEG

$71.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

15

$

$

Not available

16

Toro AU218-5130

ELBOW-90, ADJ

$120.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

17

Toro AU218-5069

FITTING-STRAIGHT

$10.99

$

Usually ships in 3-6 days

0

18

Toro AU218-5044

ADAPTER-STRAIGHT

$7.99

$

Usually ships in 3-6 days

0

18:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

19

Toro 33114-100

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

20

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

21

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

$7.99

$

Usually ships in 3-6 days

0

23

Toro AU218-696

FITTING-ELBOW, 90

$159.99

$

Usually ships in 3-6 days

0

24

Toro AU218-1256

NUT-LOCK, BULKHEAD

$3.99

$

Usually ships in 3-6 days

0

25

Toro 125-6856

HYD HOSE ASM, HP

$

$

Currently unavailable
