25450 C (RT 1200) - Toro Trencher (SN: 315000001 - 315999999) (2015) MAIN FRAME, HOOD AND FENDER MOUNTING ASSEMBLY Parts Diagram

Trencher

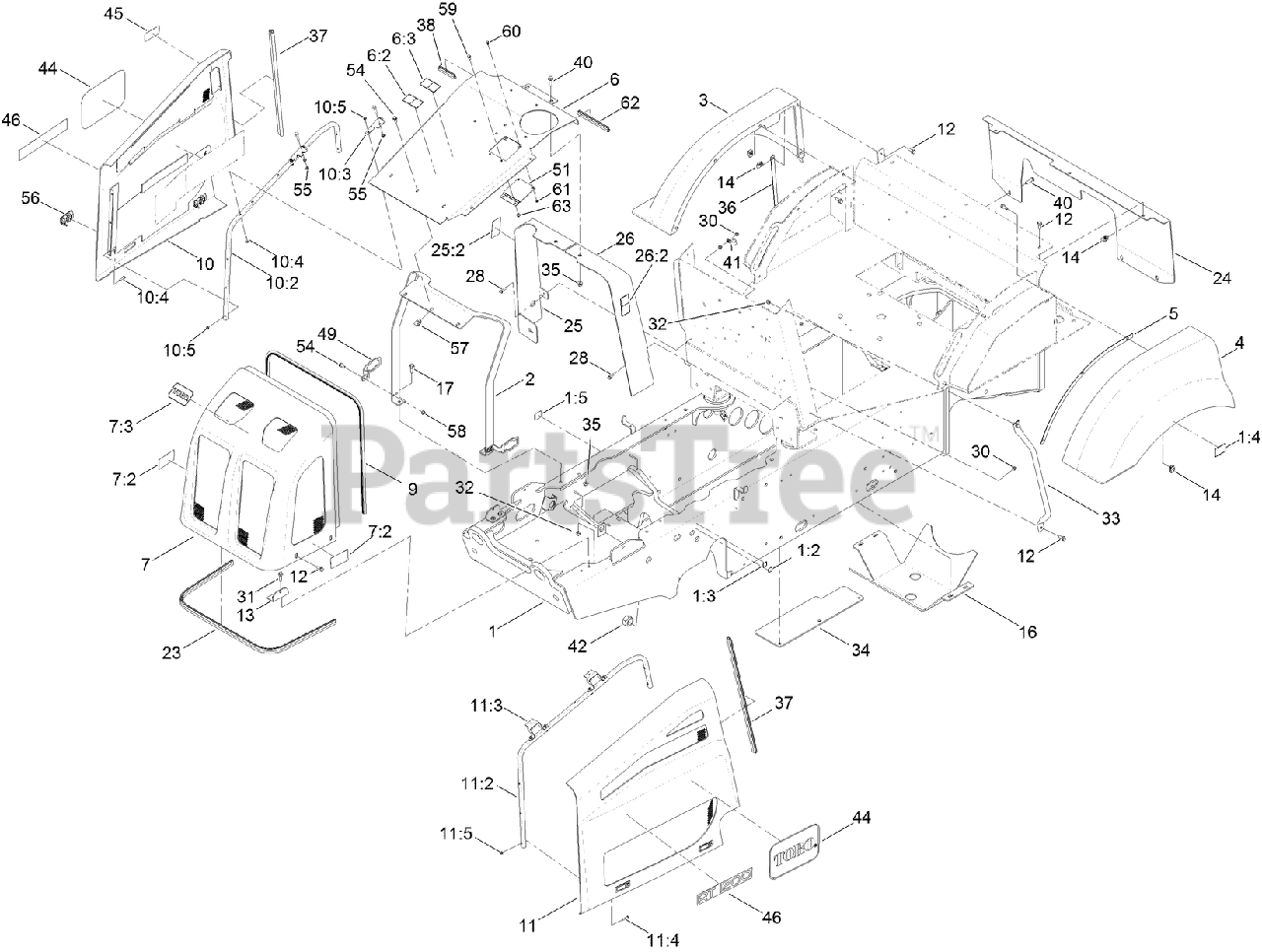

MAIN FRAME, HOOD AND FENDER MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 127-1705

MAIN FRAME ASM

$

$

Currently unavailable

1:2

Toro 125-8481

DECAL-FLUID, HYDRAULIC (OUT)

$

$

Currently unavailable

1:3

Toro 125-8482

DECAL-FLUID, HYDRAULIC (IN)

$

$

Currently unavailable

1:4

Toro 125-6139

DECAL-LIFT/TIE DOWN

$

$

Currently unavailable

1:5

Toro 127-1829

DECAL-DRAIN, OIL

$

$

Currently unavailable

2

Toro 131-1305-03

SUPPORT-HOOD

$

$

Not available

3

Toro AU118197

FENDER-RH

$

$

Currently unavailable

4

Toro AU118198

FENDER-LH

$

$

Currently unavailable

5

Toro AU118199-03

SUPPORT-FENDER

$

$

Not available

6

Toro 131-0476

HOOD PLATE ASM

$

$

Not available

6:2

Toro 125-4963

DECAL-SURFACE, HOT

$5.99

$

Usually ships in 3-6 days

0

6:3

Toro 125-8479

DECAL-WARNING, RADIATOR

$

$

Currently unavailable

7

Toro 127-1702

FRONT HOOD ASM

$

$

Currently unavailable

7:2

Toro 125-6689

DECAL-WARNING, FAN

$

$

Currently unavailable

7:3

Toro 67-1300

DECAL

$28.99

$

In Stock, only 2 left!

0

9

Toro 131-0443

SEAL-HOOD

$

$

Currently unavailable

10

Toro 131-1281

RH HOOD ASM

$

$

Currently unavailable

10:2

Toro 131-0462-03

TUBE-BENT

$

$

Currently unavailable

10:3

Toro 131-0454-03

BRACKET-HOOD

$

$

Currently unavailable

10:4

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

10:5

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 11

0

11

Toro 131-1282

LH HOOD ASM

$

$

Currently unavailable

11:2

Toro 131-0452-03

TUBE-BENT

$

$

Currently unavailable

11:3

Toro 131-0454-03

BRACKET-HOOD

$

$

Currently unavailable

11:4

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

11:5

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 11

0

12

Toro 33105-030

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

13

Toro AU119006-03

SUPPORT-COVER, ENGINE

$

$

Currently unavailable

14

Toro AU100863

NUT-U

$

$

Currently unavailable

16

Toro AU107716-03

PLATE-SKID

$

$

Currently unavailable

17

Toro 33106-035

SCREW-HHF

$12.99

$

Usually ships in 3-6 days

0

23

Toro AU112099

SEAL-BOTTOM, NOSE

$

$

Currently unavailable

24

Toro AU124404-03

PLATE-COVER, REAR

$

$

Currently unavailable

25

Toro 130-8411

SUPPORT MOUNT ASM

$

$

Currently unavailable

25:2

Toro 125-8480

DECAL-WARNING, NO RIDERS

$

$

Currently unavailable

26

Toro 130-8412

SUPPORT MOUNT ASM

$

$

Currently unavailable

26:2

Toro 125-8480

DECAL-WARNING, NO RIDERS

$

$

Currently unavailable

28

Toro 33104-035

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

30

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

31

Toro AU100331

SCREW-HHF

$

$

Currently unavailable

32

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

33

Toro 130-7458-03

HANDLE-OPERATOR

$

$

Currently unavailable

34

Toro AU109540-03

PLATE-SKID

$

$

Currently unavailable

35

Toro 115-1115

NUT-LOCK, HHF

$2.49

$

Usually ships in 3-6 days

0

36

Toro AU122083-03

PLATE-REINFORCEMENT, FENDER

$

$

Not available

37

Toro 127-1769

SEAL-HOOD

$

$

Currently unavailable

38

Toro 127-1770

SEAL-HOOD

$

$

Currently unavailable

40

Toro 33106-040

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

41

Toro 2412-4

CLAMP-R

$5.49

$

Usually ships in 3-6 days

0

42

Toro AU232-41120

NUT-HEX

$14.99

$

Usually ships in 3-6 days

0

44

Toro 114-0990

DECAL

$51.99

$

Usually ships in 3-6 days

0

45

Toro 125-4963

DECAL-SURFACE, HOT

$5.99

$

Usually ships in 3-6 days

0

46

Toro 127-1825

DECAL

$

$

Currently unavailable

49

Toro 131-1338-03

PLATE-BENT

$

$

Currently unavailable

51

Toro 131-0467-01

COVER ASM

$

$

Currently unavailable

54

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

55

Toro 121-4600

NUT-HEX

$1.49

$

In Stock, Qty 18

0

56

Toro AU50GB2302

LATCH-TRIGGER, RAISED (W/LOCK)

$

$

Not available

56:1

Toro 131-0148

KEY-REPLACEMENT

Note: Not illustrated

$

$

Currently unavailable

57

Toro 112-4576

NUT-CLIP, U
(Superseded to 105-4886)

$2.99

$

Usually ships in 3-6 days

0

58

Toro 119-4042

NUT-HEX FLG

$1.49

$

In Stock, Qty 13

0

59

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0

60

Toro 99-6810

SCREW-HHF

$3.49

$

In Stock, only 1 left!

0

61

Toro 106-8737

NUT-RETAINER
(Superseded to 32115-15)

$1.49

$

In Stock, Qty 20+

0

62

Toro 131-0478

SEAL-HOOD

$

$

Currently unavailable

63

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

65

Toro 3233-2

SCREW-CARR

Note: Not illustrated

$7.99

$

Usually ships in 3-6 days

0

66

Toro 99-5107

NUT-LOCK

Note: Not illustrated

$1.99

$

In Stock, Qty 20+

0

67

Toro 131-1302

FOIL-HEAT

Note: Not illustrated

$

$

Currently unavailable

68

Toro 117-2718

DECAL-ARRESTER, SPARK

Note: Not illustrated

$7.99

$

In Stock, only 1 left!

0

69

Toro 114-4681

SCREW-HHF

Note: Not illustrated

$3.49

$

Usually ships in 3-6 days

0
