25432 - Toro Heavy Duty Backhoe 125 for RT600 Traction Unit (SN: 314000001 - 314999999) (2014) BOOM ASSEMBLY Parts Diagram

Heavy Duty Backhoe 125 for RT600 Traction Unit

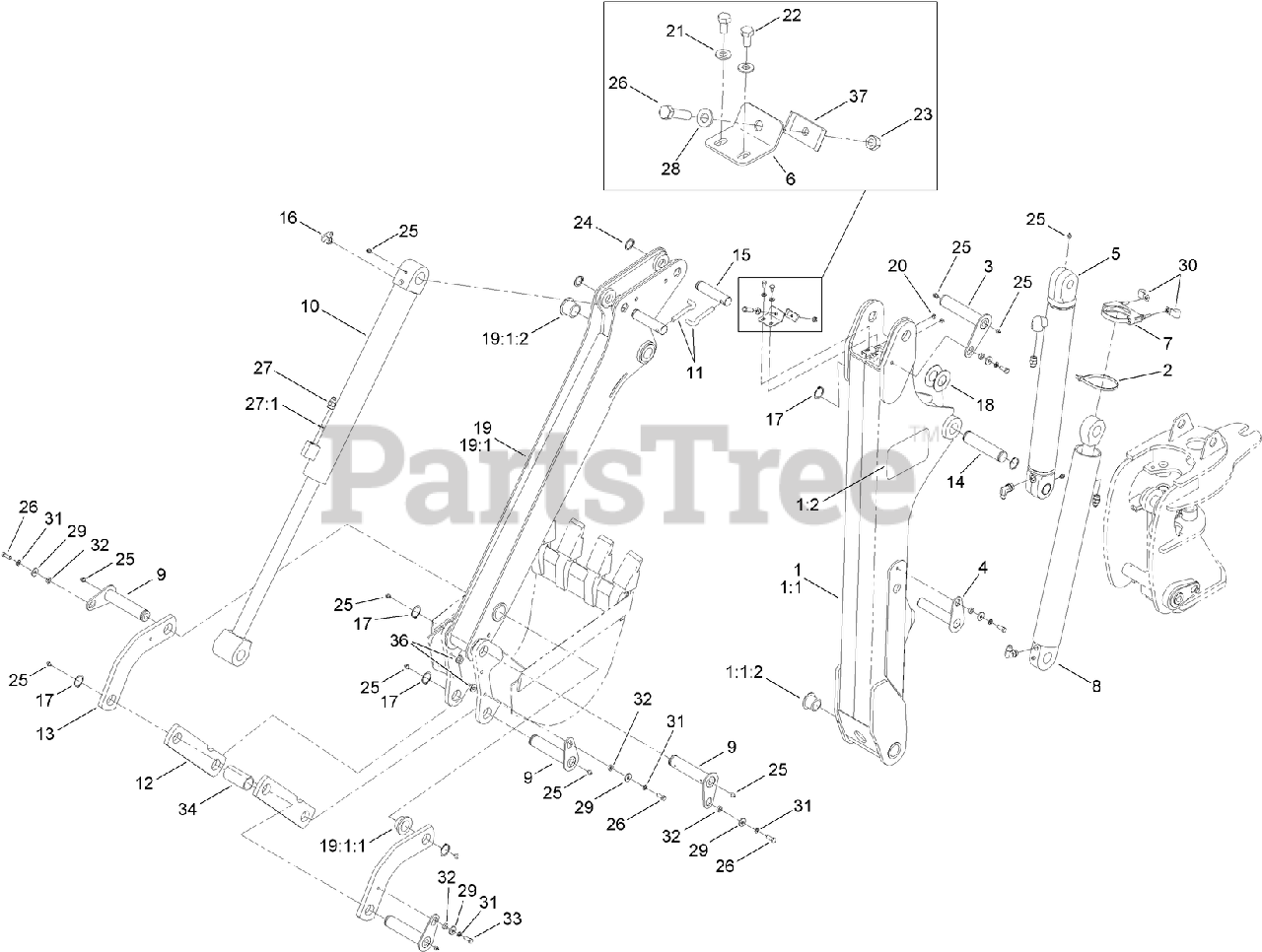

BOOM ASSEMBLY Parts Diagram

  • Title

1

Toro 127-1265

BOOM ASM

$

$

Currently unavailable

1:1

BOOM

Note: Not serviced separately

$

$

Not available

1:1:2

Toro AUH437317

BUSHING-PIVOT, BOOM

$

$

Currently unavailable

1:2

Toro 104-7213

DECAL

$31.99

$

Usually ships in 3-6 days

0

2

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

3

Toro AU111270

PIN-RETAINING

$

$

Not available

4

Toro AU111271

PIN-DIPPER CYLINDER TO BOOM

$

$

Not available

5

Toro AU123706

HYD CYLINDER ASM (DIPPER)

$

$

Not available

6

Toro AU253977A1-03

BRACKET

$

$

Currently unavailable

7

Toro AU304650A1

CLAMP

$

$

Currently unavailable

8

Toro AU305352A1

HYD CYLINDER ASM

$

$

Not available

9

Toro AU349180A1

PIN

$181.99

$

Usually ships in 3-6 days

0

10

Toro AU402216A1

HYD CYLINDER ASM (BUCKET)

$

$

Not available

11

Toro AUH433937

PIN-RETAINER

$

$

Currently unavailable

12

Toro AUH437313-03

LINK-STRAIGHT

$

$

Currently unavailable

13

Toro AUH437315-03

LINK-CURVED

$

$

Currently unavailable

14

Toro AUH437348

PIN

$

$

Currently unavailable

15

Toro AUH437349

PIN

$

$

Currently unavailable

16

Toro AUH439269

ELBOW-90 DEG

$

$

Currently unavailable

17

Toro 32151-35

RING-RETAINING, EXTERNAL

$10.99

$

Usually ships in 3-6 days

0

18

Toro AUH426437

WASHER

$

$

Currently unavailable

19

Toro AUH674676-03

DIPPER ASM

$

$

Currently unavailable

19:1

DIPPER

Note: Not serviced separately

$

$

Not available

19:1:1

Toro AUH433624

BUSHING-PIVOT, BUCKET

$66.99

$

Usually ships in 3-6 days

0

19:1:2

Toro AUH437301

BUSHING

$

$

Currently unavailable

20

Toro 119-4054

NUT-SQUARE

$3.99

$

Usually ships in 3-6 days

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

23

Toro 97-1204

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

24

Toro 32151-77

RING-RETAINING, EXTERNAL

$4.99

$

In Stock, only 1 left!

0

25

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

26

Toro 323-43

SCREW-HH
(Superseded to 3251-12)

$0.99

$

Usually ships in 3-6 days

0

27

Toro 353-388

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

28

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

29

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

30

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

31

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

32

Toro AU349192A1

SPACER

$13.99

$

Usually ships in 3-6 days

0

33

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

34

Toro AUH437316

SPACER-Bucket Links

$

$

Currently unavailable

36

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

37

Toro AUH434900

CLAMP-TUBE

$

$

Currently unavailable
