25432 - Toro Heavy Duty Backhoe 125 for RT600 Traction Unit (SN: 313000001 - 313999999) (2013) HYDRAULIC CYLINDER ASSEMBLY AU402216A1 Parts Diagram

Heavy Duty Backhoe 125 for RT600 Traction Unit

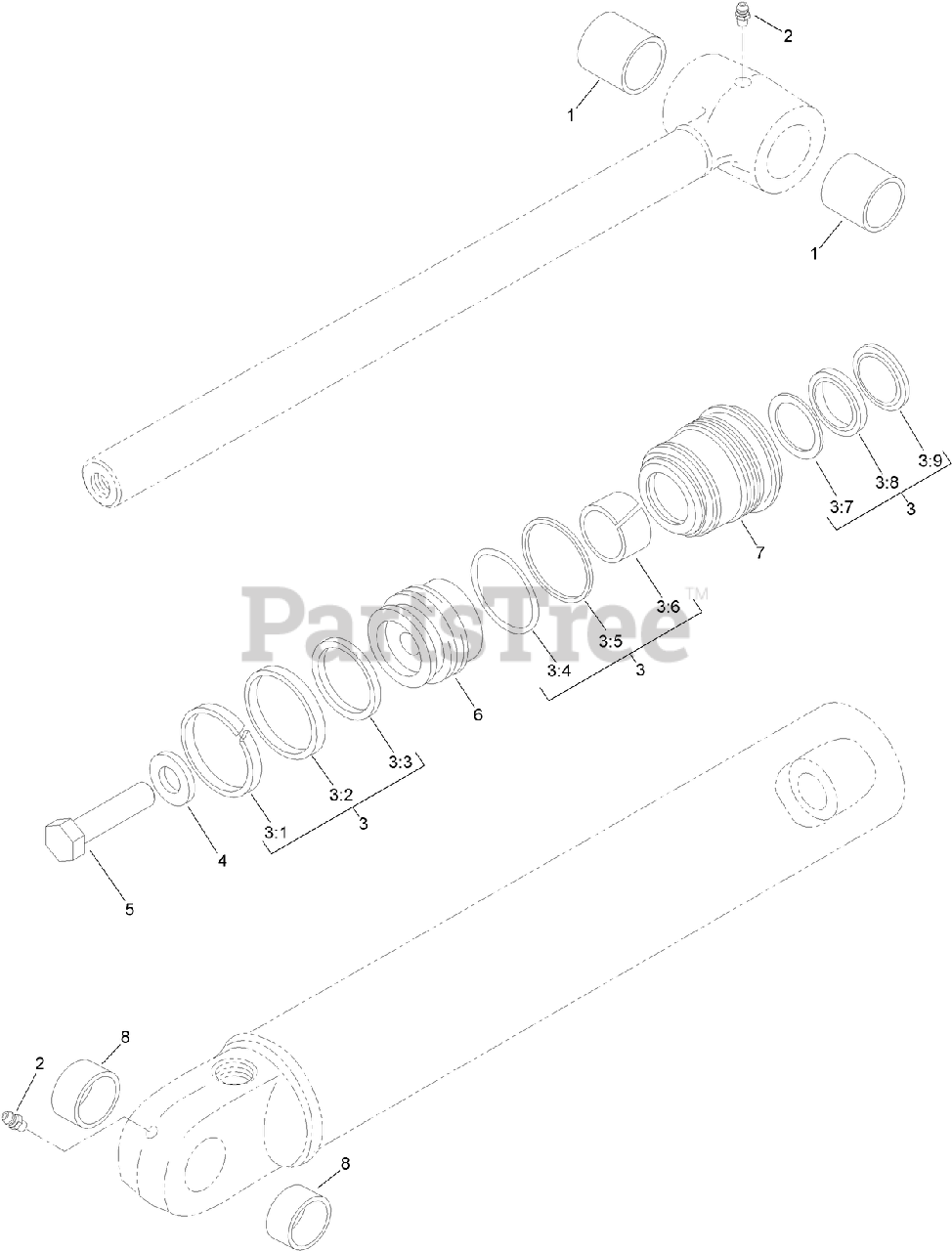

HYDRAULIC CYLINDER ASSEMBLY AU402216A1 Parts Diagram

  • Title
1

Toro AUD31141

BUSHING

$

$

Currently unavailable

2

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 19

0

3

Toro AU433774A1

SEAL KIT

$

$

Currently unavailable

3:1

RING-WEAR

Note: Not serviced separately

$

$

Not available

3:2

Seal-Piston

Note: Not serviced separately

$

$

Not available

3:3

Ring-Seal

Note: Not serviced separately

$

$

Not available

3:4

O-RING

Note: Not serviced separately

$

$

Not available

3:5

Ring-Back-Up

Note: Not serviced separately

$

$

Not available

3:6

BUSHING-CENTER

Note: Not serviced separately

$

$

Not available

3:7

SEAL-BUFFER

Note: Not serviced separately

$

$

Not available

3:8

Cup-U

Note: Not serviced separately

$

$

Not available

3:9

WIPER

Note: Not serviced separately

$

$

Not available

4

Washer

Note: Not serviced separately

$

$

Not available

5

Screw-HH

Note: Not serviced separately

$

$

Not available

6

$

$

Currently unavailable

$

$

Currently unavailable

8

Toro AU30634

BUSHING

$

$

Currently unavailable
