25432 E - Toro Heavy Duty Backhoe 125 for RT600 Traction Unit (SN: 313000001 - 313999999) (2013) HANDRAIL AND WALKWAY ASSEMBLY Parts Diagram

Heavy Duty Backhoe 125 for RT600 Traction Unit

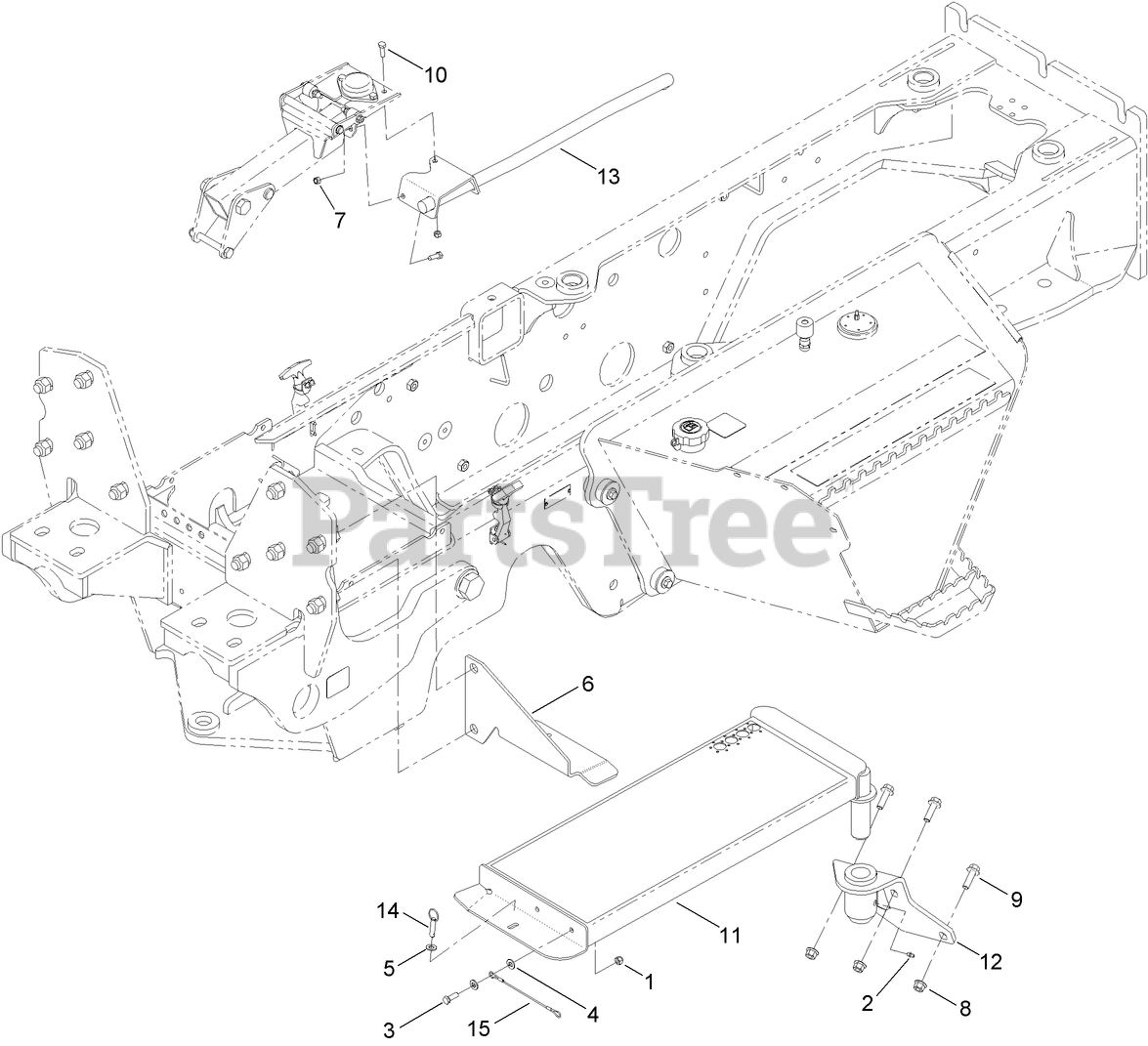

HANDRAIL AND WALKWAY ASSEMBLY Parts Diagram

  • Title

1

Toro 97-1204

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

2

Toro 302-57

FITTING-GREASE

$1.99

$

Usually ships in 3-6 days

0

3

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro AU116558A1-03

BRACKET-SUPPORT, WALKWAY

$

$

Currently unavailable

7

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

8

Toro 115-1115

NUT-LOCK, HHF

$2.49

$

Usually ships in 3-6 days

0

9

Toro AU100830

SCREW

$3.49

$

In Stock, Qty 7

0

10

Toro 33114-025

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

11

Toro AU125300-03

WALKWAY-BACKHOE

$

$

Currently unavailable

12

Toro 127-1274-03

MOUNTING-BRACKET, WALKWAY

$

$

Currently unavailable

13

Toro AU128738-03

HANDRAIL-BACKHOE

$

$

Currently unavailable

14

Toro AUD94535

PIN-Cotterless

$14.99

$

Usually ships in 3-6 days

0

15

Toro AUL78786

RETAINER-ROPE, WIRE

$45.99

$

Usually ships in 3-6 days

0
