25432 E - Toro Heavy Duty Backhoe 125 for RT600 Traction Unit (SN: 313000001 - 313999999) (2013) BACKHOE CONTROL VALVE NO. AU87400034 OUTLET SECTION Parts Diagram

Heavy Duty Backhoe 125 for RT600 Traction Unit

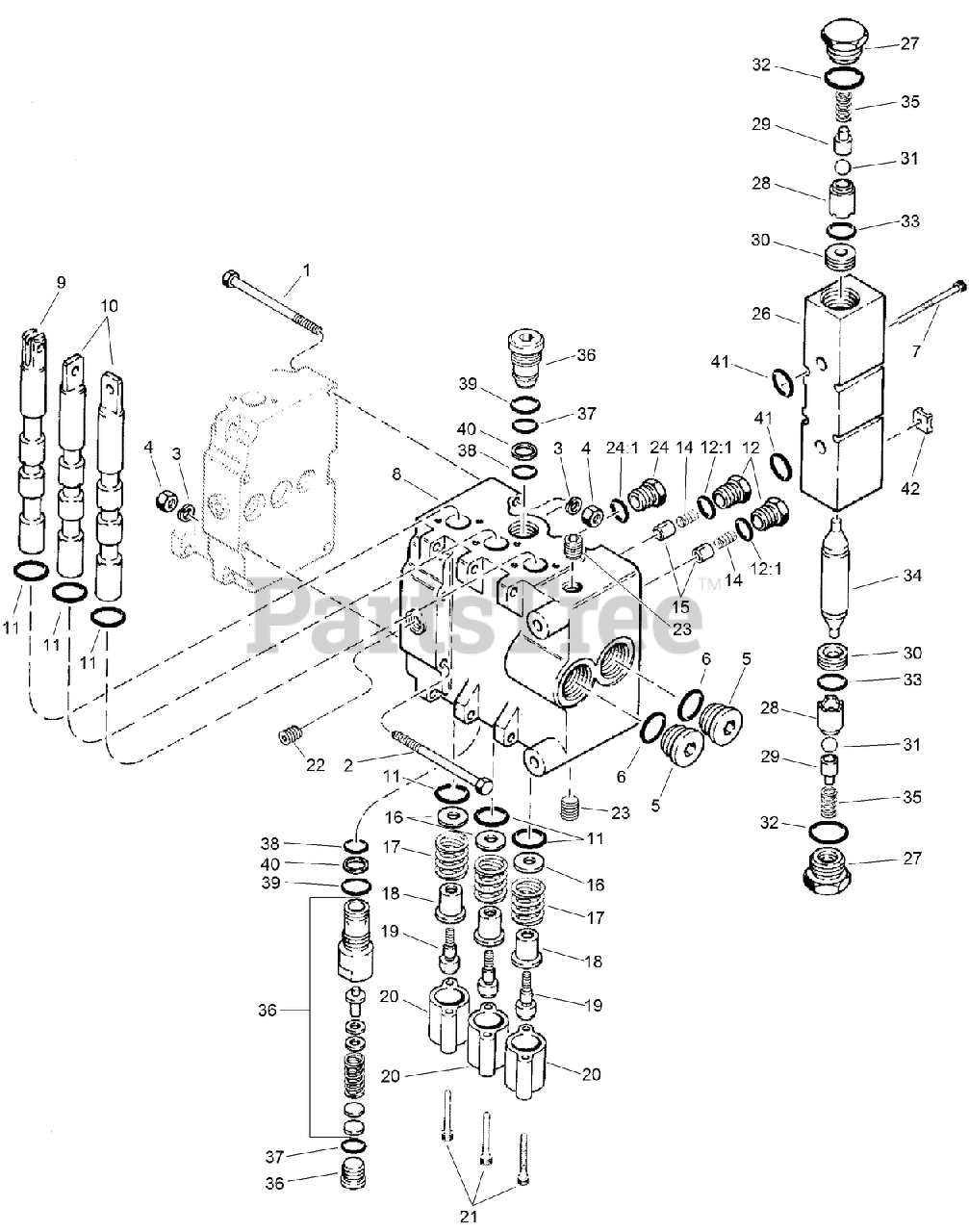

BACKHOE CONTROL VALVE NO. AU87400034 OUTLET SECTION Parts Diagram

  • Title

1

Toro AU414-448

SCREW-CAP

$

$

Currently unavailable

2

Toro AU414-436

SCREW-HH

$

$

Currently unavailable

3

Toro AU495-11028

WASHER-FLAT

$

$

Not available

4

Toro AU425-114

NUT

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU218-5211

PLUG-SOCKET HEAD

$4.49

$

Usually ships in 3-6 days

0

6

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.99

$

In Stock, Qty 19

0

7

Toro AU62-31040

SCREW

$

$

Currently unavailable

8

BODY-SECTION, OUTLET

Note: Not serviced separately

$

$

Not available

9

SPOOL-STABLILIZER

Note: Not serviced separately

$

$

Not available

10

SPOOL-CONTROL, DUAL

Note: Not serviced separately

$

$

Not available

11

Toro AUH438030

O-RING

$

$

Not available

12

Toro AUH438231

PLUG ASM

$26.99

$

Usually ships in 3-6 days

0

12:1

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

14

SPRING-poppet

Note: Not serviced separately

$

$

Not available

15

POPPET-CHECK, LOAD

Note: Not serviced separately

$

$

Not available

16

Toro AU495-11034

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

17

Toro AUN9539

SPRING-RETURN

$

$

Currently unavailable

18

SPACER-spring

Note: Not serviced separately

$

$

Not available

19

BOLT-SHOULDER

Note: Not serviced separately

$

$

Not available

20

Cap-End

Note: Not serviced separately

$

$

Not available

21

Toro AU62-31024

SCREW

$0.99

$

Usually ships in 3-6 days

0

22

Toro AUH438960

PLUG-seal

$32.99

$

Usually ships in 3-6 days

0

23

Toro AU221-841

PLUG
(Superseded to AU217-504)

$0.99

$

Usually ships in 3-6 days

0

24

Toro AUH438231

PLUG ASM

$26.99

$

Usually ships in 3-6 days

0

24:1

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

26

BODY-CHECK, PILOT

Note: Not serviced separately

$

$

Not available

27

PLUG-CHECK, PILOT

Note: Not serviced separately

$

$

Not available

28

SLEEVE-CHECK, PILOT

Note: Not serviced separately

$

$

Not available

29

RETAINER-ball

Note: Not serviced separately

$

$

Not available

30

SEAT-CHECK, PILOT

Note: Not serviced separately

$

$

Not available

31

BALL-CHECK, PILOT

Note: Not serviced separately

$

$

Not available

32

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.99

$

In Stock, Qty 19

0

33

O-RING

Note: Not serviced separately

$

$

Not available

34

PLUNGER-CHECK, PILOT

Note: Not serviced separately

$

$

Not available

35

SPRING-CHECK, PILOT

Note: Not serviced separately

$

$

Not available

36

Valve-Relief

Note: Not serviced separately

$

$

Not available

37

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

38

Toro AU238-6014

O-RING

$

$

Not available

39

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

40

RING-BACKUP

Note: Not serviced separately

$

$

Not available

41

Toro AU238-6113

O-RING

$

$

Not available

42

Toro AUH438941

ORIFICE

$

$

Currently unavailable
