25431 E - Toro Centerline Trencher for RT600 Traction Unit (SN: 315000001 - 315999999) (2015) TRENCHER FRAME ASSEMBLY Parts Diagram

Centerline Trencher for RT600 Traction Unit

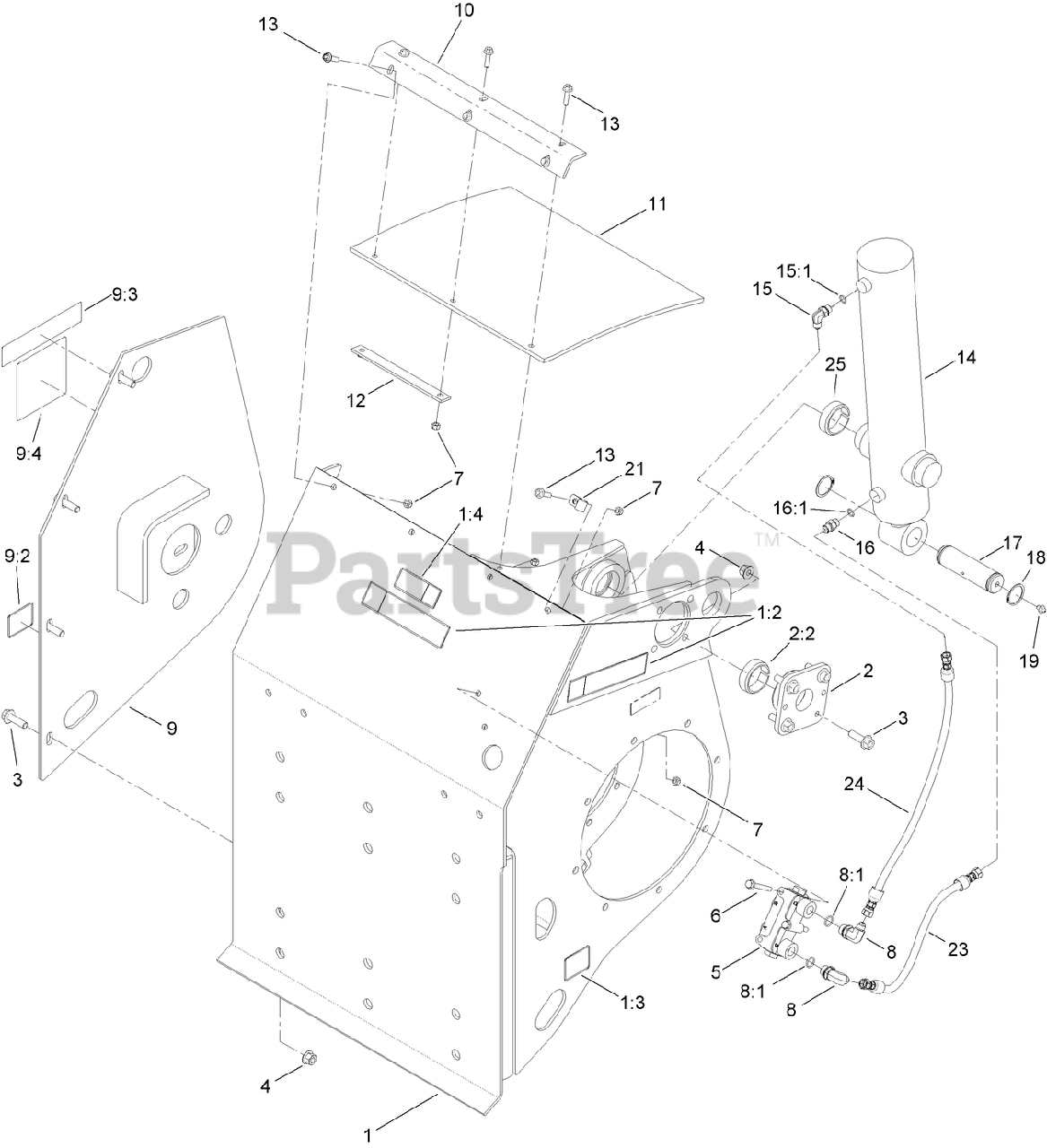

TRENCHER FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 127-1200

FRAME-TRENCHER

$

$

Currently unavailable

1:2

Toro 125-6670

DECAL-DANGER, ENTANGLEMENT

$4.99

$

Usually ships in 3-6 days

0

1:3

Toro 125-6694

DECAL-TIE DOWN

$3.49

$

Usually ships in 3-6 days

0

1:4

Toro 125-6671

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

2

Toro AU123494A1

PIVOT BLOCK ASM

$

$

Not available

2:2

Toro AUH436164

BUSHING

$51.99

$

Usually ships in 3-6 days

0

3

Toro AU100830

SCREW

$3.49

$

In Stock, Qty 7

0

4

Toro 115-1115

NUT-LOCK, HHF

$2.49

$

Usually ships in 3-6 days

0

5

Toro AUH672547

HYD LOCKOUT VALVE ASM

$1215.99

$

Usually ships in 3-6 days

0

6

Toro 33104-060

SCREW-HHF

$37.99

$

Usually ships in 3-6 days

0

7

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

8

Toro 353-537

FITTING-ELBOW, 90 DEG

$12.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

9

Toro 127-1201

SUPPORT-BEARING

$

$

Currently unavailable

9:2

Toro 125-6694

DECAL-TIE DOWN

$3.49

$

Usually ships in 3-6 days

0

9:3

Toro 125-6670

DECAL-DANGER, ENTANGLEMENT

$4.99

$

Usually ships in 3-6 days

0

9:4

Toro 125-6693

DECAL-TRANSMISSION FLUID

$

$

Currently unavailable

10

Toro AU117207A1-03

ANGLE-DIRT DEFLECTOR

$101.99

$

Usually ships in 3-6 days

0

11

Toro AU117206A1

DEFLECTOR-DIRT

$155.99

$

Usually ships in 3-6 days

0

12

Toro AU117205A1-03

STRIP-DIRT DEFLECTOR

$27.99

$

Usually ships in 3-6 days

0

13

Toro AU100874

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

14

Toro AU127214

CYLINDER-BOOM LIFT

$2923.99

$

Usually ships in 3-6 days

0

15

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$23.99

$

In Stock, only 2 left!

0

15:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

16

Toro 353-384

FITTING-STRAIGHT

$7.49

$

Usually ships in 3-6 days

0

16:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

17

Toro AU221253A1

PIN-PIVOT

$236.99

$

Usually ships in 3-6 days

0

18

Toro 32151-35

RING-RETAINING, EXTERNAL

$10.99

$

Usually ships in 3-6 days

0

19

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 19

0

21

Toro AU515-23159

CLAMP

$1.49

$

Usually ships in 3-6 days

0

23

Toro 127-1202

HOSE ASM

$

$

Currently unavailable

24

Toro 127-1203

HOSE ASM

$

$

Currently unavailable

25

Toro AUH436164

BUSHING

$51.99

$

Usually ships in 3-6 days

0
