25430 (RT 600) - Toro Trencher (SN: 314000001 - 314999999) (2014) RADIATOR AND FAN ASSEMBLY Parts Diagram

Trencher

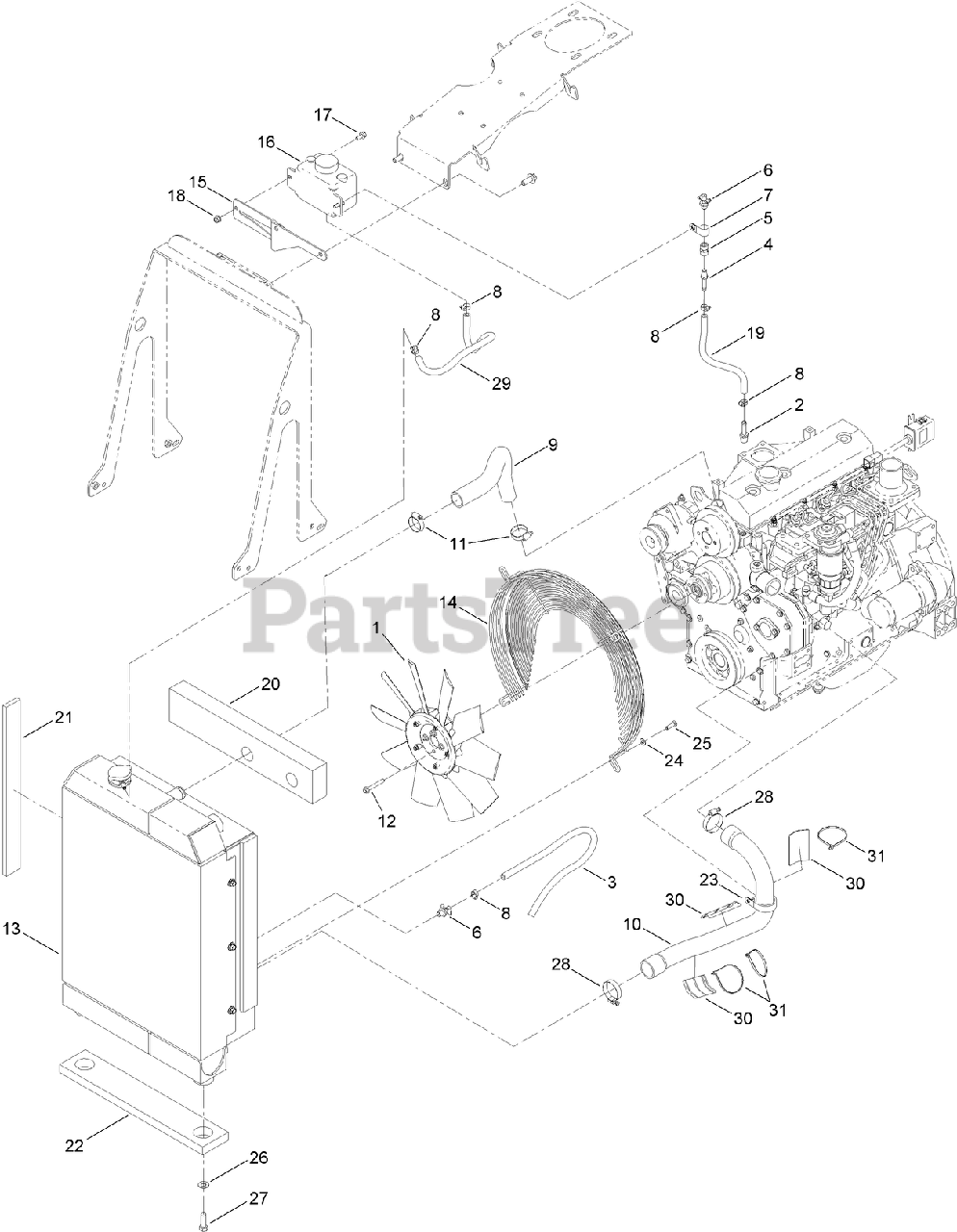

RADIATOR AND FAN ASSEMBLY Parts Diagram

  • Title
1

Toro AU124915

FAN-COOLING

$738.99

$

Usually ships in 3-6 days

0

2

Toro AU217-380

STEM-STRAIGHT, BEAD

$

$

Currently unavailable

3

Toro 114-0832

HOSE-FUEL

$22.99

$

Usually ships in 3-6 days

0

4

Toro AU217-151

STEM-STRAIGHT, BEAD

$28.99

$

Usually ships in 3-6 days

0

5

Toro AU217-1101

COUPLING-PIPE (NPTF)

$5.99

$

Usually ships in 3-6 days

0

6

Toro AUH434809

VALVE-SHUTOFF

$22.99

$

Usually ships in 3-6 days

0

7

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

8

Toro 2412-32

R-CLAMP

$8.99

$

Usually ships in 3-6 days

0

9

Toro AU126607

HOSE-RADIATOR, UPPER

$

$

Currently unavailable

10

Toro 125-6747

HOSE-RADIATOR, LOWER (MOLDED)

$

$

Currently unavailable

11

Toro 2412-3

CLAMP-HOSE

$4.99

$

Usually ships in 3-6 days

0

12

Toro AU100323

SCREW-FLANGE

$2.49

$

Usually ships in 3-6 days

0

13

Toro AU125209

COOLING ASM

$

$

Currently unavailable

14

Toro AU8HX30005-2

GUARD-Fan

$

$

Currently unavailable

15

Toro AU125515-03

MOUNT-TANK, OVERFLOW

$

$

Currently unavailable

16

Toro AU109352

TANK-Overflow

$

$

Currently unavailable

17

Toro 33104-020

SCREW-HHF

$3.49

$

In Stock, only 3 left!

0

18

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

19

Toro 116-4344

HOSE-FUEL

$12.99

$

In Stock, only 1 left!

0

20

Toro 127-1287

SEAL-FOAM

$

$

Currently unavailable

21

Toro 127-1288

SEAL-FOAM

$

$

Currently unavailable

22

Toro 127-1289

SEAL-FOAM

$

$

Currently unavailable

23

Toro 115-9469

CLAMP-R

$5.49

$

Usually ships in 3-6 days

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 325-6

SCREW-HH

$3.49

$

In Stock, only 4 left!

0

28

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

0

29

Toro 108-3284

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

30

Toro AU112950

PROTECTOR-HOSE

$29.99

$

Usually ships in 3-6 days

0

31

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0
