25430 (RT 600) - Toro Trencher (SN: 314000001 - 314999999) (2014) MAIN ELECTRICAL ASSEMBLY Parts Diagram

Trencher

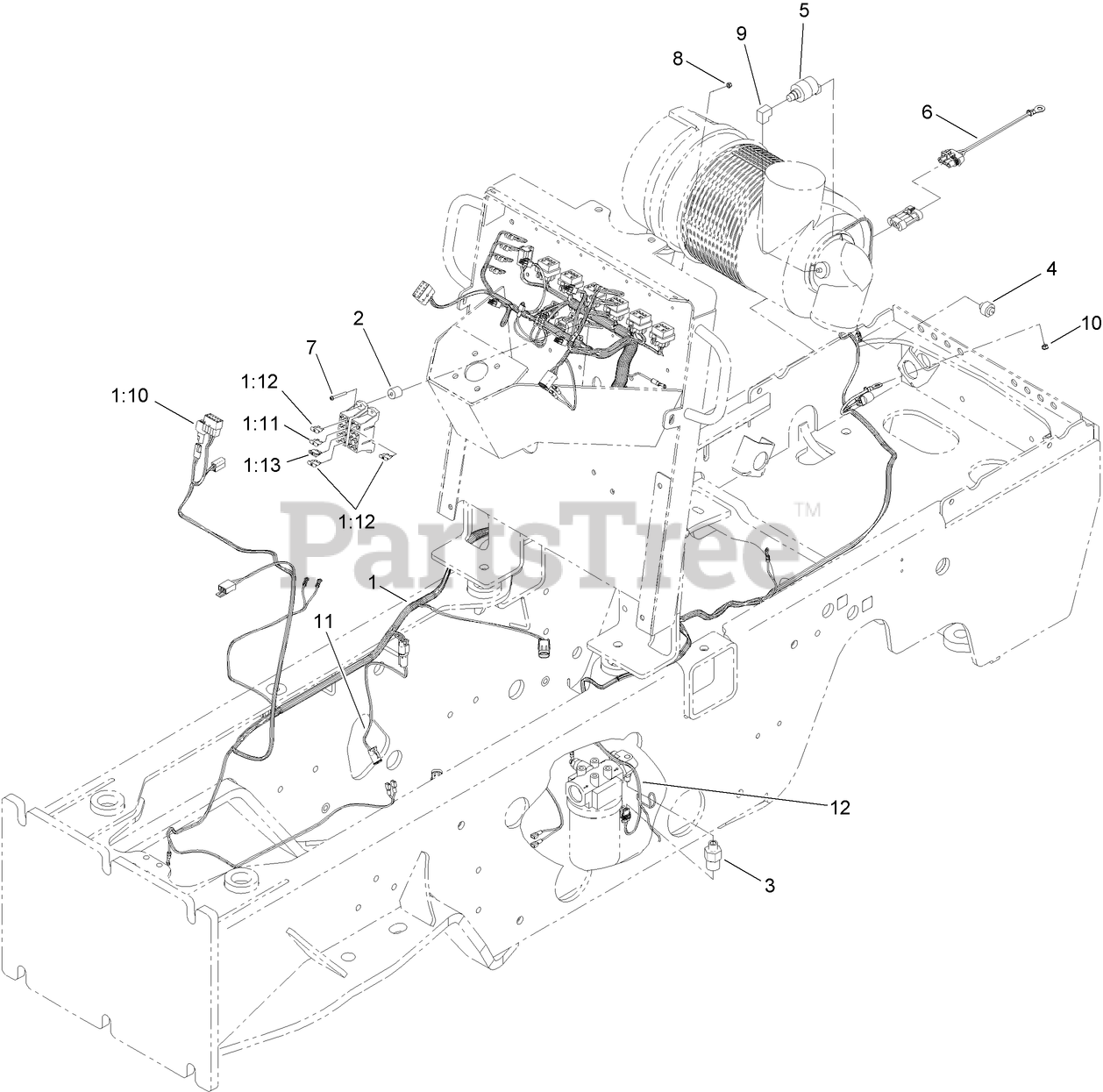

MAIN ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 122-0151

WIRE HARNESS ASM

$

$

Currently unavailable

1:10

Toro 100-4918

DIODE

$21.99

$

In Stock, only 1 left!

0

1:11

Toro 94-6710

FUSE-2 AMP

$5.99

$

Usually ships in 3-6 days

0

1:12

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 6

0

1:13

Toro 109355

FUSE-BLADE, 15 AMP

$3.49

$

In Stock, only 1 left!

0

2

Toro 108-0344

SPACER

$11.99

$

Usually ships in 3-6 days

0

3

Toro AU443897A1

SWITCH-PRESSURE

$166.99

$

Usually ships in 3-6 days

0

4

Toro AU127738

SENDER-WATER TEMP

$

$

Currently unavailable

5

Toro AU293797A1

SWITCH ASM

$37.99

$

Usually ships in 3-6 days

0

6

Toro 99-3441

HARNESS-WIRE, FUSIBLE LINK

$157.99

$

Usually ships in 3-6 days

0

7

Toro 363-3205

SCREW-PPH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 3296-1

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

9

Toro AU217-1050

FITTING-ELBOW, 90

$

$

Currently unavailable

10

Toro 98-5845

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

11

Toro 122-0124

HARNESS-WIRE (HYD DRIVE EXTENSION)

$

$

Currently unavailable

12

Toro 122-0123

HARNESS-WIRE (HYD TEMP EXTENSION)

$

$

Currently unavailable
