25430 C (RT 600) - Toro Trencher (SN: 315000501 - 315999999) (2015) SEAT AND MOUNTING ASSEMBLY Parts Diagram

Trencher

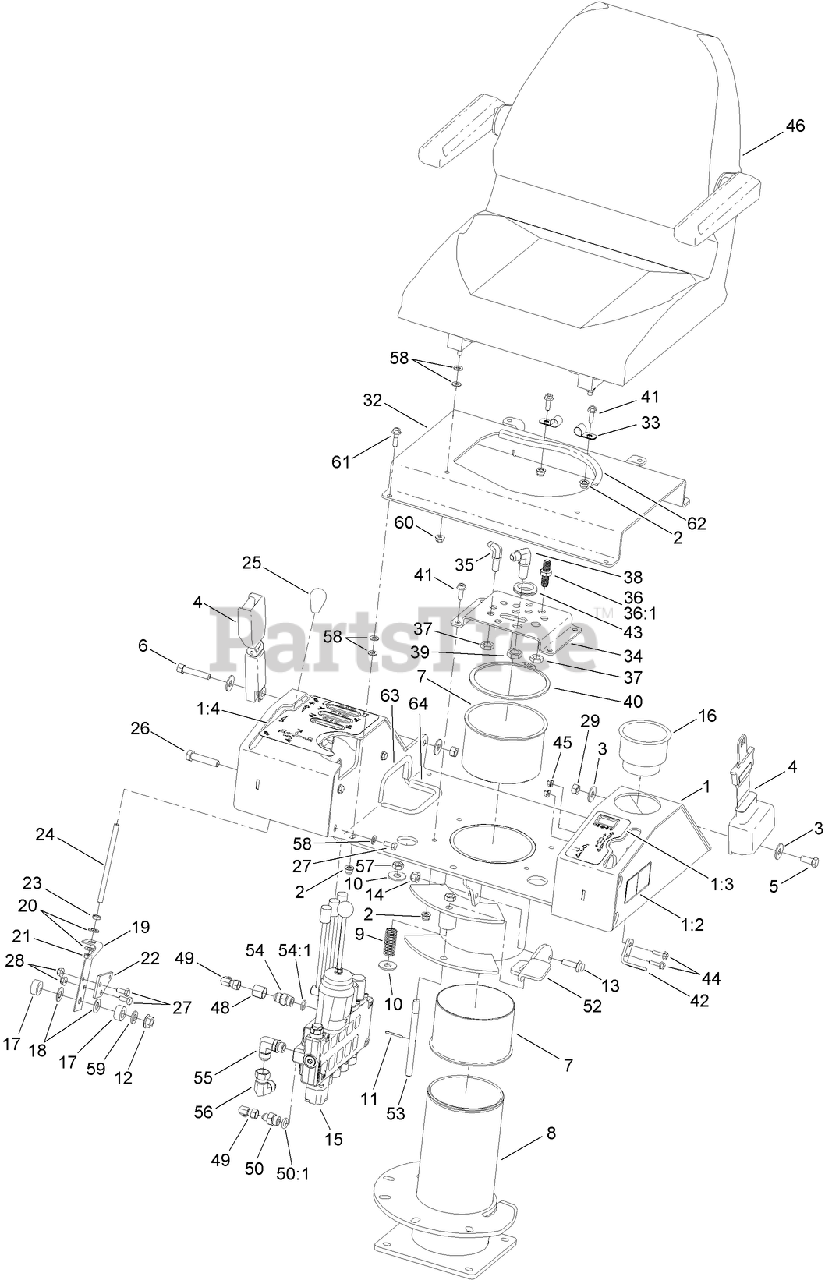

SEAT AND MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 127-1233

SEAT PLATE ASM

$

$

Currently unavailable

1:2

Toro 125-8480

DECAL-WARNING, NO RIDERS

$

$

Currently unavailable

1:3

Toro 125-6698

DECAL-CONTROL, LH

$

$

Currently unavailable

1:4

Toro 125-6695

DECAL-CONTROL, RH

$

$

Currently unavailable

2

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

3

Toro AU495-21050

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU249116A1

SEAT BELT ASM

$242.99

$

Usually ships in 3-6 days

0

5

Toro AU428-716

SCREW-HH

$

$

Not available

6

Toro 100-4368

BOLT-BLADE

$20.99

$

Usually ships in 3-6 days

0

7

Toro 130-8820

PIVOT-BEARING SEAT

$

$

Currently unavailable

8

Toro AU125352

MOUNT-SEAT

$

$

Currently unavailable

9

Toro AU109011

SPRING-PIVOT LOCK, SEAT

$

$

Currently unavailable

10

Toro AU495-81163

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU432-816

PIN-COTTER
(Superseded to 3272-11)

$1.49

$

In Stock, Qty 5

0

12

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

13

Toro AU100878

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

14

Toro 103-9511

NUT-LOCK, NI

$2.49

$

In Stock, only 4 left!

0

15

Toro AU125537

HYD CONTROL VALVE ASM

$4849.99

$

Usually ships in 3-6 days

0

16

Toro AU8EO24121

CUP-HOLDER

$3.49

$

Usually ships in 3-6 days

0

17

Toro AUH428284

SPACER-GEARBOX

$40.99

$

Usually ships in 3-6 days

0

18

Toro AUH256305

WASHER-Friction

$20.99

$

Usually ships in 3-6 days

0

19

Toro 127-1285

LEVER-CONTROL, SPEED

$64.99

$

Usually ships in 3-6 days

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

21

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

22

Toro AU125544-03

PLATE-MOUNTING, CABLE

$

$

Currently unavailable

23

Toro 3218-3

NUT-JAM

$0.99

$

In Stock, Qty 10

0

24

Toro AU114524A1

ROD-Linkage

$60.99

$

Usually ships in 3-6 days

0

25

Toro AUA14051

KNOB-Control

$35.99

$

Usually ships in 3-6 days

0

26

Toro 60-9870

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

27

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

28

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

29

Toro 106-0327

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

32

Toro AU126446-03

MOUNT-SEAT

$

$

Currently unavailable

33

Toro AU515-23159

CLAMP

$1.49

$

Usually ships in 3-6 days

0

34

Toro AU126022-03

PLATE-BULKHEAD, SEAT

$

$

Currently unavailable

35

Toro AU218-693

ELBOW

$29.99

$

Usually ships in 3-6 days

0

36

Toro AU218-673

UNION-BULKHEAD

$7.49

$

Usually ships in 3-6 days

0

36:1

Toro AU218-1254

NUT-LOCK, BULKHEAD

$4.49

$

Usually ships in 3-6 days

0

37

Toro AU218-1254

NUT-LOCK, BULKHEAD

$4.49

$

Usually ships in 3-6 days

0

38

Toro AU218-694

ELBOW

$31.99

$

Usually ships in 3-6 days

0

39

Toro AU218-1255

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

40

Toro AU126291

RING-RETAINING

$

$

Currently unavailable

41

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

42

Toro AU126427-03

PLATE-MOUNT

$

$

Currently unavailable

43

Toro 240-3

GROMMET-RUBBER

$18.99

$

In Stock, only 1 left!

0

44

Toro 33103-025

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

45

Toro 81-0130

NUT-FLANGE, NI

$1.99

$

Usually ships in 3-6 days

0

46

Toro AU126597

SEAT ASM

$

$

Currently unavailable

48

Toro AU218-786

REDUCER-TUBE

$

$

Not available

49

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

50

Toro AU218-5058

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

50:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

52

Toro AU124119-03

BRACKET-SEAT

$

$

Not available

53

Toro AU108909

ROD-SWING, SEAT

$

$

Currently unavailable

54

Toro 353-388

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

54:1

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

55

Toro 94-7146

ADAPTER

$50.99

$

Usually ships in 3-6 days

0

56

Toro 94-7023

ADAPTOR

$

$

Not available

57

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

58

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

59

Toro 106-9888

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

60

Toro 117-1350

NUT-HF, LOCK

$1.49

$

In Stock, only 3 left!

0

61

Toro AU100874

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

62

Toro 127-1293

TRIM-BATTERY

$

$

Currently unavailable

63

Toro 127-1295

TRIM-CONTROL BASE

$

$

Currently unavailable

64

Toro 127-1296

TRIM-CONTROL BASE

$

$

Currently unavailable
