25430 C (RT 600) - Toro Trencher (SN: 315000001 - 315000500) (2015) BACKFILL BLADE ASSEMBLY Parts Diagram

Trencher

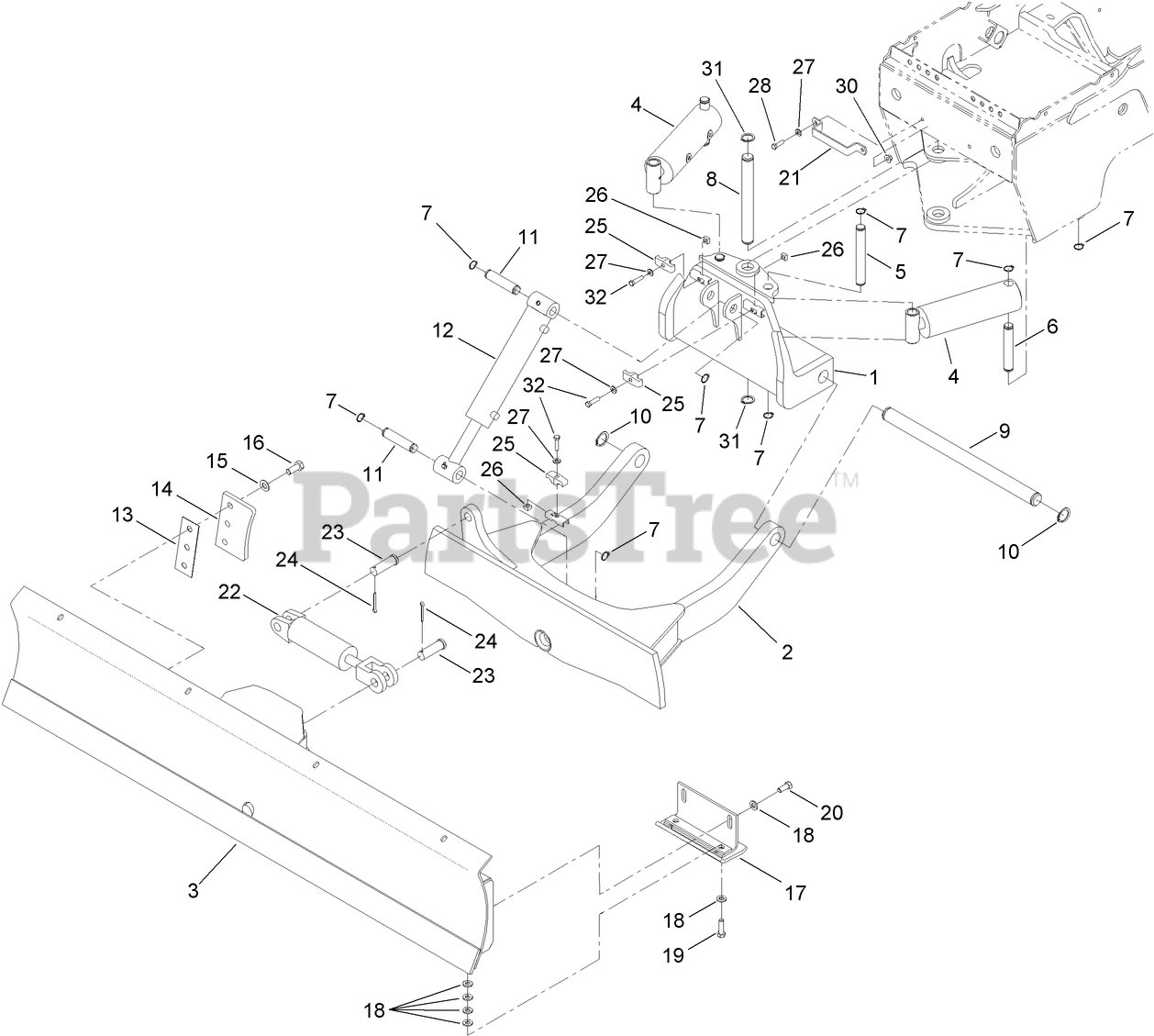

BACKFILL BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro AU125298-03

PIVOT-BACKFILL

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Not available

4

Toro AU103989A1

HYD CYLINDER ASM

$

$

Not available

5

Toro AU125503

PIN-LINK

$

$

Currently unavailable

6

Toro AU125502

PIN-LINK

$

$

Currently unavailable

7

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, only 4 left!

0

8

Toro AU125547

PIN-Pivot

$

$

Currently unavailable

9

Toro AU103993A1

PIN-Frame

$404.99

$

Usually ships in 3-6 days

0

10

$20.99

$

Usually ships in 3-6 days

0

11

Toro AUH437684

PIN-CYLINDER

$75.99

$

Usually ships in 3-6 days

0

12

Toro AUH674312

HYD CYLINDER ASM

$

$

Not available

13

Toro AUH438278-03

SHIM-RETAINER

$

$

Currently unavailable

14

Toro AUH438273-03

RETAINER-BLADE

$

$

Not available

15

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

16

Toro 327-4

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

17

Toro AUH674649-03

SHOE-SKID

$

$

Not available

18

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

19

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 5

0

20

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

21

AUH438472-01

BRACKET-HOSE

$

$

Not available

22

Toro AU125681

HYD CYLINDER ASM

$2130.99

$

Usually ships in 3-6 days

0

23

Toro AU439-11648

PIN-HEADED

$25.99

$

Usually ships in 3-6 days

0

24

Toro 3272-33

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

25

$14.99

$

Usually ships in 3-6 days

0

26

Toro AU224-2206

NUT-SQUARE

$1.49

$

Usually ships in 3-6 days

0

27

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

28

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

30

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

31

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$4.99

$

In Stock, only 1 left!

0

32

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
