25430 A (RT 600) - Toro Trencher (SN: 315000001 - 315000500) (2015) BATTERY AND CABLE ASSEMBLY Parts Diagram

Trencher

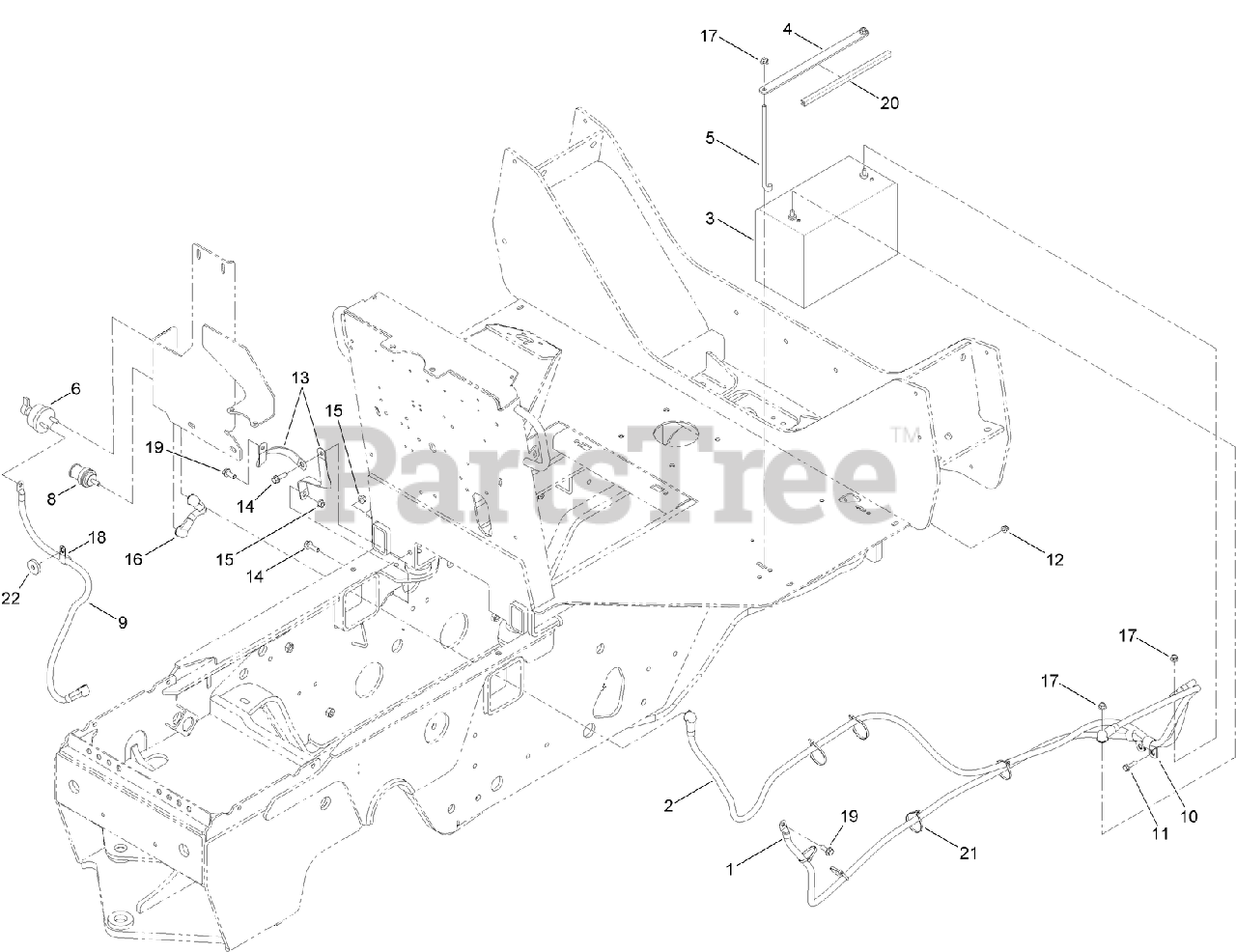

BATTERY AND CABLE ASSEMBLY Parts Diagram

  • Title

1

Toro 122-0154

CABLE-NEGATIVE

$250.99

$

Usually ships in 3-6 days

0

2

Toro 122-0157

CABLE-BATTERY, POSITIVE

$

$

Currently unavailable

3

BATTERY (1000CCA, WET)

Note: Not serviced separately

$

$

Not available

3

BATTERY (1000CCA, WET)

Note: Obtain locally.

$

$

Not available

4

Toro AU117616-03

PLATE-HOLD DOWN, BATTERY

$

$

Not available

5

Toro AUH436311

BOLT-HOLDDOWN, BATTERY

$41.99

$

Usually ships in 3-6 days

0

6

Toro AUR52278

SWITCH-DISCONNECT, MASTER

$159.99

$

Usually ships in 3-6 days

0

8

Toro AU105186

POST-BATTERY, REMOTE

$84.99

$

Usually ships in 3-6 days

0

9

Toro AU114443

CABLE-Battery, Positive

$

$

Currently unavailable

10

Toro 2412-71

CLAMP-R

$8.49

$

Usually ships in 3-6 days

0

11

Toro 33104-030

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

12

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

13

Toro AUD127018

STRAP-GROUNDING

$61.99

$

Usually ships in 3-6 days

0

14

Toro 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

15

Toro 32128-36

NUT-HF

$1.99

$

Usually ships in 3-6 days

0

16

Toro AU108132

CABLE-Positive

$

$

Currently unavailable

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 2412-4

CLAMP-R

$5.99

$

Usually ships in 3-6 days

0

19

Toro 108-1531

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

20

Toro 127-1293

TRIM-BATTERY

$

$

Currently unavailable

21

Toro 3290-379

TIE-CABLE

$0.99

$

In Stock, only 3 left!

0

22

Toro 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 16

0
