25429 - Toro Quad Track Kit for RT1200 Trencher Front Right and Rear Left Attachment Assembly No. 136-3970 Parts Diagram

Quad Track Kit for RT1200 Trencher

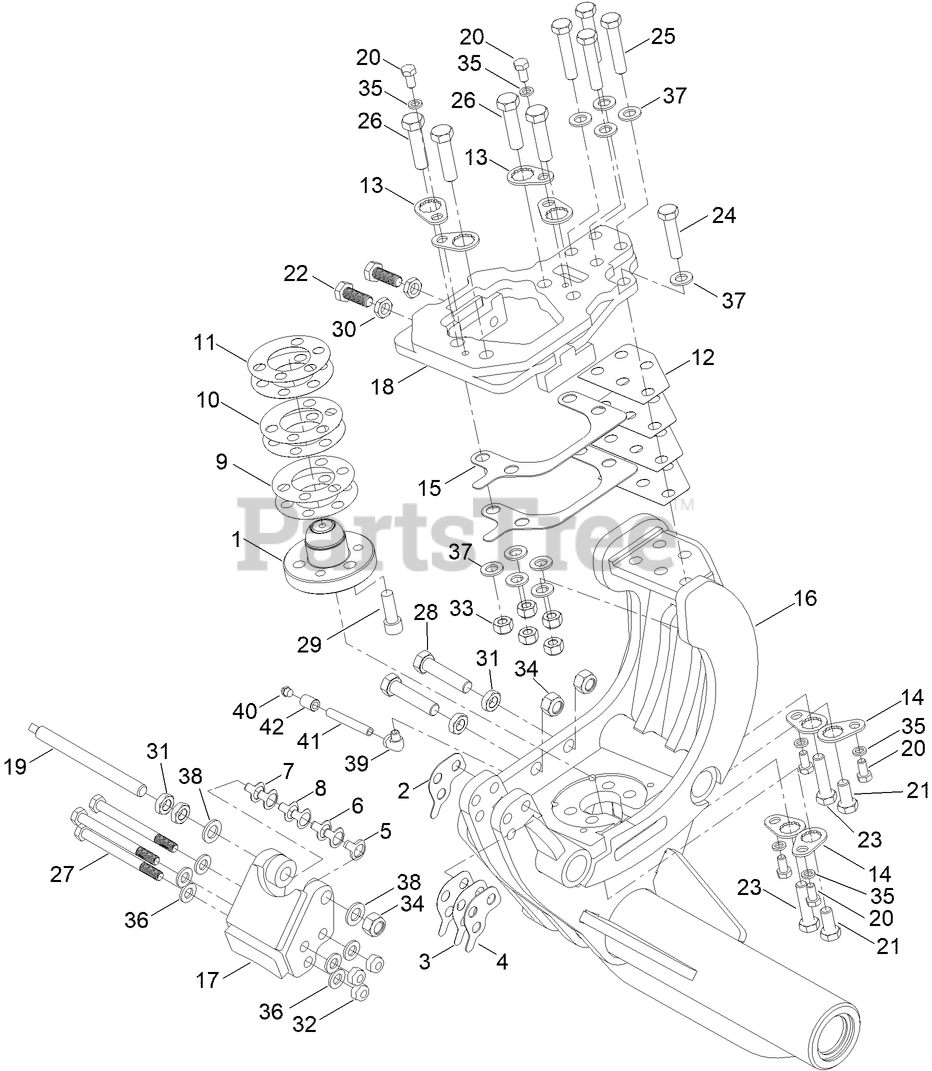

Front Right and Rear Left Attachment Assembly No. 136-3970 Parts Diagram

  • Title

1

Toro AU119184

PIN-KING, TRACKS

$

$

Currently unavailable

2

Toro 133-5077

DIRECTION LIMITOR SHIM 18 GA.

$

$

Currently unavailable

3

Toro 133-5078

DIRECTION LIMITOR SHIM 26 GA.

$

$

Currently unavailable

4

Toro 133-5079

DIRECTION LIMITOR SHIM 16 GA.

$

$

Currently unavailable

5

Toro 133-5080

SHIM 11 GA.

$

$

Currently unavailable

6

Toro 133-5081

SHIM 16 GA.

$

$

Currently unavailable

7

Toro 133-5082

SHIM 18 GA.

$

$

Currently unavailable

8

Toro 133-5083

SHIM 26 GA.

$

$

Currently unavailable

9

Toro 133-5084

SHIM KING PIN .005"

$

$

Currently unavailable

10

Toro 133-5085

SHIM KING PIN .010"

$

$

Currently unavailable

11

Toro 133-5086

SHIM KING PIN .015"

$

$

Currently unavailable

12

Toro 133-5087

TOP MOUNTING PLATE SHIM 26 GA.

$

$

Currently unavailable

13

Toro 133-5088

M16 BOLT LOCKING PLATE

$

$

Currently unavailable

14

Toro 133-5089

M14 BOLT LOCKING PLATE

$

$

Currently unavailable

15

Toro 133-5090

SHIM 16 GA.

$

$

Currently unavailable

16

Toro 136-3969

FRONT RIGHT AND REAR LEFT ATTACHEMENT BR

$

$

Currently unavailable

17

Toro 136-3971

FRONT RIGHT AND REAR LEFT DIR LIMITOR

$

$

Currently unavailable

18

Toro 136-3972

FRONT RIGHT AND REAR LEFT TOP PLATE

$

$

Currently unavailable

19

Toro 133-5091

ROD-THREADED

$

$

Currently unavailable

20

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

21

Toro 133-5092

SCREW-HH

$

$

Currently unavailable

22

Toro 132-7849

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

23

Toro 133-5093

SCREW-HH

$

$

Currently unavailable

24

Toro 133-5094

SCREW-HH

$

$

Currently unavailable

25

Toro 133-5095

SCREW-HH

$

$

Currently unavailable

26

Toro AU120624

SCREW-HH

$

$

Currently unavailable

27

Toro 133-5096

SCREW-HH

$

$

Currently unavailable

28

Toro 33180-070

SCREW-HH

$

$

Currently unavailable

29

Toro AU864-14040

SCREW-HSH

$

$

Currently unavailable

30

Toro 131-0423

NUT-HEX

$

$

Currently unavailable

31

Toro 09804

NUT M16 THIN

$

$

Currently unavailable

32

Toro 94-4307

NUT-HEX, LOCK

$1.49

$

Usually ships in 3-6 days

0

33

Toro 133-5097

NUT-METRIC

$

$

Currently unavailable

34

Toro 133-5098

NUT-METRIC

$

$

Currently unavailable

35

Toro ST81179

WASHER-FLAT

$7.49

$

Usually ships in 3-6 days

0

36

Toro 33096-00

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

37

Toro 09488

WASHER-PLAIN

$

$

Currently unavailable

38

Toro 33098-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

39

Toro 2811-7

ELBOW

$42.99

$

Usually ships in 3-6 days

0

40

Toro 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+

0

41

Toro 130-8449

NIPPLE

$

$

Currently unavailable

42

Toro 2810-1

COUPLING-PIPE

$6.49

$

Usually ships in 3-6 days

0
