25429 E - Toro Quad Track Kit for RT1200 Trencher Chassis Assembly Parts Diagram

Quad Track Kit for RT1200 Trencher

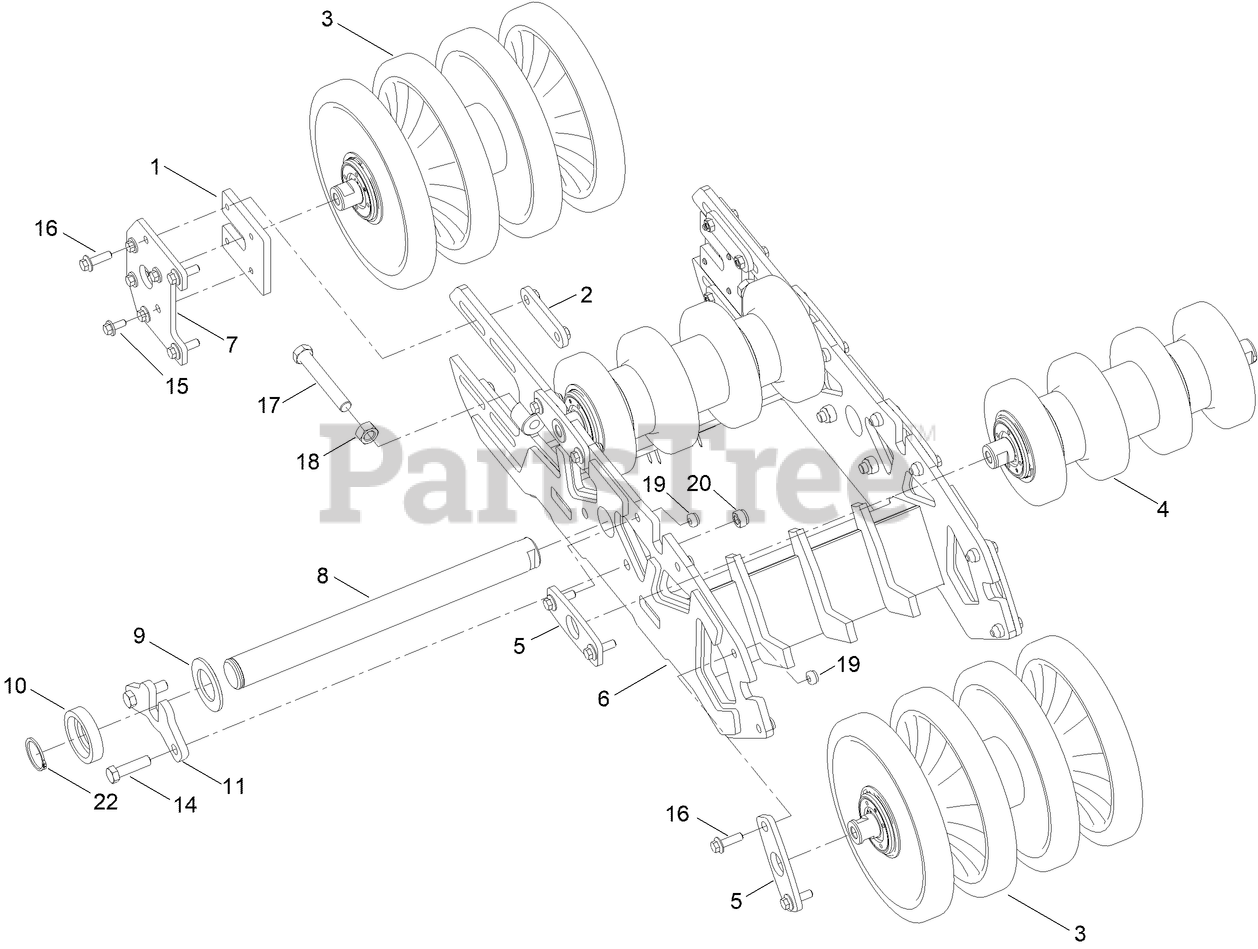

Chassis Assembly Parts Diagram

  • Title
1

Toro AU119167

TENSIONER-INNER, 19.5 IN TRACK

$

$

Currently unavailable

2

Toro AU119168

TENSIONER-CLAMPING, 19.5 IN TRACK

$

$

Currently unavailable

3

Toro 133-5070

13.50" WHEEL ASM

$

$

Currently unavailable

4

Toro 133-5067

8" WHEEL ASM

$

$

Currently unavailable

5

Toro 136-3954

RETAINING PLATE

$

$

Currently unavailable

6

Toro 136-3961

TRACK FRAME ASM

$

$

Currently unavailable

6:2

Toro 136-3962

DANGER DECAL

Note: Not illustrated

$

$

Currently unavailable

7

Toro 136-3956

TENSIONNER OUTER PLATE

$

$

Currently unavailable

8

Toro 136-3957

PIVOT-AXLE

$

$

Currently unavailable

9

Toro 136-3958

PIVOT AXLE SPACER

$

$

Currently unavailable

10

Toro 136-3959

SPACER

$

$

Currently unavailable

11

Toro 136-3960

PIVOT AXLE PLATE

$

$

Currently unavailable

14

Toro AU120624

SCREW-HH

$

$

Currently unavailable

15

Toro 33106-025

SCREW-HHF

$

$

Not available

16

Toro 33106-040

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

17

Toro 136-3965

SCREW-HH,

$

$

Currently unavailable

18

Toro 33019-00

NUT-HEX

$6.49

$

Usually ships in 3-6 days

0

19

Toro 94-4307

NUT-HEX, LOCK

$1.49

$

Usually ships in 3-6 days

0

20

$

$

Not available

22

Toro AU103-16200

RING-RETAINING, EXTERNAL

$4.99

$

Usually ships in 3-6 days

0
