25421 E - Toro Hydra Borer, Pro Sneak 365 Vibratory Plow HYDRAULIC MOTOR ASSEMBLY NO. AUH673156 Parts Diagram

Hydra Borer, Pro Sneak 365 Vibratory Plow

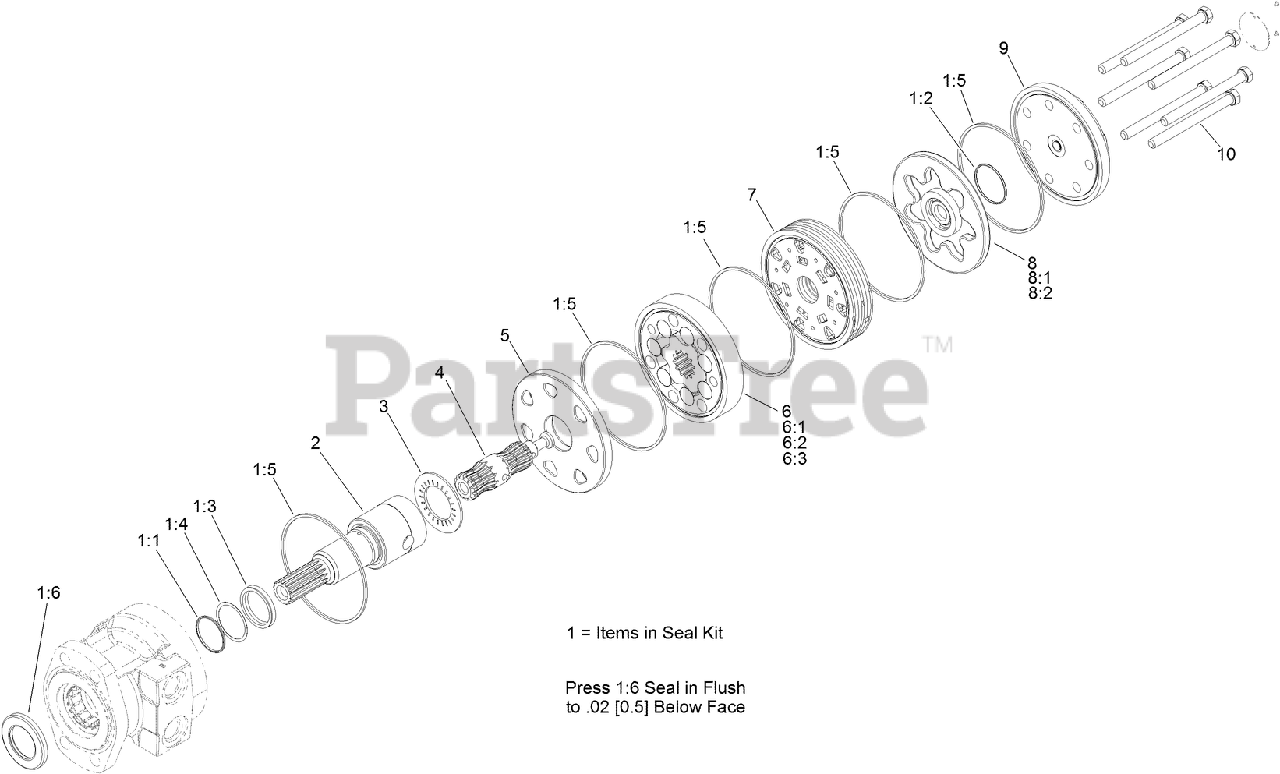

HYDRAULIC MOTOR ASSEMBLY NO. AUH673156 Parts Diagram

  • Title

1

Toro 112-8405

Seal Kit

$199.99

$

Usually ships in 3-6 days

0

1:1

RING-BACKUP

Note: Not serviced separately

$

$

Not available

1:2

Seal-Commutator

Note: Not serviced separately

$

$

Not available

1:3

SEAL-SHAFT

Note: Not serviced separately

$

$

Not available

1:4

Washer-Backup

Note: Not serviced separately

$

$

Not available

1:5

Ring-Seal

Note: Not serviced separately

$

$

Not available

1:6

Seal-Dirt and Water

Note: Not serviced separately

$

$

Not available

2

Shaft-Coupling

Note: Not serviced separately

$

$

Not available

3

Toro 76-0850

BEARING-THRUST

$49.99

$

Usually ships in 3-6 days

0

4

Toro 76-0960

LINK-DRIVE

$561.99

$

Usually ships in 3-6 days

0

5

Toro 92-9754

PLATE-WEAR

$584.99

$

Usually ships in 3-6 days

0

6

Toro 76-0970

ROTOR SET

$1547.99

$

Usually ships in 3-6 days

0

6:1

Rotor

Note: Not serviced separately

$

$

Not available

6:2

Vane

Note: Not serviced separately

$

$

Not available

6:3

Stator

Note: Not serviced separately

$

$

Not available

7

Toro 92-9755

MANIFOLD

$1124.99

$

Usually ships in 3-6 days

0

8

Toro 106-1982

COMMUTATOR ASM

$254.99

$

Usually ships in 3-6 days

0

8:1

Commutator

Note: Not serviced separately

$

$

Not available

8:2

Ring-Commutator

Note: Not serviced separately

$

$

Not available

9

Toro 76-0940

END COVER ASM

$702.99

$

Usually ships in 3-6 days

0

10

Bolt-Special

Note: Not serviced separately

$

$

Not available
