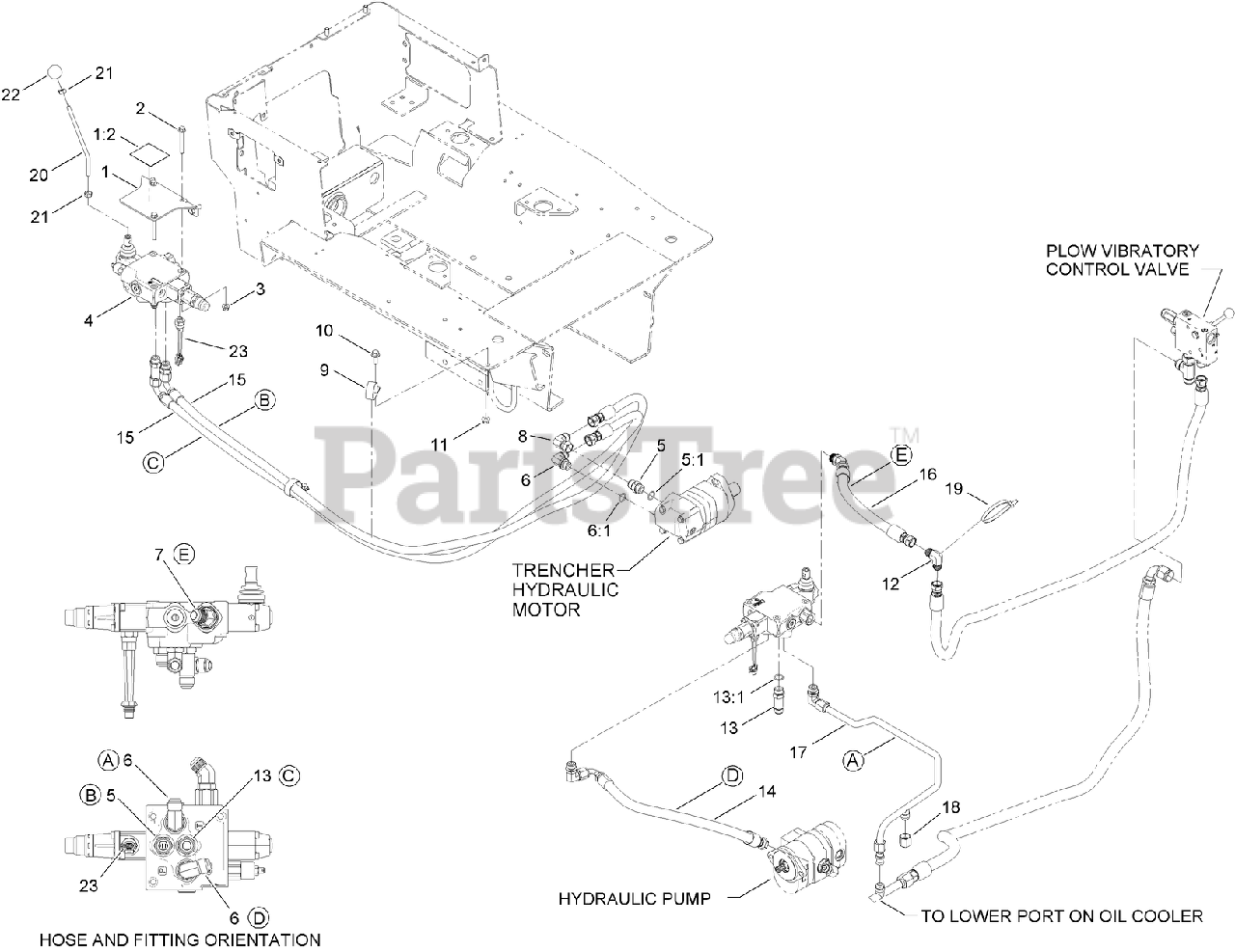

25411 E - Toro Trencher Drive for Pro Sneak 365 Vibratory Plow (SN: 314000001 - 314999999) (2014) TRENCHER VALVE AND HYDRAULIC PLUMBING ASSEMBLY Parts Diagram

Trencher Drive for Pro Sneak 365 Vibratory Plow

TRENCHER VALVE AND HYDRAULIC PLUMBING ASSEMBLY Parts Diagram

  • Title
1

Toro 130-7351

TRENCHER BRACKET ASM

$141.99

$

Usually ships in 3-6 days

0

1:2

Toro 125-6678

DECAL-CHAIN DIRECTION

$21.99

$

Usually ships in 3-6 days

0

2

Toro 33104-070

SCREW-HHF

$3.99

$

Usually ships in 3-6 days

0

3

Toro 104-3082

NUT-LOCK, HHF

$3.49

$

Usually ships in 3-6 days

0

4

Toro 130-4304

VALVE-TRENCHER

$2233.99

$

Usually ships in 3-6 days

0

5

Toro 353-385

FITTING-STRAIGHT

$25.99

$

Usually ships in 3-6 days

0

5:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

6

Toro 353-370

FITTING-ELBOW, 90 DEG

$78.99

$

Usually ships in 3-6 days

0

6:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

7

Toro 353-389

FITTING-ELBOW, 45 DEG

$59.99

$

Usually ships in 3-6 days

0

8

Toro 94-7023

ADAPTOR

$

$

Not available

9

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

10

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 130-7374

FITTING-ELBOW, 90 DEG

$39.99

$

Usually ships in 3-6 days

0

13

Toro 130-4318

FITTING-STRAIGHT

$49.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

14

Toro 130-4305

HYD HOSE ASM

$138.99

$

Usually ships in 3-6 days

0

15

Toro 127-1012

HYD HOSE ASM

$197.99

$

Usually ships in 3-6 days

0

16

Toro 127-1010

HYD HOSE ASM

$112.99

$

Usually ships in 3-6 days

0

17

Toro 130-7356

HYD TUBE ASM

$124.99

$

Usually ships in 3-6 days

0

18

Toro AU218-756

FITTING-CAP

$6.49

$

Usually ships in 3-6 days

0

19

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

20

Toro 130-4348

LEVER-TRENCHER

$102.99

$

Usually ships in 3-6 days

0

21

Toro 33015-00

NUT-HEX
(Superseded to 48-7960)

$1.99

$

Usually ships in 3-6 days

0

22

Toro 130-7377

KNOB-ROUND

$18.99

$

Usually ships in 3-6 days

0

23

Toro 72-4310

SWITCH-BALL

$102.99

$

Usually ships in 3-6 days

0
