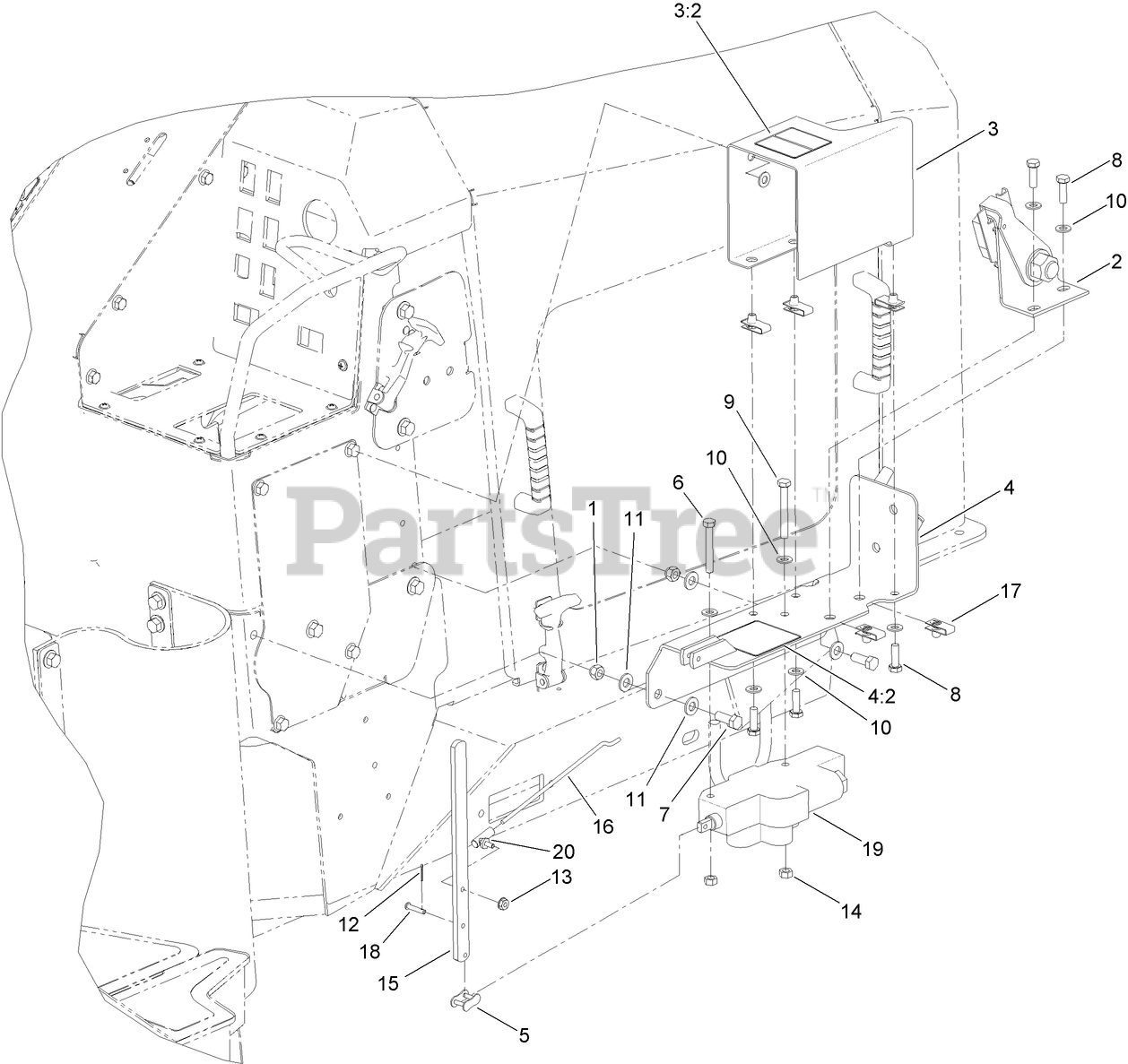

25410 E - Toro Trencher Drive, Pro Sneak 360 Vibratory Plow (SN: 314000001 - 314999999) (2014) NEUTRAL SWITCH AND HYDRAULIC MOUNTING ASSEMBLY Parts Diagram

Trencher Drive, Pro Sneak 360 Vibratory Plow

NEUTRAL SWITCH AND HYDRAULIC MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro 97-1204

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

2

Toro AU106402A2

NEUTRAL START SWITCH ASM

$

$

Not available

3

Toro 127-1036

COVER ASM

$

$

Currently unavailable

3:2

Toro 125-6676

DECAL-ATTACHMENT SELECTOR

$

$

Currently unavailable

4

Toro 127-1037

BRACKET ASM

$140.99

$

Usually ships in 3-6 days

0

4:2

Toro 125-6678

DECAL-CHAIN DIRECTION

$21.99

$

Usually ships in 3-6 days

0

5

Toro AU241-1315

LINK-#50, CONNECT (SINGLE PITCH)
(Superseded to 116-6897)

$7.99

$

In Stock, only 4 left!

0

6

Toro 322-32

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

7

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

8

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU426-540

BOLT

$0.99

$

Usually ships in 3-6 days

0

10

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

12

Toro 3272-1

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

13

Toro 32149-8

NUT-KEPS

$1.49

$

Usually ships in 3-6 days

0

14

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

15

Toro AU179581A1

LEVER-VALVE

$

$

Currently unavailable

16

Toro AU179590A1

ROD-SWITCH, NEUTRAL

$52.99

$

Usually ships in 3-6 days

0

17

Toro AUH346650

NUT-U TYPE

$2.49

$

Usually ships in 3-6 days

0

18

Toro AUH35279

PIN-CLEVIS

$49.99

$

Usually ships in 3-6 days

0

19

Toro AUH544718

HYD VALVE ASM

$3770.99

$

Usually ships in 3-6 days

0

20

Toro AUL12437

JOINT-Ball

$8.49

$

Usually ships in 3-6 days

0
