25410 E - Toro Trencher Drive, Pro Sneak 360 Vibratory Plow (SN: 313000001 - 313999999) (2013) FRAME, BELT AND MOUNTING ARM ASSEMBLY Parts Diagram

Trencher Drive, Pro Sneak 360 Vibratory Plow

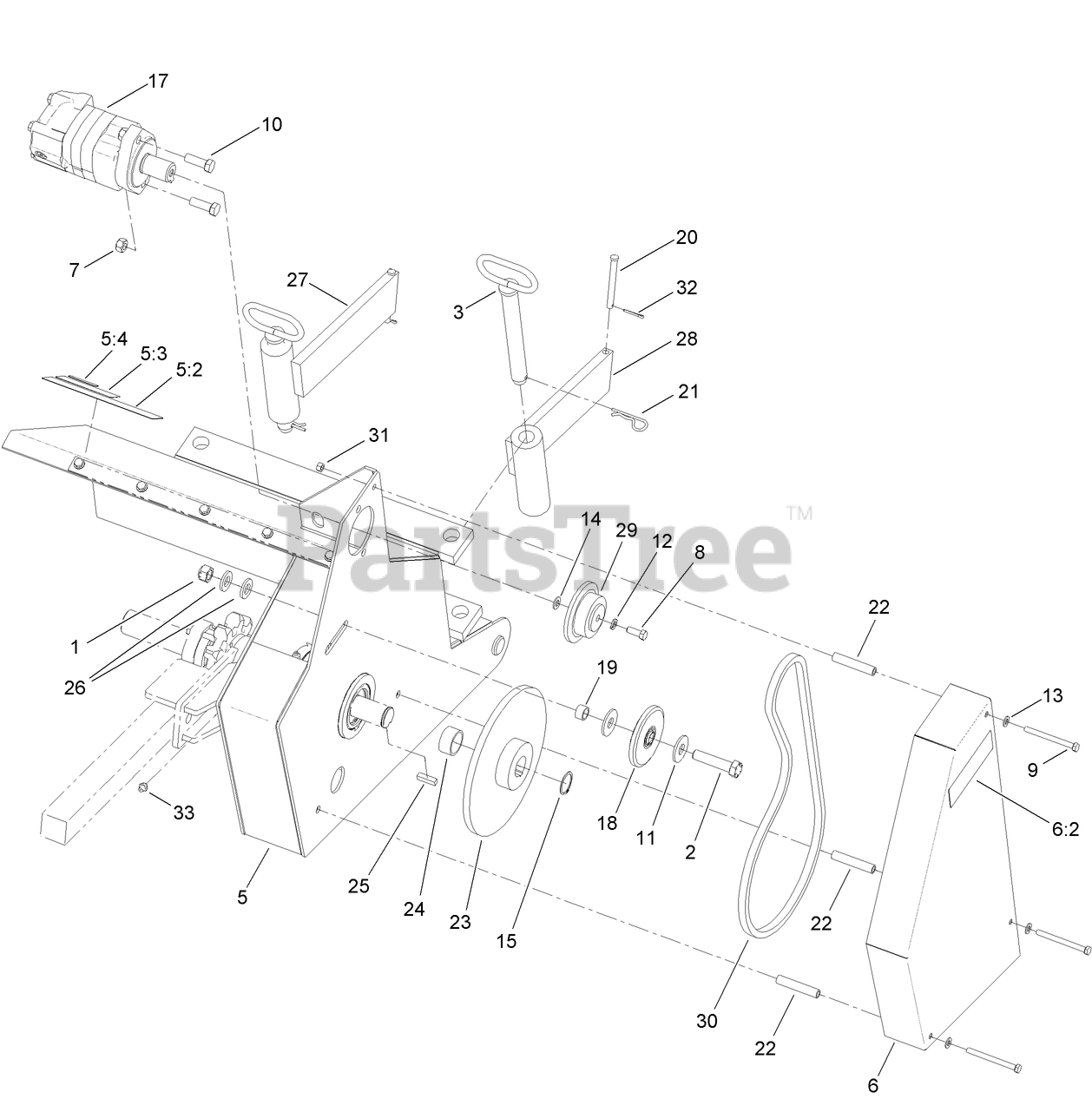

FRAME, BELT AND MOUNTING ARM ASSEMBLY Parts Diagram

  • Title
1

Toro 105-0369

NUT-CROWNLOCK

$7.99

$

Usually ships in 3-6 days

0

2

Toro 110-4614

SCREW-HH

$5.99

$

Usually ships in 3-6 days

0

3

Toro 125-8501

PIN-MOUNTING

$262.99

$

Usually ships in 3-6 days

0

5

Toro 127-1035

FRAME ASM

$3416.99

$

Usually ships in 3-6 days

0

5:2

Toro 125-6670

DECAL-DANGER, ENTANGLEMENT

$4.99

$

Usually ships in 3-6 days

0

5:3

Toro 125-6671

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

5:4

Toro 125-8175

DECAL-GREASE

$1.49

$

In Stock, only 4 left!

0

6

Toro 127-1038

COVER ASM

$371.99

$

Usually ships in 3-6 days

0

6:2

Toro 125-6686

DECAL-WARNING, CHAIN

$

$

Currently unavailable

7

Toro AU230-4218

NUT-LOCK, HEX

$3.49

$

Usually ships in 3-6 days

0

8

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

11

Toro AU495-21069

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

12

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

13

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 32120-84

RING-SNAP, EXTERNAL

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU188974A1

HYD MOTOR ASM

$2163.99

$

Usually ships in 3-6 days

0

18

Toro AU541857R92

IDLER BEARING AND SPROCKET ASM

$137.99

$

Usually ships in 3-6 days

0

19

Toro AUH114140

SPACER-SPROCKET, IDLER

$41.99

$

Usually ships in 3-6 days

0

20

Toro AUH230243

PIN-CLEVIS

$36.99

$

Usually ships in 3-6 days

0

21

Toro AUH32292

PIN-Hair

$1.49

$

Usually ships in 3-6 days

0

22

$54.99

$

Usually ships in 3-6 days

0

23

Toro AUH415554

SPROCKET-HEADSHAFT
(Superseded to AUH415554-03)

$733.99

$

Usually ships in 3-6 days

0

24

$46.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

26

Toro AUH426809

WASHER-FLAT

$24.99

$

Usually ships in 3-6 days

0

27

Toro AUH660175-03

ARM-MOUNTING, RH

$394.99

$

Usually ships in 3-6 days

0

28

Toro AUH660183-03

ARM-MOUNTING, LH

$416.99

$

Usually ships in 3-6 days

0

29

Toro AUH660217

SPROCKET-DRIVE

$526.99

$

Usually ships in 3-6 days

0

30

Toro AUH758862

CHAIN-68P

$156.99

$

Usually ships in 3-6 days

0

31

Toro 32152-1

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 8

0

32

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

33

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 19

0
