25403 - Toro Pro Sneak 365 Vibratory Plow (SN: 400000000 - 401399999) HYDRAULIC PLUMBING ASSEMBLY NO. 2 Parts Diagram

Pro Sneak 365 Vibratory Plow

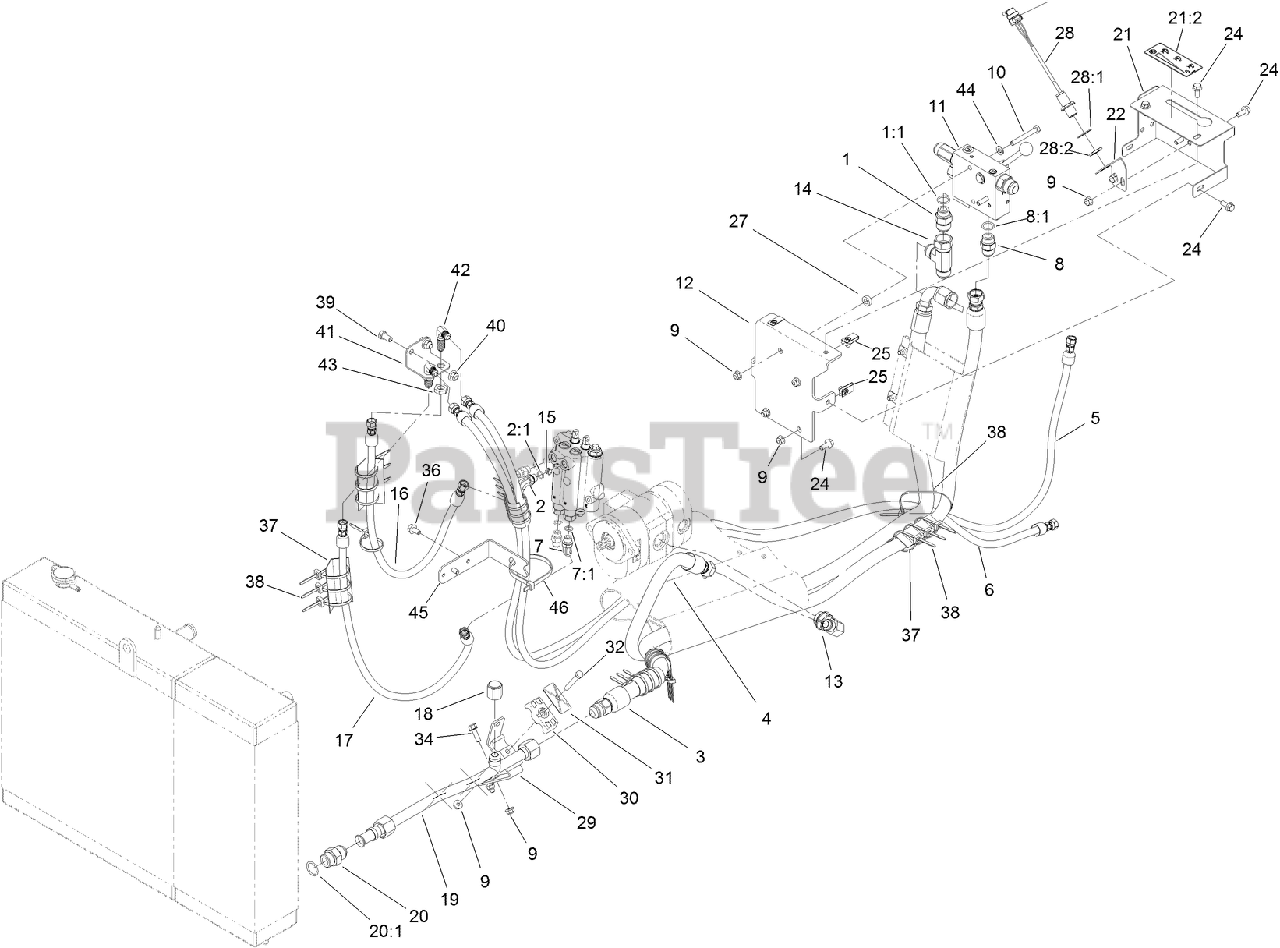

HYDRAULIC PLUMBING ASSEMBLY NO. 2 Parts Diagram

  • Title

1

Toro 01-201-3290

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

1:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

2

Toro 353-374

FITTING-ELBOW, 90 DEG
(Superseded to 103-1802)

$23.99

$

In Stock, only 1 left!

0

2:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

3

Toro 130-4323

HOSE ASM

$260.99

$

Usually ships in 3-6 days

0

4

Toro 127-1004

HOSE ASM

$188.99

$

Usually ships in 3-6 days

0

5

Toro 130-7365

HOSE ASM

$198.99

$

Usually ships in 3-6 days

0

6

Toro 130-7366

HOSE ASM

$184.99

$

Usually ships in 3-6 days

0

7

Toro 353-212

FITTING-ELBOW, 45 DEG

$26.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

8

Toro 353-385

FITTING-STRAIGHT

$25.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 6

0

9

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

10

Toro 120-2812

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

11

Toro 127-6591

VALVE-CONTROL, VIBE PLOW

$1255.99

$

Usually ships in 3-6 days

0

12

Toro 130-4296-01

PLATE-VALVE, PLOW

$107.99

$

Usually ships in 3-6 days

0

13

Toro AU218-5119

ADAPTOR-ELBOW

$33.99

$

Usually ships in 3-6 days

0

14

Toro AU218-5221

FITTING-TEE

$58.99

$

Usually ships in 3-6 days

0

15

Toro AUH757815

ORIFICE

$21.99

$

Usually ships in 3-6 days

0

16

Toro 127-1015

HOSE ASM

$89.99

$

Usually ships in 3-6 days

0

17

Toro 127-1016

HOSE ASM

$88.99

$

Usually ships in 3-6 days

0

18

Toro AU218-756

FITTING-CAP

$6.49

$

Usually ships in 3-6 days

0

19

Toro 130-7354

HYD TUBE ASM

$109.99

$

Usually ships in 3-6 days

0

20

Toro AU218-5064

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

21

Toro 130-4344

COVER PLATE ASM

$155.99

$

Usually ships in 3-6 days

0

21:2

Toro 127-1822

DECAL-VIBE PLOW CONTROL

$

$

Currently unavailable

22

Toro 130-4298

PLATE-SENSOR

$40.99

$

Usually ships in 3-6 days

0

24

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

25

Toro AUH346650

NUT-U TYPE

$2.49

$

Usually ships in 3-6 days

0

27

Toro 104-1156

SPACER

$7.49

$

In Stock, only 2 left!

0

28

Toro 115-5300

PROXIMITY SWITCH ASM

$148.99

$

In Stock, only 1 left!

0

28:1

Toro 117-3207

NUT-HEX

$17.99

$

Usually ships in 3-6 days

0

28:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$11.99

$

Usually ships in 3-6 days

0

29

Toro 130-7364

BRACKET-TUBE

$83.99

$

Usually ships in 3-6 days

0

30

Toro 94-8105

CLAMP-TUBE

$6.99

$

In Stock, only 1 left!

0

31

Toro 69-9761

PLATE-COVER

$10.99

$

Usually ships in 3-6 days

0

32

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

34

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

36

Toro 33104-016

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

37

Toro AU112950

PROTECTOR-HOSE

$29.99

$

Usually ships in 3-6 days

0

38

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

39

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

40

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

41

Toro 130-7368-03

PLATE-BULKHEAD

$65.99

$

Usually ships in 3-6 days

0

42

Toro 130-7370

UNION-BULKHEAD, ELBOW 90

$35.99

$

Usually ships in 3-6 days

0

43

Toro AU218-1254

NUT-LOCK, BULKHEAD

$4.49

$

Usually ships in 3-6 days

0

44

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

45

Toro 130-7423

BRACKET-HOSE

$

$

Currently unavailable

46

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0
