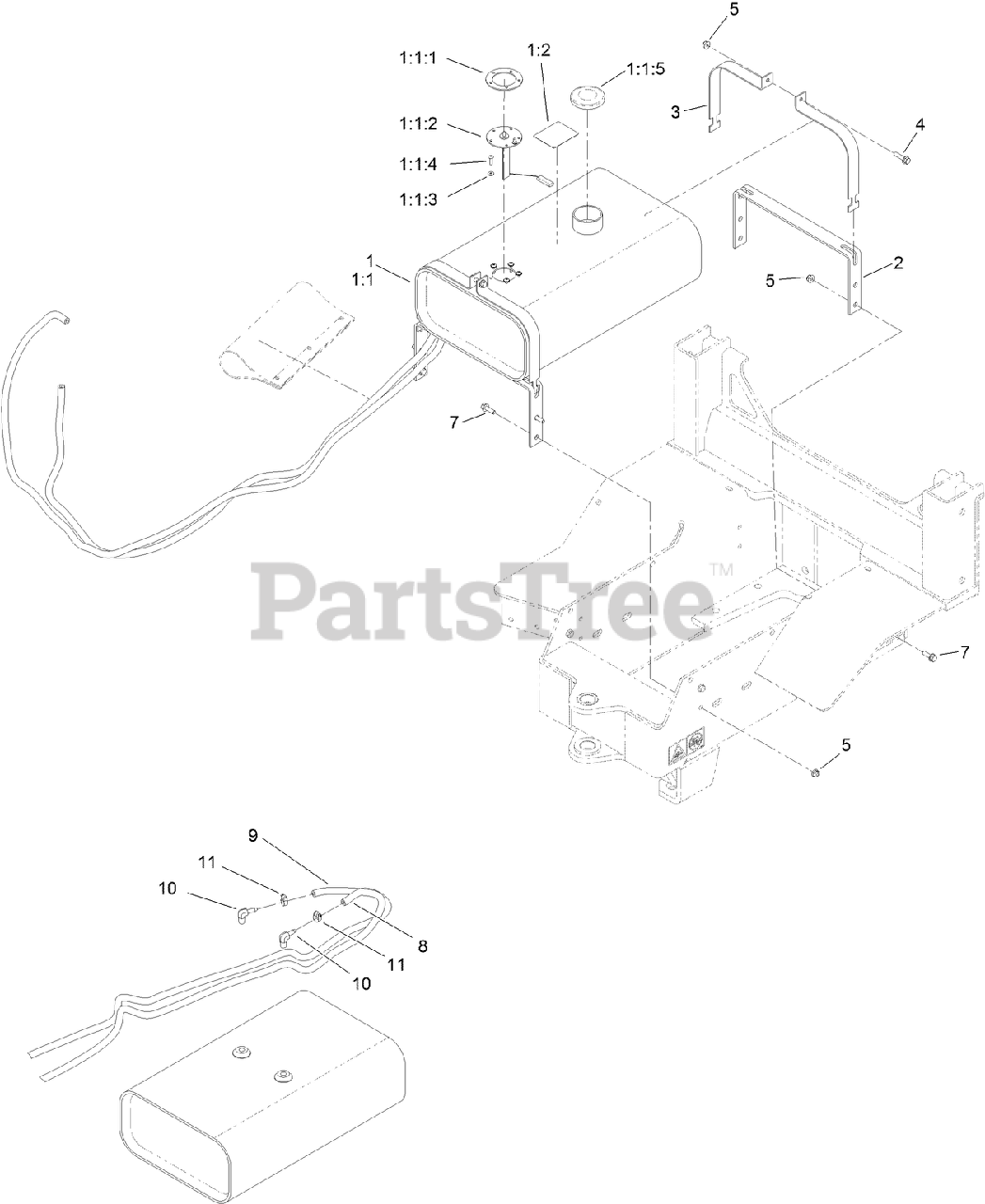

25403 - Toro Pro Sneak 365 Vibratory Plow (SN: 400000000 - 401399999) FUEL TANK ASSEMBLY Parts Diagram

Pro Sneak 365 Vibratory Plow

FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 130-7379

FUEL TANK ASM

$1502.99

$

Usually ships in 3-6 days

0

1:1

TANK-FUEL

Note: Not serviced separately

$

$

Not available

1:1:1

Toro 131-0684

GASKET-FUEL

$6.99

$

Usually ships in 3-6 days

0

1:1:2

Toro 131-0685

FUEL SENDER

$885.99

$

Usually ships in 3-6 days

0

1:1:3

Toro 131-0686

WASHER-SEAL

$3.49

$

Usually ships in 3-6 days

0

1:1:4

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

1:1:5

Toro AU105612

CAP-FUEL

$48.99

$

Usually ships in 3-6 days

0

1:2

Toro 125-6135

DECAL-DIESEL, ULTRA-LOW

$37.99

$

Usually ships in 3-6 days

0

2

Toro AU105629-03

BRACKET-TANK, FUEL

$57.99

$

Usually ships in 3-6 days

0

3

Toro AU105630-03

STRAP-TANK, FUEL

$20.99

$

Usually ships in 3-6 days

0

4

Toro 3234-36

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 3234-17

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

8

Toro 130-4330

HOSE-FUEL

$53.99

$

Usually ships in 3-6 days

0

9

Toro 130-4331

HOSE-FUEL

$59.99

$

Usually ships in 3-6 days

0

10

Toro AU217-294

STEM-90 (BARB HOSE)

$24.99

$

Usually ships in 3-6 days

0

11

Toro 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0
