25403 C - Toro Pro Sneak 365 Vibratory Plow (SN: 314000001 - 314999999) (2014) GROUND DRIVE SPRING ASSEMBLY Parts Diagram

Pro Sneak 365 Vibratory Plow

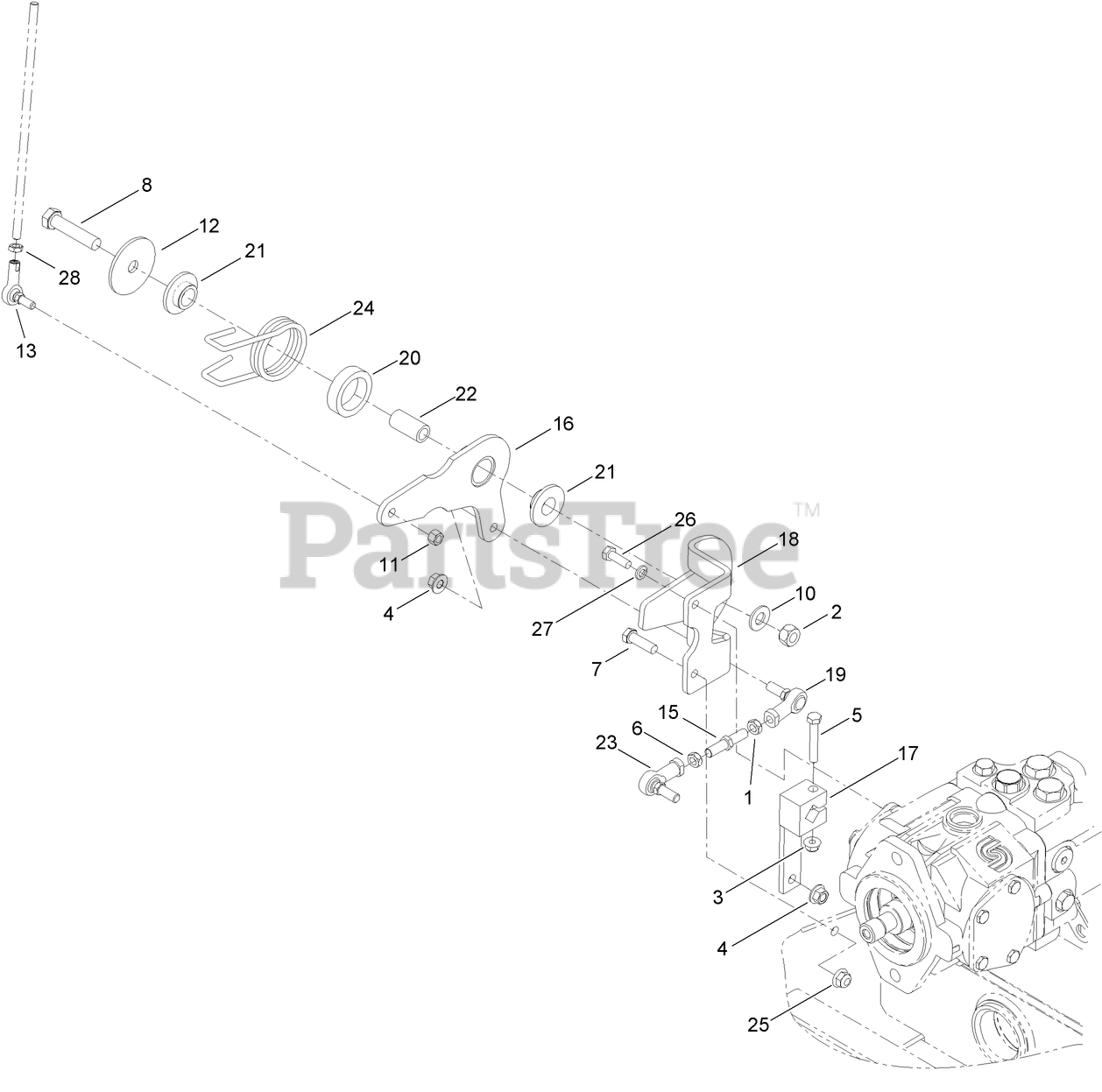

GROUND DRIVE SPRING ASSEMBLY Parts Diagram

  • Title

1

Toro AU129-289

NUT-JAM, LH

$5.99

$

Usually ships in 3-6 days

0

2

Toro AU230-4218

NUT-LOCK, HEX

$3.49

$

Usually ships in 3-6 days

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 127-6852

NUT-FLANGE, LOCK

$2.99

$

In Stock, Qty 20+

0

5

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

6

Toro AU425-156

NUT-JAM, HEX

$1.49

$

Usually ships in 3-6 days

0

7

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

8

Toro AU426-840

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

10

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 32152-5

NUT-HEX

$3.99

$

In Stock, only 2 left!

0

12

Toro AU131967A1

WASHER-FLAT (SPECIAL)

$21.99

$

Usually ships in 3-6 days

0

13

Toro AU103404

JOINT-BALL, LH (FEMALE)

$46.99

$

Usually ships in 3-6 days

0

15

Toro AU107344

SCREW-JACK, CONTROL

$72.99

$

In Stock, only 1 left!

0

16

Toro 131-2132-03

PLATE-LINKAGE

$130.99

$

Usually ships in 3-6 days

0

17

Toro 131-2119-03

LEVER-CONTROL, PUMP

$62.99

$

Usually ships in 3-6 days

0

18

Toro 131-2130-03

PLATE-PUMP

$49.99

$

Usually ships in 3-6 days

0

19

Toro AU139830A1

JOINT-BALL, STUD (ROD END)

$28.99

$

Usually ships in 3-6 days

0

20

Toro AU175086A1

SPACER-COLLAR

$

$

Currently unavailable

21

Toro AUD128616

BUSHING-INSERT, PLASTIC

$28.99

$

Usually ships in 3-6 days

0

22

Toro AUH435694

SPACER

$45.99

$

Usually ships in 3-6 days

0

23

Toro AUR47940

JOINT-BALL

$28.99

$

Usually ships in 3-6 days

0

24

Toro AUH436303

SPRING

$81.99

$

Usually ships in 3-6 days

0

25

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

26

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

27

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

28

Toro 3220-20

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0
