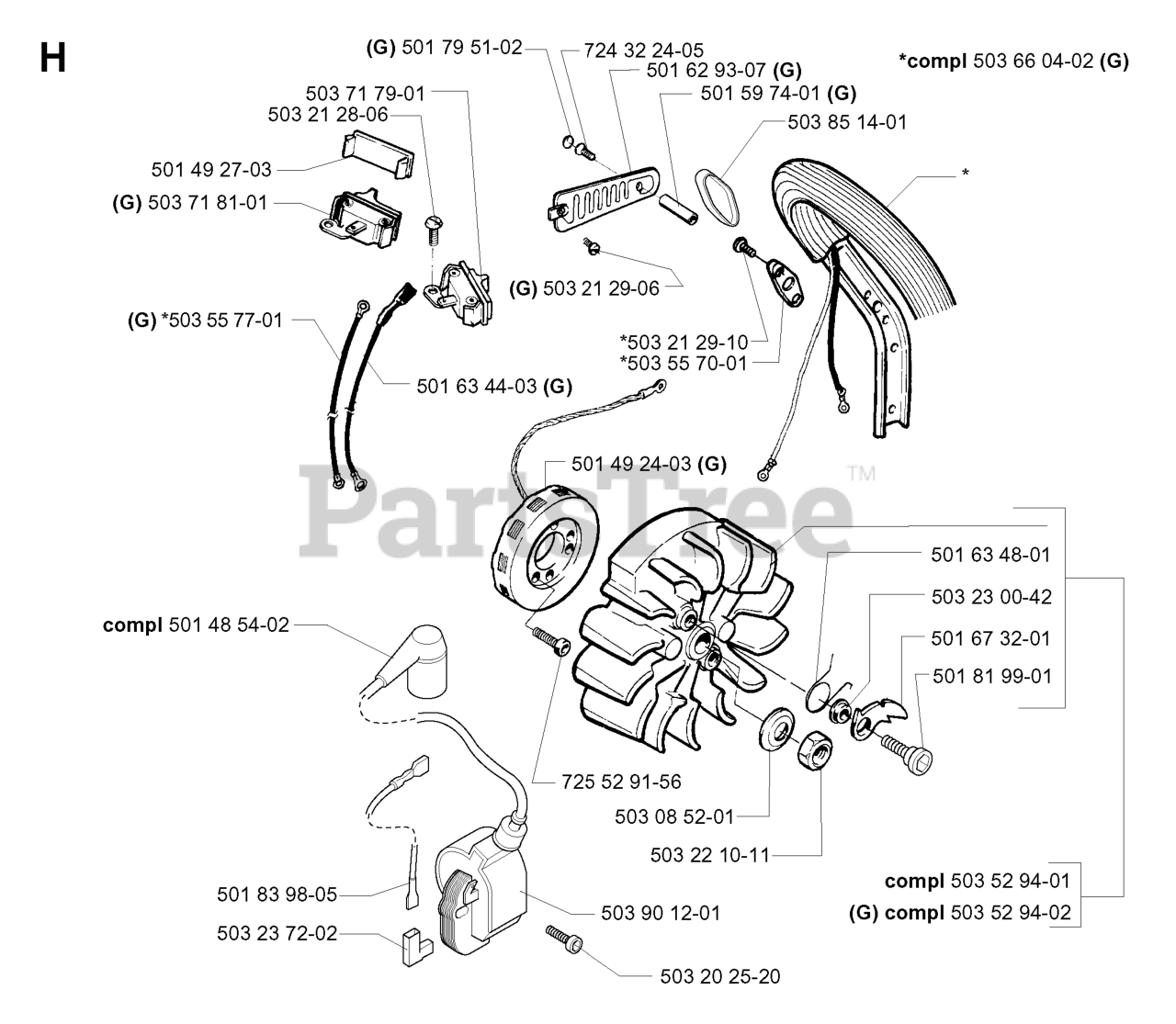

254 - Husqvarna Chainsaw (SN: 20013500001 & Above) ELECTRICAL Parts Diagram

Chainsaw

ELECTRICAL Parts Diagram

  • Title

503 21 28-06

Husqvarna 503212806

SCREW

$6.49

$

Usually ships in 3-10 days

0

501 63 44-03

Husqvarna 501634403

CABLE

Note: G

$

$

Not available

503 85 14-01

Husqvarna 503851401

COVER

$

$

Not available

501 63 48-01

Husqvarna 501634801

SPRING

$4.99

$

In Stock, Qty 20+

0

724 32 24-05

Husqvarna 724322405

SCREW 3X10

$4.99

$

In Stock, Qty 5

0

725 52 91-56

Husqvarna 725529156

SCREW MC6S 4X12
(Superseded to 725529155)

$3.49

$

Usually ships in 3-10 days

0

503 71 81-01

Husqvarna 503718101

SWITCH

Note: G

$17.99

$

Usually ships in 3-10 days

0

503 23 72-02

Husqvarna 503237202

INSULATING CAP

$4.99

$

In Stock, only 1 left!

0

501 67 32-01

Husqvarna 501673201

PAWL

$8.99

$

In Stock, only 4 left!

0

501 81 99-01

Husqvarna 501819901

SCREW M5X14

$6.49

$

In Stock, Qty 8

0

503 21 29-10

Husqvarna 503212910

SCREW

$7.49

$

In Stock, only 1 left!

0

503 20 25-20

Husqvarna 503202520

SCREW

$6.49

$

In Stock, Qty 10

0

503 22 10-11

Husqvarna 503221011

NUT M8X1

$6.49

$

In Stock, only 1 left!

0

503 52 94-02

Husqvarna 503529402

FLYWHEEL

Note: G

$

$

Not available

503 52 94-01

Husqvarna 503529401

FLYWHEEL

$

$

Not available

503 21 29-06

Husqvarna 503212906

SCREW

Note: G

$4.99

$

In Stock, only 4 left!

0

503 90 12-01

Husqvarna 503901201

IGNITION MODULE
(Superseded to 544018301)

$

$

Not available

501 62 93-07

Husqvarna 501629307

HANDLE INSERT ASSY

Note: G

$

$

Not available

503 08 52-01

Husqvarna 503085201

WASHER

$4.99

$

In Stock, only 4 left!

0

501 83 98-05

Husqvarna 501839805

LEAD
(Superseded to 501839801)

$13.99

$

In Stock, only 1 left!

0

503 66 04-02

Husqvarna 503660402

HANDLE LOOP "G"

Note: G

$

$

Not available

501 79 51-02

Husqvarna 501795102

WASHER

Note: G

$3.49

$

In Stock, only 1 left!

0

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, Qty 5

0

501 49 27-03

Husqvarna 501492703

COVER

$5.99

$

In Stock, Qty 6

0

503 71 79-01

Husqvarna 503717901

SWITCH ON/OFF

$17.99

$

In Stock, Qty 8

0

503 23 00-42

Husqvarna 503230042

WASHER

$6.49

$

In Stock, Qty 9

0

501 59 74-01

Husqvarna 501597401

SPACER

Note: G

$

$

Not available

503 55 70-01

Husqvarna 503557001

Switch

$

$

Not available

501 49 24-03

Husqvarna 501492403

GENERATOR

Note: G

$

$

Not available

503 55 77-01

Husqvarna 503557701

Lead

Note: G

$

$

Not available
