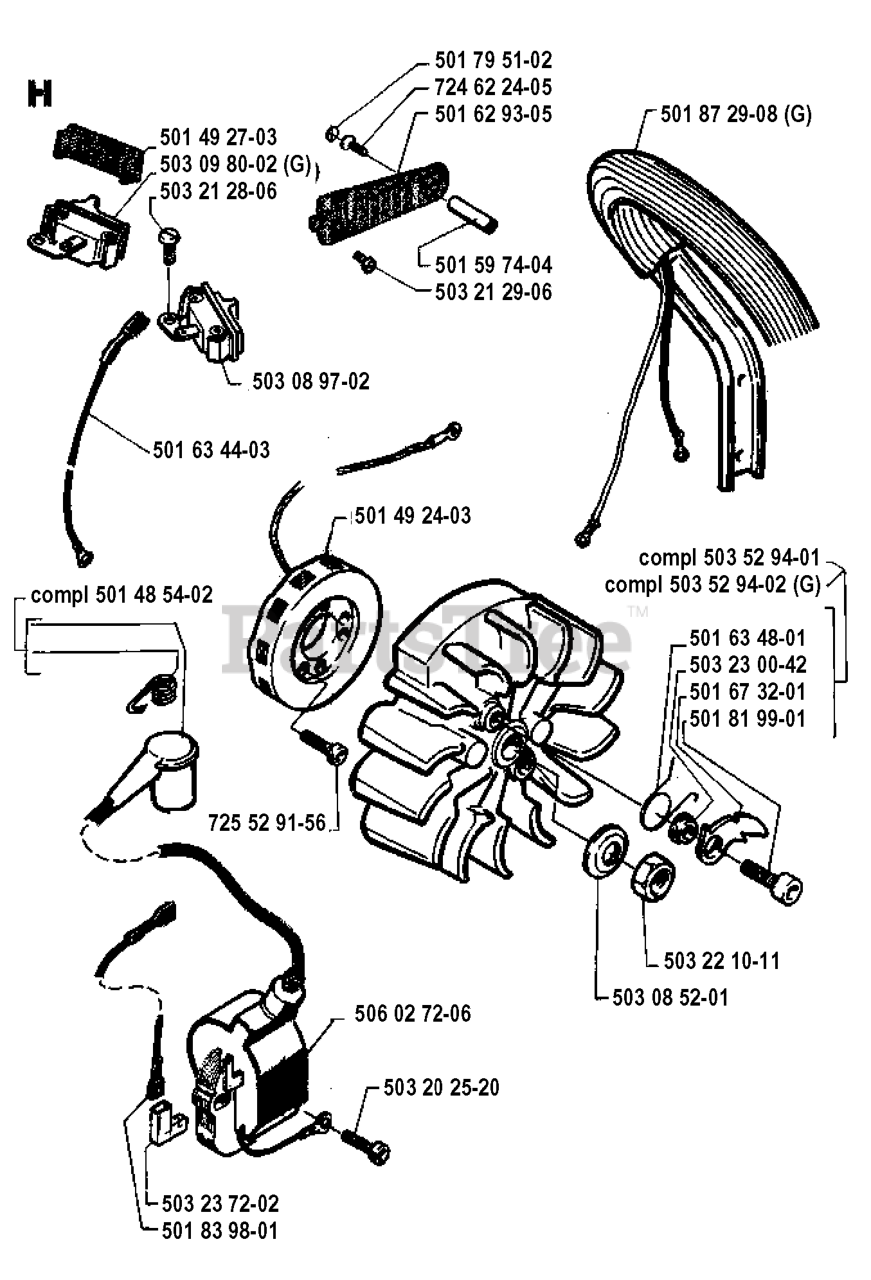

254 - Husqvarna Chainsaw (SN: 19942300001 - 19960100000) ELECTRICAL Parts Diagram

Chainsaw

ELECTRICAL Parts Diagram

  • Title

506 02 72-06

Husqvarna 506027206

IGNITION MODULE
(Superseded to 506027207)

$

$

Not available

503 22 10-11

Husqvarna 503221011

NUT M8X1

$6.49

$

In Stock, only 1 left!

0

503 23 72-02

Husqvarna 503237202

INSULATING CAP

$4.99

$

In Stock, only 1 left!

0

503 23 00-42

Husqvarna 503230042

WASHER

$6.49

$

In Stock, only 2 left!

0

501 67 32-01

Husqvarna 501673201

PAWL

$8.99

$

In Stock, only 2 left!

0

503 08 97-02

Husqvarna 503089702

SWITCH
(Superseded to 503717901)

$17.99

$

In Stock, only 4 left!

0

503 21 29-06

Husqvarna 503212906

SCREW

$4.99

$

In Stock, only 4 left!

0

503 52 94-02

Husqvarna 503529402

FLYWHEEL

Note: G

$

$

Not available

501 81 99-01

Husqvarna 501819901

SCREW M5X14

$6.49

$

In Stock, Qty 5

0

501 49 27-03

Husqvarna 501492703

COVER

$5.99

$

In Stock, Qty 6

0

501 63 48-01

Husqvarna 501634801

SPRING

$4.99

$

In Stock, Qty 14

0

501 59 74-04

Husqvarna 501597404

SPACER

$

$

Not available

503 09 80-02

Husqvarna 503098002

SWITCH
(Superseded to 503718101)

Note: G

$17.99

$

Usually ships in 3-10 days

0

501 87 29-08

Husqvarna 501872908

FRONT HANDLE G
(Superseded to 503660402)

Note: G

$

$

Not available

725 52 91-56

Husqvarna 725529156

SCREW MC6S 4X12
(Superseded to 725529155)

$3.49

$

Usually ships in 3-10 days

0

503 52 94-01

Husqvarna 503529401

FLYWHEEL

$

$

Not available

503 08 52-01

Husqvarna 503085201

WASHER

$4.99

$

In Stock, only 4 left!

0

724 62 24-05

Husqvarna 724622405

$

$

Currently unavailable

501 79 51-02

Husqvarna 501795102

WASHER

$3.49

$

In Stock, only 1 left!

0

501 83 98-01

Husqvarna 501839801

SHORTING LEAD

$13.99

$

In Stock, only 1 left!

0

503 21 28-06

Husqvarna 503212806

SCREW

$6.49

$

In Stock, only 1 left!

0

501 49 24-03

Husqvarna 501492403

GENERATOR

$

$

Not available

501 63 44-03

Husqvarna 501634403

CABLE

$

$

Not available

503 20 25-20

Husqvarna 503202520

SCREW

$6.49

$

In Stock, Qty 8

0

501 48 54-02

Husqvarna 501485402

SPARK PLUG CONN. KIT

$13.99

$

In Stock, Qty 5

0

501 62 93-05

Husqvarna 501629305

HANDLE CIRCUIT

$

$

Not available
