254 - Husqvarna Chainsaw (SN: 19924000001 - 19942300000) FUEL TANK & HANDLE Parts Diagram

Chainsaw

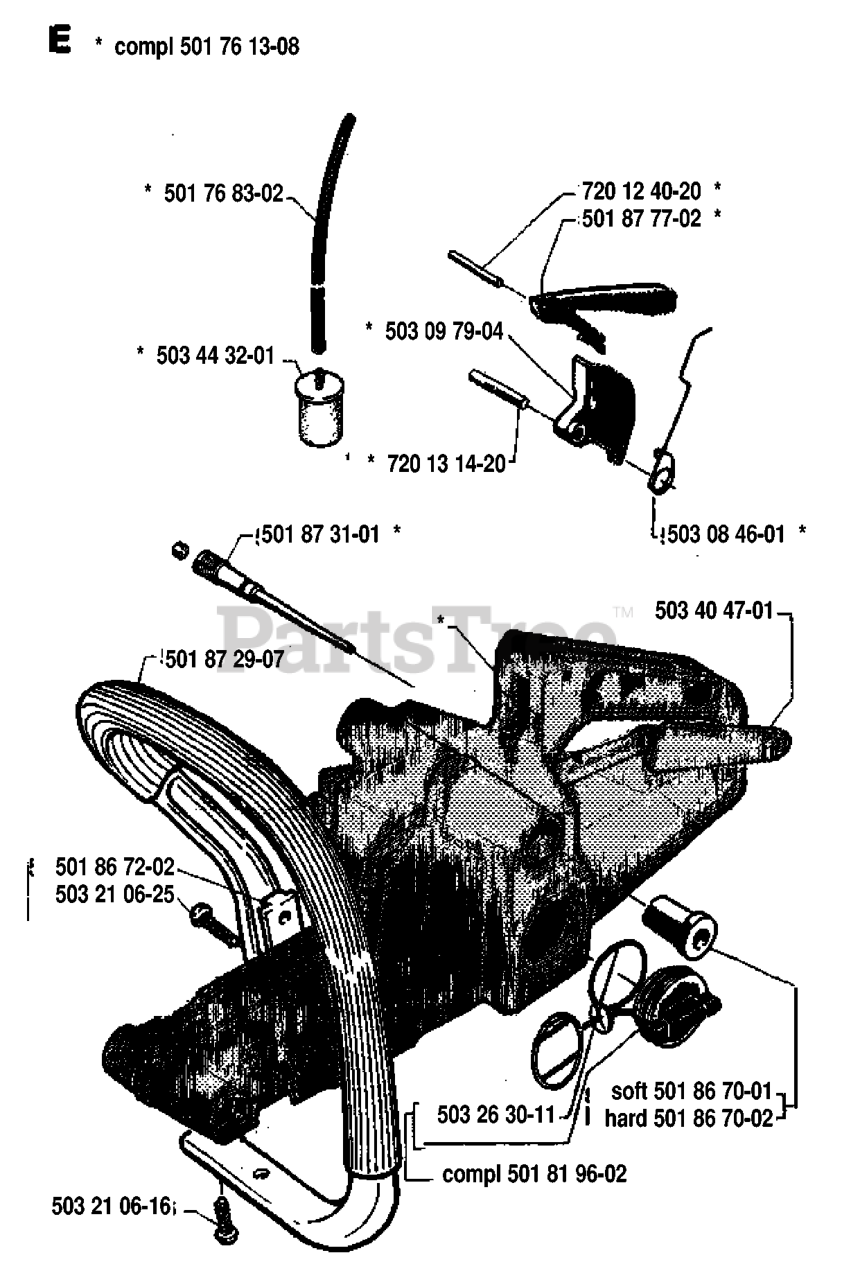

FUEL TANK & HANDLE Parts Diagram

  • Title

503 44 32-01

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

720 13 14-20

Husqvarna 720131420

PARALLEL PIN 5X30
(Superseded to 720131520)

$

$

Not available

720 12 40-20

Husqvarna 720124020

PIN 3X25
(Superseded to 720182520)

$2.99

$

In Stock, Qty 20+

0

501 87 29-07

Husqvarna 501872907

FRONT HANDLE

$69.99

$

Usually ships in 3-10 days

0

501 87 31-01

Husqvarna 501873101

FUEL TANK VENT

$13.99

$

In Stock, Qty 5

0

501 86 70-02

Husqvarna 501867002

ANTIVIBE ELEMENT

Note: HARD

$7.99

$

Usually ships in 3-10 days

0

503 08 46-01

Husqvarna 503084601

SPRING

$

$

Not available

501 86 70-01

Husqvarna 501867001

ANTIVIBE ELEMENT
(Superseded to 501867002)

Note: SOFT

$7.99

$

Usually ships in 3-10 days

0

503 21 06-16

Husqvarna 503210616

SCREW
(Superseded to 503214972)

$10.99

$

In Stock, Qty 20+

0

503 26 30-11

Husqvarna 503263011

O-RING
(Superseded to 503263017)

$8.99

$

In Stock, Qty 18

0

503 09 79-04

Husqvarna 503097904

LEVER

$12.99

$

In Stock, only 1 left!

0

501 86 72-02

Husqvarna 501867202

Spacer

$

$

Not available

501 76 83-02

Husqvarna 501768302

FUEL HOSE
(Superseded to 581756103)

$5.99

$

Usually ships in 3-10 days

0

501 81 96-02

Husqvarna 501819602

FUEL/OIL CAP
(Superseded to 537215207)

$11.99

$

In Stock, Qty 6

0

503 40 47-01

Husqvarna 503404701

HANDLE FILLER

$5.99

$

In Stock, only 3 left!

0

501 87 77-02

Husqvarna 501877702

THROTTLE CATCH

$10.99

$

Usually ships in 3-10 days

0

503 21 06-25

Husqvarna 503210625

SCREW
(Superseded to 503214925)

$4.99

$

In Stock, Qty 8

0

501 76 13-08

Husqvarna 501761308

TANK KPL
(Superseded to 501761310)

$

$

Not available
